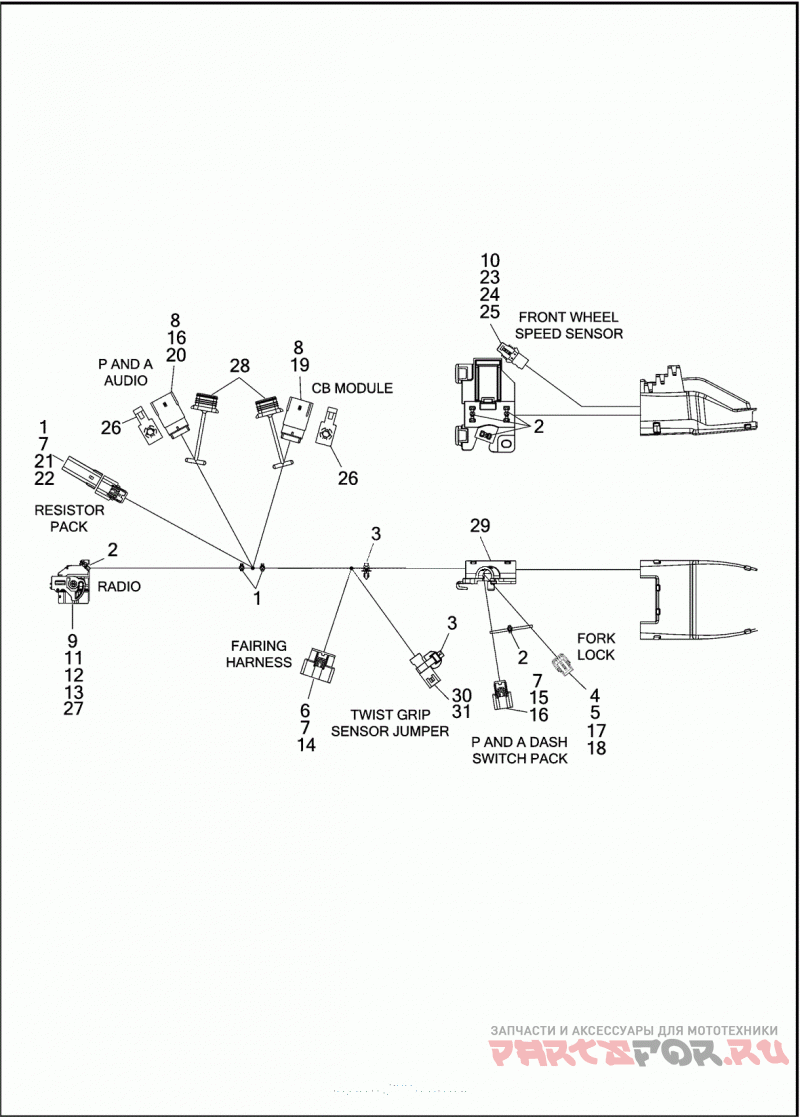

WIRING HARNESS, MAIN (2 OF 8)

Harley Davidson FLHXSE 1PXF CVO STREET GLIDE (2017)

Harley Davidson
#oem кодцена
69201556
Деталь MAIN WIRING HARNESS
1
10006
Деталь CABLE STRAP
2
10065
Деталь CABLE STRAP
3
10177
Деталь CABLE STRAP ANCHORED
4
72066-06A
Деталь HOUSING FOUR-WAY SOCKET (BLACK)
5
72135-06
Деталь SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
6
72166-07BK
Деталь HOUSING 16-WAY SOCKET (BLACK)
7
72168-07
Деталь TERMINAL SOCKET, 18-20 AWG
8
72169-07
Деталь TERMINAL PIN, 16-20 AWG
9
72209-11
Деталь COVER WIRE DRESS
10
72213-94
Деталь TERMINAL SOCKET, 16-20 AWG
11
72222-11
Деталь TERMINAL SOCKET, 18-20 AWG
12
72226-11
Деталь TERMINAL SOCKET, 14-16 AWG
13
72256-11
Деталь SEAL PIN
14
72272-07
Деталь TERMINAL SOCKET, 14-16 AWG
15
72414-07BK
Деталь HOUSING SIX-WAY SOCKET (BLACK)
16
72473-07
Деталь SEAL PIN
17
72484-08
Деталь TERMINAL SOCKET, 20 AWG
18
72486-08
Деталь WIRE SEAL 20 AWG (GREEN)
19
72488-07BK
Деталь HOUSING 12-WAY PIN (BLACK)
20
72490-07GY
Деталь HOUSING 12-WAY PIN (GRAY)
21
72512-07BK
Деталь HOUSING THREE-WAY SOCKET (BLACK)
22
72519-09BK
Деталь PLUG WEATHER, THREE-WAY SOCKET
23
72606-08
Деталь HOUSING TWO-WAY SOCKET (BLACK)
24
72639-10
Деталь SECONDARY LOCK TWO-WAY SOCKET
25
72610-08
Деталь WIRE SEAL 18-20 AWG (WHITE)
26
73213-07
Деталь RETAINER ANCHORED
27
69200193
Деталь HOUSING 48-WAY SOCKET (BLACK)
28
69200205
Деталь WEATHER PLUG 12-WAY PIN
29
69200215
Деталь CADDY RIGHT STEER HEAD
30
69201163
Деталь HOUSING SIX-WAY PIN (BLACK)
31
69201164
Деталь TERMINAL PIN, 22 AWG
