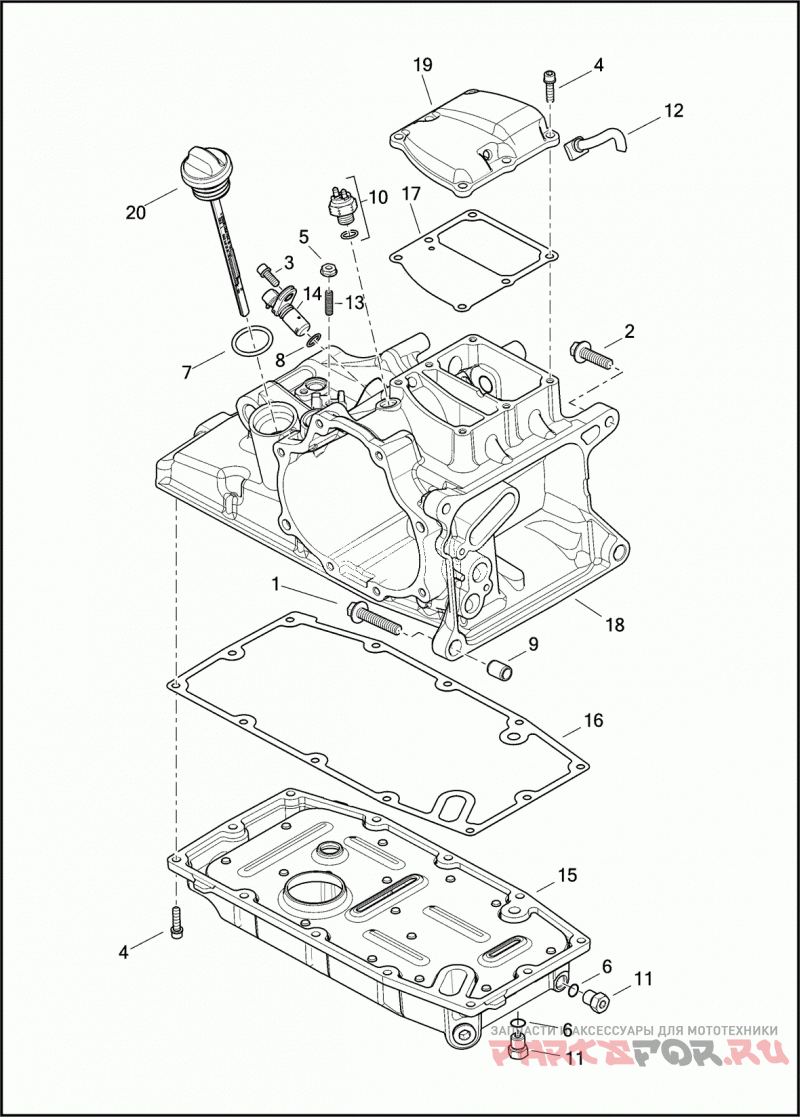

TRANSMISSION HOUSING, COVER AND OIL PAN

Harley Davidson FLHXSE 1PXF CVO STREET GLIDE (2017)

Harley Davidson
#oem кодцена
1
3699D
SCREW 3/8-16 X 2.0 HEX FLANGE HD. (GRADE 8)
2
3983
SCREW 3/8-16 X 1-5/8 HEX FLANGE HD., W/WASHER (GRADE 8)
3
4705
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH
4
4741A
SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
5
7792
NUT 1/4-20 X 1/4 (GRADE 2)
6
11105
Уплотнительное кольцо
7
11120
Уплотнительное кольцо
8
11289A
Уплотнительное кольцо
9
16574-99A
Палец
10
33926-06B
SWITCH NEUTRAL INDICATOR, WITH O-RING
11
60328-98B
PLUG MAGNETIC, WITH 11105
12
62372-09
VENT HOSE TRANSMISSION
13
66290-06
STUD GROUND
14
74402-05B
SPEED SENSOR WITH 11289A
15
24400180
OIL PAN ASSEMBLY WITH 60328-98B AND 62700138 (BLACK)
16
25700452
GASKET OIL PAN
17
25700453
GASKET UPPER COVER
18
34700084
TRANSMISSION CASE SUBASSEMBLY WITH 3594, 8963, 8967A, 9701A, 11161, 12074, 16574-99A, 35082-07, 35122-06A, 35186-06, 35241-06, 35242-06, 66290-06, 11000101 AND 35000152 (BLACK)
18
34700092
TRANSMISSION CASE SUBASSEMBLY WITH 3594, 8963, 8967A, 9701A, 11161, 12074, 16574-99A, 35082-07, 35122-06A, 35186-06, 35241-06, 35242-06, 66290-06, 11000101 AND 35000152 (BLACK GRANITE)
19
34800025
TRANSMISSION COVER TOP, WITH 62372-09 (CHROME)
19
34800031
TRANSMISSION COVER TOP, WITH 62372-09 (GLOSS BLACK)
20
62700198
DIPSTICK ASSEMBLY WITH 11120 (CHROME CAP)
