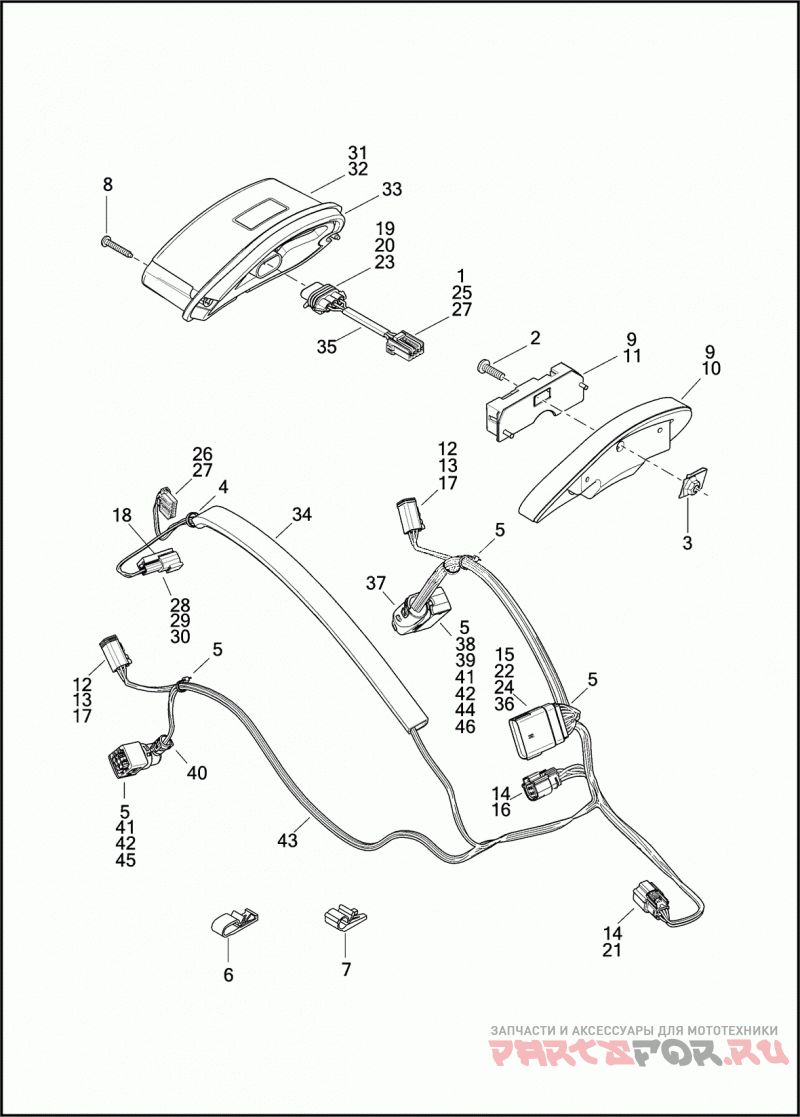

TAIL LAMP (CANADA)

Harley Davidson FLHXSE 1PXF CVO STREET GLIDE (2017)

Harley Davidson
#oem кодцена
1
5118
SEAL PIN
2
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
3
7964
J-NUT
4
10006
CABLE STRAP
5
10065
CABLE STRAP
6
10183
CLIP T-STUD
7
10184
CLIP T-STUD
8
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
9
68066-99A
TAIL LAMP BASE ASSEMBLY WITH 68296-99A AND 68830-99A
10
68296-99A
TAIL LAMP BASE (CHROME)
11
68830-99A
CIRCUIT BOARD AND COVER
12
72114-94BK
HOUSING FOUR-WAY SOCKET (BLACK)
13
72154-94
SECONDARY LOCK FOUR-WAY SOCKET (ORANGE)
14
72168-07
TERMINAL SOCKET, 18-20 AWG
15
72169-07
TERMINAL PIN, 16-20 AWG
16
72177-07BK
HOUSING FOUR-WAY SOCKET (BLACK)
17
72191-94
TERMINAL SOCKET, 16-18 AWG
18
72199-94
ANCHOR T-STUD
19
72213-94
TERMINAL SOCKET, 16-20 AWG
20
72230-98
HOUSING THREE-WAY SOCKET (BLACK)
21
72414-07BK
HOUSING SIX-WAY SOCKET (BLACK)
22
72473-07
SEAL PIN
23
72610-08
WIRE SEAL 18-20 AWG (WHITE)
24
73213-07
RETAINER ANCHORED
25
73154-96BK
HOUSING FOUR-WAY SOCKET (BLACK)
26
73156-96BK
HOUSING SIX-WAY SOCKET (BLACK)
27
73191-96
TERMINAL SOCKET, 16-20 AWG
28
74102-98BK
HOUSING TWO-WAY PIN (BLACK)
29
74142-98
SECONDARY LOCK TWO-WAY PIN (ORANGE)
30
74190-98
TERMINAL PIN, 16-20 AWG
31
67800317
LAMP ASSEMBLY WITH 68026-99, 67800424, 69200599
32
67800424
Линза
33
67800428
Прокладка
34
69200018
CONDUIT SELF-ADHESIVE, 50 FT
35
69200599
JUMPER HARNESS
36
69200984
HOUSING 20-WAY PIN (BLACK)
37
69201374
COVER 90 DEGREE, 16-WAY
38
69201377
WIRE SEAL 20-22 AWG (GRAY)
39
69201379
SEAL PIN
40
69201382
COVER 90 DEGREE, FOUR-WAY
41
69201385
TERMINAL SOCKET, 18-20 AWG
42
69201412
WIRE SEAL 16-18 AWG (YELLOW)
43
69201560
HARNESS REAR LIGHTING
44
69201575
HOUSING 18-WAY SOCKET
45
69201577
HOUSING FOUR-WAY SOCKET
46
69201591
TERMINAL SOCKET, 16 AWG
