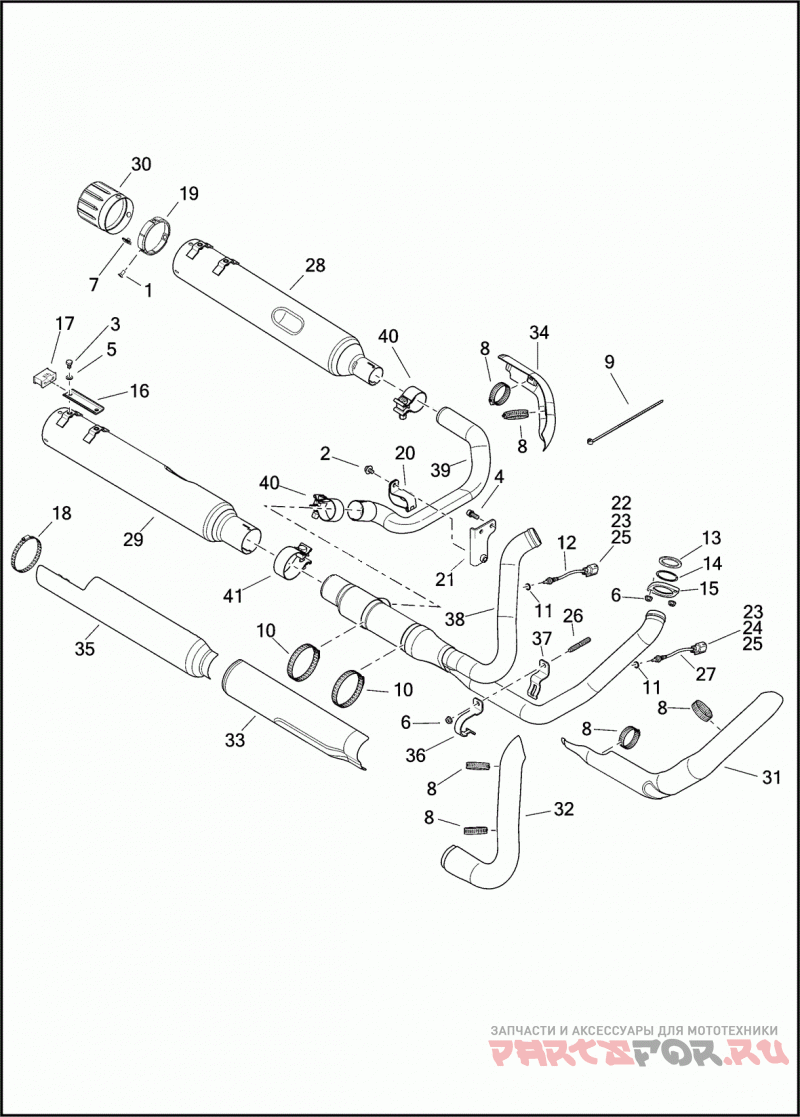

Глушитель

Harley Davidson FLHXSE 1PXF CVO STREET GLIDE (2017)

Harley Davidson
#oem кодцена
1
10200384
SCREW 1/4-20 X 1/2 HEX SOCKET HD. (STAINLESS)
2
10200569
хомут
3
3929
SCREW 5/16-18 X 1/2 HEX HD.
4
4705
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH
5
7041
LOCKWASHER 5/16
6
7593
NUT 5/16-24 FLANGE
7
8146
NUT CLIP
8
9955
CLAMP WORM DRIVE #24
9
10039
CABLE STRAP
10
10074
CLAMP WORM DRIVE #48
11
11936
GASKET OXYGEN (O2) SENSOR
12
27809-10
SENSOR OXYGEN (O2), REAR, WITH 11936, 72177-07BK, 72344-10 AND 73307-10
13
65324-83B
GASKET EXHAUST PORT
14
65325-83A
RETAINING RING EXHAUST GASKET
15
65328-83A
CLAMP EXHAUST MANIFOLD
16
65723-85
MOUNTING BRACKET
17
65724-85A
MOUNT RUBBER
18
66047-05
CLAMP WORM
19
66078-06
RING RETENTION
20
66861-09A
CLAMP EXHAUST PIPE, HINGED
21
66881-09
BRACKET EXHAUST PIPE HANGER
22
72177-07BK
HOUSING FOUR-WAY SOCKET (BLACK)
23
72344-10
TERMINAL SOCKET, 22 AWG (GOLD)
24
72444-07GY
HOUSING FOUR-WAY, SOCKET (GRAY)
25
73307-10
TERMINAL SOCKET, 22 AWG
26
10900015
STUD EXHAUST
27
32700046
SENSOR OXYGEN (O2), FRONT, WITH 11936, 72344-10, 72444-07GY AND 73307-10
28
64900256
MUFFLER (LEFT) (CHROME) (DOMESTIC, CANADA, CALIFORNIA)
28
64900254
MUFFLER (LEFT) (CHROME) (ASIA-PACIFIC, BRAZIL)
28
64900252
MUFFLER ASSEMBLY (LEFT) (CHROME) (AUSTRALIA, ENGLAND, HDI, JAPAN)
29
64900257
MUFFLER (RIGHT) (CHROME) (DOMESTIC, CANADA, CALIFORNIA)
29
64900255
MUFFLER (RIGHT) (CHROME) (ASIA-PACIFIC, BRAZIL)
29
64900253
MUFFLER ASSEMBLY (RIGHT) (CHROME) (AUSTRALIA, ENGLAND, HDI, JAPAN)
30
65100058
END CAP (CHROME)
30
65100059
END CAP (BLACK)
31
65400176
SHIELD EXHAUST PIPE, FRONT
32
65400177
EXHAUST SHIELD ASSEMBLY REAR HEADER PIPE
33
65400178
EXHAUST SHIELD ASSEMBLY CATALYTIC CONVERTER
34
65400179
SHIELD LEFT EXHAUST PIPE, REAR
35
65400294
HEAT SHIELD MUFFLER (RIGHT)
35
65400293
HEAT SHIELD MUFFLER (LEFT) (NOT SHOWN)
36
65500042
BRACKET MUFFLER STRAP, MALE
37
65500043
BRACKET MUFFLER STRAP, FEMALE
38
65600176
HEADER ASSEMBLY CATALYTIC (DOMESTIC, CANADA, CALIFORNIA) (CHROME)
38
65600177
HEADER ASSEMBLY CATALYTIC (AUSTRALIA, ENGLAND, JAPAN, HDI, ASIA-PACIFIC, BRAZIL) (CHROME)
39
65600178
CROSSOVER PIPE ASSEMBLY (CHROME)
40
65900012
CLAMP MUFFLER
41
65900015
CLAMP MUFFLER
