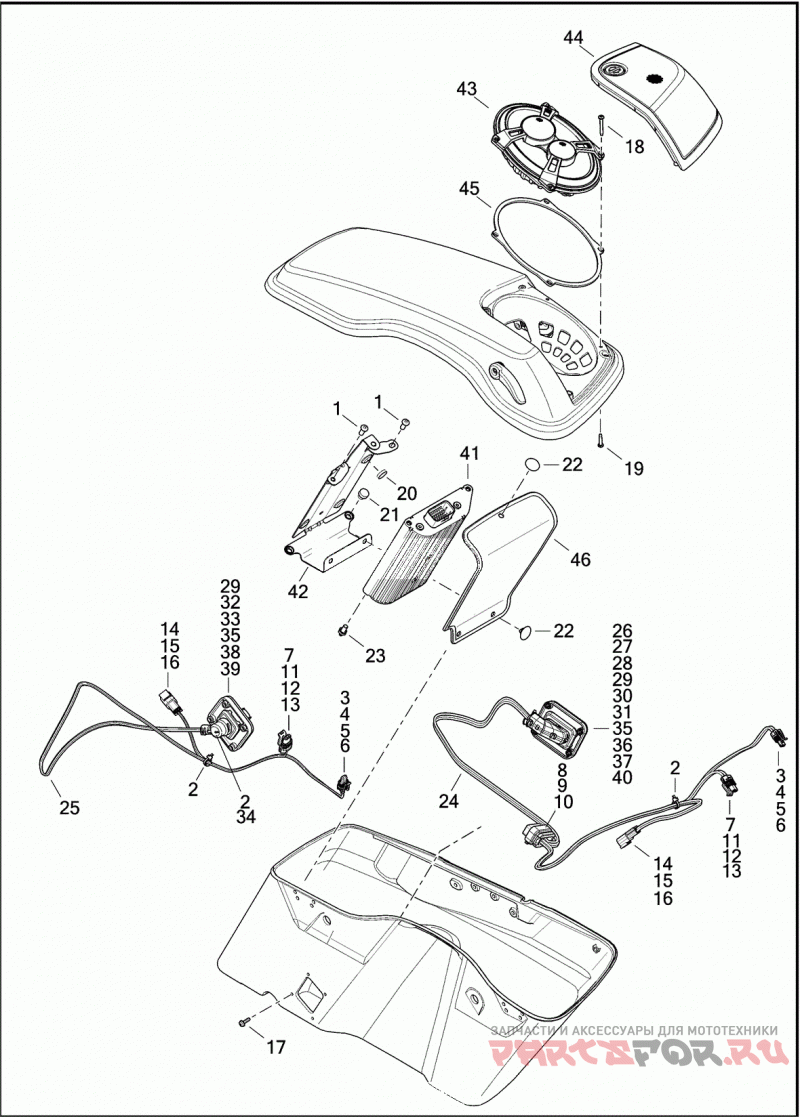

SOUND SYSTEM (2 OF 3)

Harley Davidson FLHXSE 1PXF CVO STREET GLIDE (2017)

Harley Davidson
#oem кодцена
1
926
BOLT 1/4-20 X 5/8 BUTTON HD.
2
10065
CABLE STRAP
3
72063-06
HOUSING TWO-WAY SOCKET (BLACK)
4
72094-06
TERMINAL SOCKET, 18 AWG
5
72096-06
WIRE SEAL 18 AWG (YELLOW)
6
72111-06
SECONDARY LOCK TWO-WAY SOCKET (GRAY)
7
72213-94
TERMINAL SOCKET, 16-20 AWG
8
72381-98
TERMINAL SOCKET, 16-20 AWG
9
72382-98BK
HOUSING 23-WAY SOCKET (BLACK)
10
72397-98
SEAL PIN
11
72606-08
HOUSING TWO-WAY SOCKET (BLACK)
12
72609-08
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
13
72610-08
WIRE SEAL 18-20 AWG (WHITE)
14
74102-98BK
HOUSING TWO-WAY PIN (BLACK)
15
74142-98
SECONDARY LOCK TWO-WAY PIN
16
74190-98
TERMINAL PIN, 16-20 AWG
17
10200065
SCREW NO. 8-32 X 5/8 TORX SEMS PAN HD., W/ LOCKPATCH (STAINLESS)
18
10200095
SCREW NO. 8-18 X 1-1/4 TORX BUTTON HD.
19
10200351
SCREW NO. 8-18 X 3/4 TORX BUTTON HD.
20
11100071
Подушка изолирующая
21
12100052
Уплотнитель резиновый
22
12600068
CLIP RETAINER
23
12600087
Шпилька
24
69201561
WIRE HARNESS REAR SPEAKER (LEFT)
25
69201562
WIRE HARNESS REAR SPEAKER (RIGHT)
26
69201574
HOUSING 18-WAY PIN (BLACK)
27
69201373
FLANGE LOCK 16-WAY
28
69201374
COVER 90 DEGREE
29
69201375
TERMINAL PIN, 18-22 AWG
30
69201377
WIRE SEAL 20-22 AWG (GRAY)
31
69201379
SEAL PIN
32
69201576
HOUSING SIX-WAY PIN (BLACK)
33
69201381
FLANGE LOCK FOUR-WAY
34
69201382
COVER 90 DEGREE, FOUR-WAY
35
69201412
WIRE SEAL 16-18 AWG (YELLOW)
36
69201418
CONNECTOR PANEL MOUNT GASKET (LEFT)
37
69201419
CONNECTOR MOUNT PLATE (LEFT)
38
69201420
CONNECTOR PANEL MOUNT GASKET (RIGHT)
39
69201421
CONNECTOR MOUNT PLATE (RIGHT)
40
69201592
TERMINAL PIN, 16 AWG
41
76000277A
AMPLIFIER
42
76000282A
BRACKET WITH 11100071 AND 12100052
43
76000333
SPEAKER ASSEMBLY WITH 76000485
44
76000417
GRILLE ASSEMBLY (LEFT)
44
76000418
GRILLE ASSEMBLY (RIGHT)
45
76000485
Прокладка
46
76000502
Крышка
