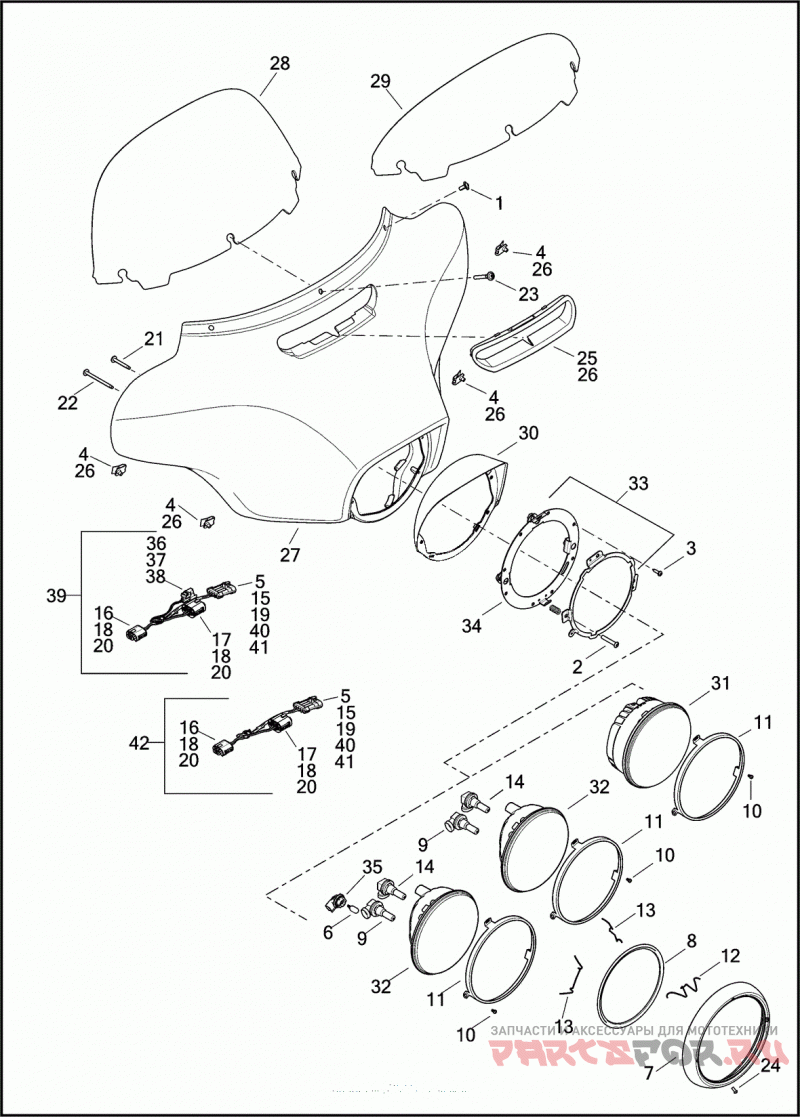

WINDSHIELD, FAIRING AND HEADLAMP - FLHTCU, FLHTK, FLHTKL, FLHX AND FLHXS

Harley Davidson FLHXS 1KRC STREET GLIDE SPECIAL (2017)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
3088
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (CHROME)
3
4790
SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING
4
7900
CLIP NUT 1/4-20
5
10147
CLIP CONNECTOR
6
53436-97
BULB POSITION LAMP (HDI)
7
67712-83B
TRIM RING HEADLAMP
8
67716-60C
GASKET HEADLAMP DOOR
9
67717-01
BULB HIGH BEAM HALOGEN
10
67721-48
SCREW HEADLAMP RETAINER RING
11
67726-08
RETAINING RING HEADLAMP
12
67778-60A
SPRING TRIM RING, HEADLAMP, TOP
13
67780-60A
SPRING TRIM RING, HEADLAMP, BOTTOM
14
68881-01
BULB LOW BEAM HALOGEN
15
72214-94
WIRE SEAL 14-16 AWG (DARK RED)
16
72449-01
HOUSING TWO-WAY SOCKET (BLACK)
17
72450-01
HOUSING TWO-WAY SOCKET (GRAY)
18
72527-01
TERMINAL SOCKET, 18-20 AWG
19
72608-08
TERMINAL PIN, 16-20 AWG
20
72633-02
WIRE SEAL 14-16 AWG (WHITE)
21
10200059
SCREW 1/4-20 X 1-11/16 TORX SOCKET BUTTON HD. MATPOINT (GRADE 5) (BLACK)
22
10200060
SCREW 1/4-20 X 2-5/8 TORX SOCKET BUTTON HD. MATPOINT (GRADE 5) (BLACK)
23
10200112
SCREW 1/4-20 X 2 TORX BUTTON HD. SEMS (GRADE 5) (BLACK)
24
10200156
SCREW NO. 8-32 X 3/8 PHILLIPS ROUND HD. (STAINLESS STEEL)
25
29200007
BEZEL AIR DUCT, OUTER FAIRING
26
57000377
KIT, HARDWARE FAIRING, WITH 7900 AND 29200007
27
57000383
FAIRING OUTER, WITH 57000377 (UNFINISHED)
29
57400003
WIND DEFLECTOR (SMOKED) (DOMESTIC)
29
57400004
WIND DEFLECTOR (SMOKED) (HDI, ENGLAND, JAPAN)
29
57400058
WIND DEFLECTOR (CLEAR) (ASIA-PACIFIC)
30
61400135
TRIM HEADLAMP
31
67700062
HEADLAMP ASSEMBLY DUAL HALOGEN, WITH 67717-01 AND 68881-01 (DOMESTIC)
31
67700065
HEADLAMP ASSEMBLY DUAL HALOGEN, WITH 53436-97, 67717-01, 68881-01 AND 68000038 (HDI)
32
67700204
MOUNTING RING ASSEMBLY HEADLAMP, WITH 3088 AND 67700205
33
67700205
MOUNTING RING HEADLAMP
35
68000038
CONNECTOR POSITION LAMP, 90 DEGREE (HDI)
36
69200220
HOUSING TWO-WAY SOCKET (BLACK) (HDI)
37
69200221
TERMINAL SOCKET, 18-20 AWG (HDI)
38
69200222
WIRE SEAL 16 AWG (GREEN) (HDI)
39
69200223
WIRE HARNESS DUAL HALOGEN HEADLAMP, WITH 5, 15, 16, 17, 18, 19, 20, 36, 37, 38, 40 AND 41 (HDI)
40
69200255
HOUSING FOUR-WAY PIN
41
69200256
SECONDARY LOCK FOUR-WAY SOCKET
42
69200298
WIRE HARNESS DUAL HALOGEN HEADLAMP, WITH 5, 15, 16, 17, 18, 19, 20, 40 AND 41 (DOMESTIC)
