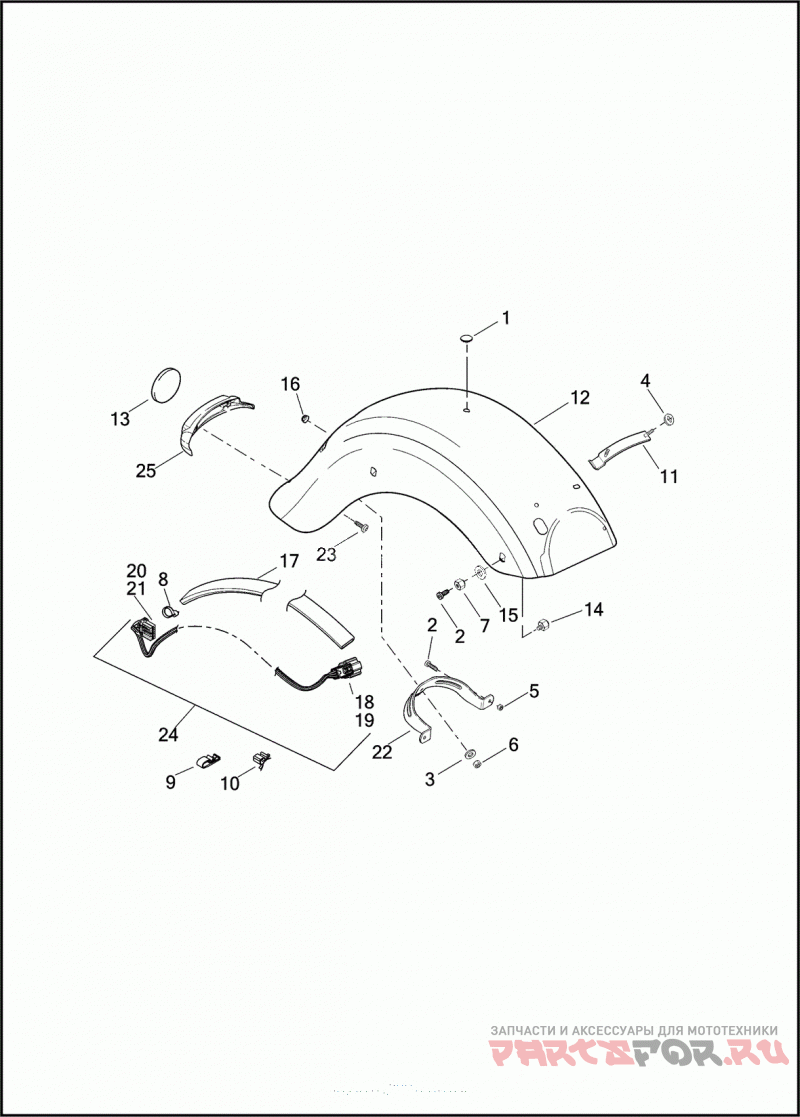

FENDERS, REAR

Harley Davidson FLHTP 1FMC ELECTRA GLIDE STANDARD POLICE (2017)

Harley Davidson
#oem кодцена
1
761
Заглушка
2
3684
SCREW 5/16-18 X 1 TORX PAN HD.
3
6703
WASHER 1/4 X 5/8 X 1/16
4
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
5
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
6
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
7
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
8
10006
CABLE STRAP
9
10183
CLIP T-STUD (DOMESTIC)
10
10184
CLIP T-STUD
11
59174-99
STUD PLATE
12
59579-09
FENDER REAR (PRIME) (DOMESTIC)
12
58702-09
FENDER REAR (PRIME) (HDI)
13
59581-05
BUMPER REAR FENDER (BLACK) (HDI)
14
59786-01
FENDER MOUNTING BOSS INNER
15
59788-01
FENDER MOUNTING WASHER
16
67266-94
BUSHING NYLON, TURN SIGNAL
17
70522-06B
CONDUIT SELF-ADHESIVE
18
72168-07
TERMINAL SOCKET, 18-20 AWG
19
72414-07BK
HOUSING SIX-WAY SOCKET (BLACK)
20
73156-96BK
SOCKET HOUSING SIX-WAY (BLACK)
21
73191-96
TERMINAL SOCKET, 16-20 AWG
22
91140-09
BRACKET SADDLEBAG TO FENDER SUPPORT
23
10500017
SCREW NO. 10 X 3/8 PAN HD., TORX, PLASTITE, HARDENED (ZINC)
24
69200128
HARNESS REAR LAMPS, WITH 10006, 70522-06B, 72168-07, 72414-07BK, 73156-96BK AND 73191-96
25
59600029
FENDER TIP REAR (DOMESTIC)
