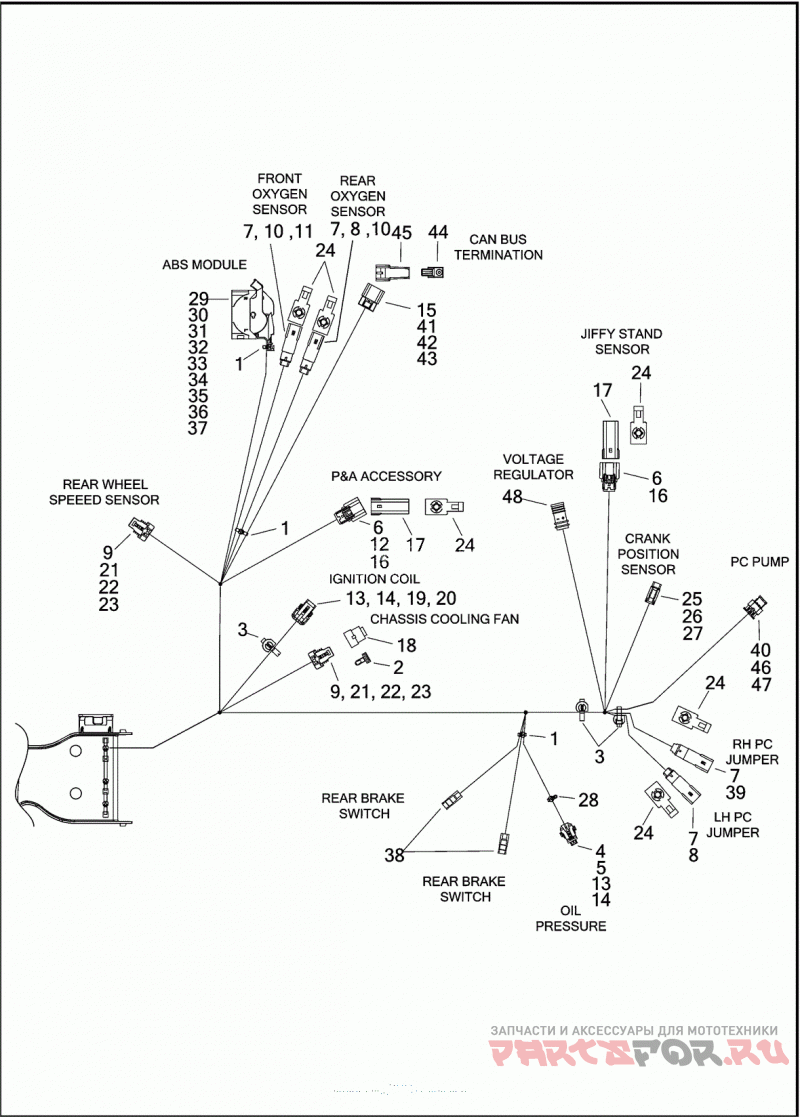

WIRING HARNESS, MAIN, ABS - FLHTK AND FLHTKL (7 OF 8)

Harley Davidson FLHTK 1KED ULTRA LIMITED (2017)

Harley Davidson
#oem кодцена
69201119
MAIN WIRING HARNESS - ABS
1
10065
CABLE STRAP
2
10147
CLIP CONNECTOR
3
10177
CABLE STRAP ANCHORED
4
72065-06A
HOUSING THREE-WAY SOCKET
5
72127-06
SECONDARY LOCK THREE-WAY (GRAY)
6
72168-07
TERMINAL SOCKET, 18-20 AWG
7
72169-07
TERMINAL PIN, 16-20 AWG
8
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
9
72213-94
TERMINAL SOCKET, 16-20 AWG
10
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
11
72415-07GY
HOUSING FOUR-WAY PIN (GRAY)
12
72473-07
SEAL PIN NATURAL
13
72484-08
TERMINAL SOCKET, 20 AWG
14
72486-08
WIRE SEAL 20 AWG (GREEN)
15
72499-07
WIRE SEAL 20-22 AWG (GREEN)
16
72512-07BK
HOUSING THREE-WAY SOCKET (BLACK)
17
72519-09BK
PLUG WEATHER, THREE-WAY SOCKET
18
72533-06
PLUG WEATHER, TWO-WAY PIN
19
72544-07
SECONDARY LOCK THREE-WAY SOCKET
20
72589-09
HOUSING THREE-WAY SOCKET
21
72606-08
HOUSING TWO-WAY SOCKET (BLACK)
22
72609-08
SECONDARY LOCK TWO-WAY SOCKET
23
72610-08
WIRE SEAL 18-20 AWG (WHITE)
24
73213-07
RETAINER ANCHORED
25
74112-98BK
HOUSING TWO-WAY SOCKET (BLACK)
26
74152-98
SECONDARY LOCK TWO-WAY SOCKET
27
74191-98
TERMINAL SOCKET
28
12500014
CABLE STRAP
29
69200183
HOUSING 26-WAY SOCKET
30
69200184
COVER WIRE
31
69200185
TERMINAL SOCKET, 20 AWG
32
69200186
TERMINAL SOCKET, 14-16 AWG
33
69200187
TERMINAL SOCKET, 12 AWG
34
69200188
WIRE SEAL 20 AWG
35
69200189
WIRE SEAL 14-16 AWG
36
69200190
WIRE SEAL 12 AWG
37
69200191
SEAL PIN
38
69200238
TERMINAL INSULATED, 20 AWG (BLACK)
39
69200272
HOUSING TWO-WAY PIN (BLACK)
40
69201301
WIRE SEAL 20-22 AWG (GREEN)
41
69201396
TERMINAL SOCKET, 20 AWG
42
69201400
HOUSING TWO-WAY SOCKET, CPA (BLACK)
43
69201401
SECONDARY LOCK TWO-WAY SOCKET
44
69201404
RETAINER ANCHORED
45
69201405
RESISTOR PACK
46
69201406
HOUSING THREE-WAY SOCKET
47
69201407
TERMINAL SOCKET, 20 AWG
48
69201423
DC LEAD ASSEMBLY TWO-WAY SOCKET, WITH 69201424
