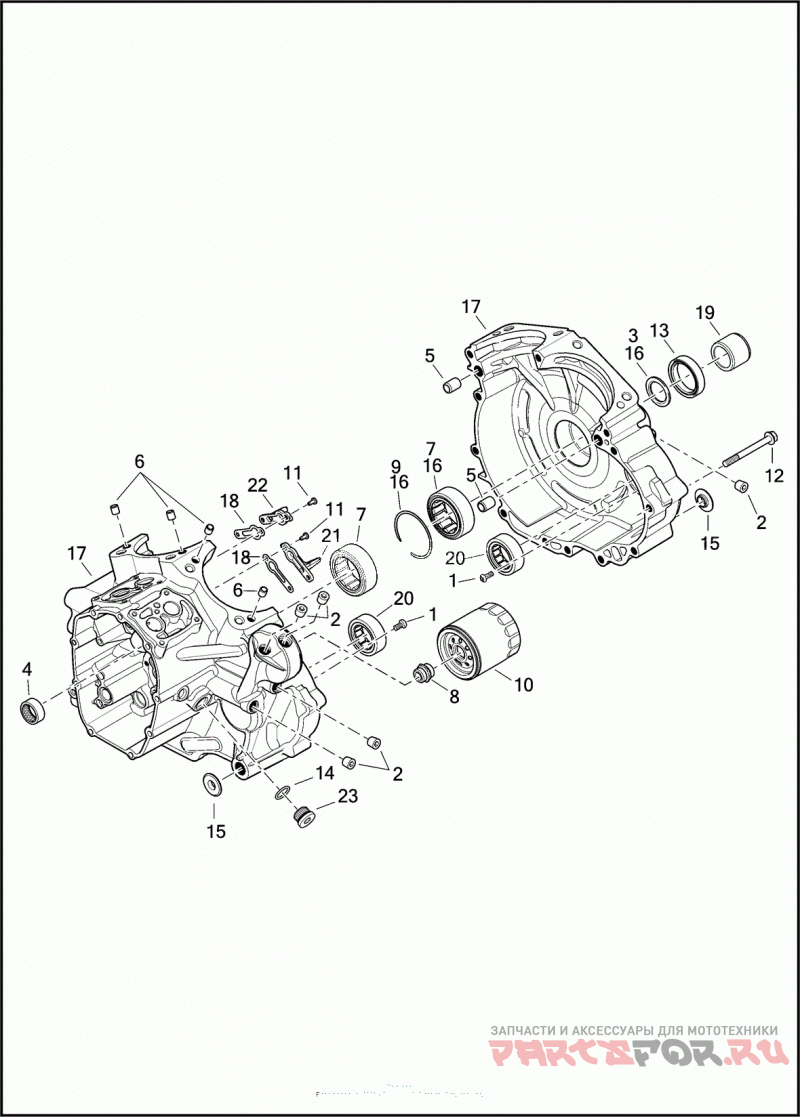

CRANKCASE AND ENGINE OIL FILTER

Harley Davidson FLHTK 1KED ULTRA LIMITED (2017)

Harley Davidson
#oem кодцена
1
703B
SCREW 1/4-20 X 7/16 TORX SOCKET BUTTON HD.
2
765
Заглушка
3
8972
WASHER 1-1/4 X 1-53/64 X 1/8
4
9215
NEEDLE BEARING LEFT SIDE, CAMSHAFT
5
16574-99A
Палец
6
16589-99A
Палец
7
24605-07
BEARING MAIN
8
26352-95A
Адаптер
9
35114-02
RING RETAINING, INTERNAL
10
63731-99A
OIL FILTER (BLACK)
11
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
12
10200343
SCREW 5/16-18 X 3-1/4 FLANGE (ZINC)
13
11000134
SEAL OIL
14
11900010
O-RING (TWIN-COOLEDв„ў)
15
12400099
SPACER FRONT MOUNT
16
24100080
BEARING KIT WITH 8972, 24605-07, 35114-02 AND INNER RACE
17
24400120
CRANKCASE SET WITH 2, 5, 6, 7, 9, 11, 12, 15, 18, 20, 21 AND 22 (BLACK)
18
25700433
GASKET PISTON JET
19
29900041
SPACER SPROCKET SHAFT
20
35200021
BEARING BALANCER
21
62700089
PISTON JET ASSEMBLY FRONT, WITH 25700433
22
62700117
PISTON JET ASSEMBLY REAR, WITH 25700433
23
62800013
PLUG WITH 11900010 (TWIN-COOLEDв„ў)
