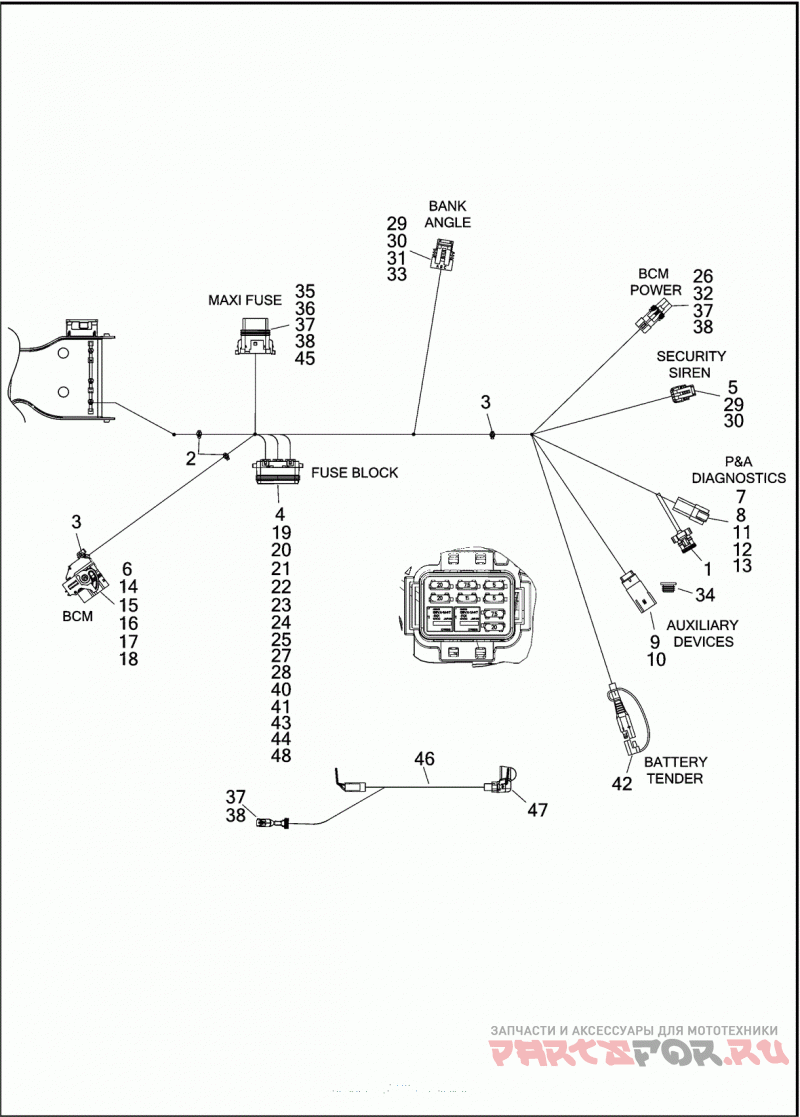

WIRING HARNESS, MAIN - FLHTCUTG (8 OF 8)

Harley Davidson FLHTCUTG 1MAD TRI GLIDE ULTRA (2017)

Harley Davidson
#oem кодцена
69201132
MAIN WIRING HARNESS
1
6990
PLUG SIX-WAY PIN, WEATHER
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
31586-07
RELAY
5
72064-06
HOUSING THREE-WAY SOCKET
6
72081-11
HOUSING 48-WAY SOCKET
7
72106-94BK
HOUSING SIX-WAY PIN (BLACK) (REPLACES GRAY CONNECTOR)
8
72146-94
SECONDARY LOCK SIX-WAY PIN
9
72169-07
TERMINAL PIN, 16-20 AWG
10
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
11
72190-94
TERMINAL PIN, 16-18 AWG
12
72194-94
TERMINAL PIN, 20 AWG
13
72195-94
SEAL PIN
14
72209-11
COVER WIRE
15
72222-11
TERMINAL SOCKET, 18-20 AWG
16
72226-11
TERMINAL SOCKET, 14-16 AWG
17
72227-11
TERMINAL SOCKET, 18-20 AWG
18
72256-11
SEAL PIN
19
72296-95
TERMINAL SOCKET, SEALED
20
72298-95
CABLE SEAL
21
72299-95
PLUG CAVITY
22
72308-97
TERMINAL SOCKET, 12-14 AWG
23
72330-95
FUSE 15 A (BLUE)
24
72331-95
FUSE 5 A (TAN)
25
72345-02
FUSE 20 A (YELLOW)
26
72350-11
HOUSING ONE-WAY SOCKET
27
72356-95
TERMINAL SOCKET, 18-20 AWG
28
72412-97
SEAL CABLE, 12-14 AWG
29
72484-08
TERMINAL SOCKET, 20 AWG
30
72486-08
WIRE SEAL 20 AWG (GREEN)
31
72544-07
SECONDARY LOCK THREE-WAY SOCKET
32
72575-11
SECONDARY LOCK
33
72589-09
HOUSING THREE-WAY SOCKET
34
72632-10
PLUG WEATHER, FOUR-WAY PIN
35
73301-04
HOUSING TWO-WAY PIN
36
73303-04
SECONDARY LOCK TWO-WAY SOCKET
37
73304-04
TERMINAL SOCKET, 10 AWG
38
73305-04
SEAL WIRE 10 AWG (BLUE)
39
11100115
CLOTH, HARNESS WRAP (NOT SHOWN)
40
69200194
HOUSING 24-WAY FUSE BLOCK
41
69200199
WIRE SEAL (PURPLE)
42
69200212
HARNESS BATTERY TENDER
43
69200293
FUSE 7.5 A (BROWN)
44
69200312
SECONDARY LOCK 24-WAY FUSE BLOCK
45
69200336
MAIN FUSE 50 A (RED), NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS
46
69201134
WIRE HARNESS POSITIVE CABLE, WITH 73304-04, 73305-04 AND 69201308
47
69201308
BOOT BATTERY POSITIVE
48
69201411
COVER FUSE BLOCK
