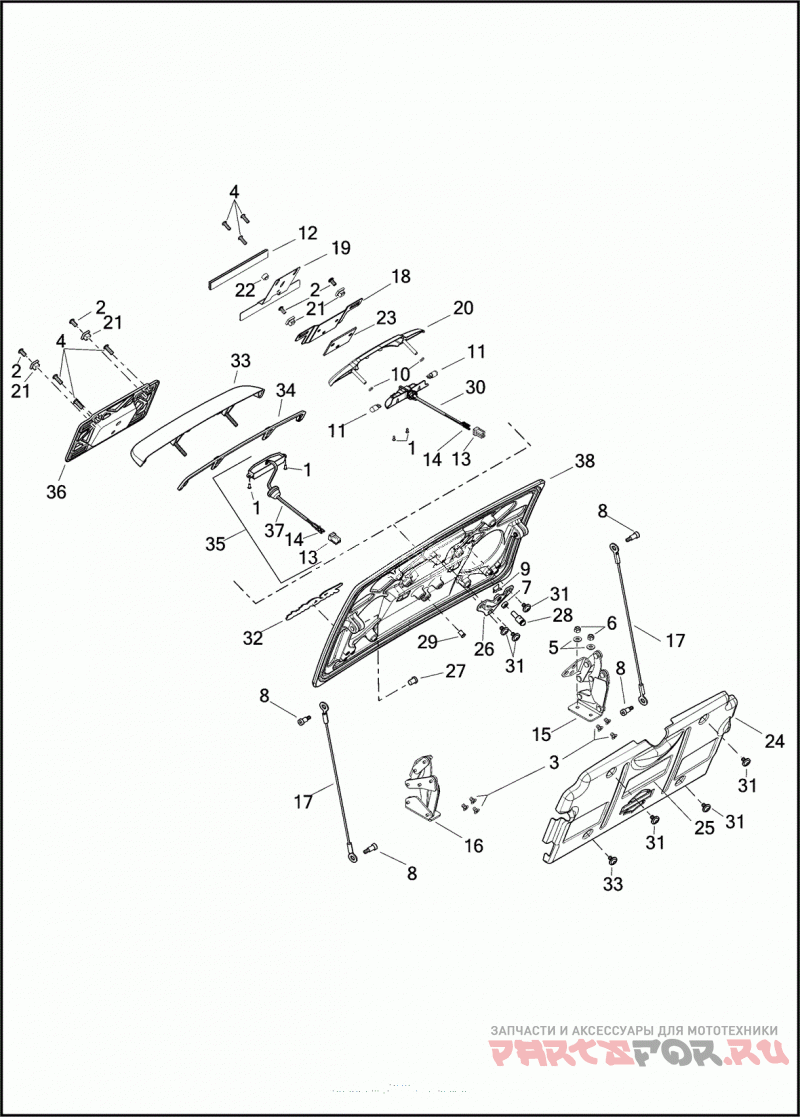

TRUNK DOOR - FLHTCUTG

Harley Davidson FLHTCUTG 1MAD TRI GLIDE ULTRA (2017)

Harley Davidson
#oem кодцена
1
2482
SCREW 6-32 X 5/16 SOCKET BUTTON HD. (STAINLESS)
2
4365
SCREW 1/4-20 X 1/2 SOCKET BUTTON HD. (GRADE 8)
3
4697
SCREW MACHINE, FLAT / LOCK
4
4699
SCREW BUTTON, TORX / LOCK
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
7
7763W
JAMNUT 5/16-18 X 3/16 X 1/2
8
8359
SCREW, SHOULDER 1/4-20, STAINLESS STEEL
9
10102
CLIP ADHESIVE BACKED
10
10968
O-RING (DOMESTIC)
11
52441-95
BULB (DOMESTIC)
12
59988-72A
REFLECTOR REFLEX (RED) (DOMESTIC)
13
73153-96BK
SOCKET HOUSING THREE-WAY (BLACK)
14
73191-96
TERMINAL SOCKET, 16-20 AWG
15
83337-09A
HINGE TRUNK DOOR (LEFT)
16
83339-09A
HINGE TRUNK DOOR (RIGHT)
17
83344-11
LANYARD ASSEMBLY
18
83395-09A
BRACKET LICENSE PLATE, TOP (DOMESTIC)
19
83396-09A
BRACKET LICENSE PLATE, BOTTOM (DOMESTIC)
20
83398-09
COVER LIGHT, LICENSE PLATE (DOMESTIC)
21
83418-09
INSERT SQUARE
22
83419-09
RUBBER BUMPER (DOMESTIC)
23
83420-09
CONTACT PAD RUBBER (DOMESTIC)
24
83434-11
COVER TRUNK DOOR, WITH 83446-09
25
83446-09
WARNING LABEL TRUNK DOOR
26
83538-11
LATCH PIN ASSEMBLY WITH 7763W AND 83781-11
27
83778-11
INSERT, TOP HAT PRESS-IN, 1/4-20
28
83781-11
LATCH PIN
29
83783-11
INSERT, BLIND TOP HAT PRESS-IN, 1/4-20 (DOMESTIC)
30
83799-10
LIGHT ASSEMBLY WITH LENS, 52441-95 AND 73191-96 (DOMESTIC)
31
10200004
SCREW 1/4-20 X 1/2 TORX SEMS SOCKET BUTTON HD.
32
14100157
NAMEPLATE REAR BODY (DOMESTIC)
33
67900075A
COVER LICENSE PLATE LIGHT (HDI)
34
67900289
GASKET (HDI)
35
67900290
LIGHT ASSEMBLY LED, LICENSE PLATE, WITH 2482, 67900075A, 67900289 AND 67900325 (HDI)
36
67900306
BRACKET LICENSE PLATE, WITH 83418-09 (HDI)
37
67900325
LIGHT LED, LICENSE PLATE, WITH 73153-96BK AND 73191-96 (HDI)
38
83000042DH
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (VIVID BLACK) (DOMESTIC)
38
83000042DSW
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (2 TONE MYSTERIOUS RED SUNGLO/VELOCITY RED SUNGLO) (DOMESTIC)
38
83000042DWC
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (SUPERIOR BLUE) (DOMESTIC)
38
83000042DZP
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (2 TONE BILLET SILVER/VIVID BLACK) (DOMESTIC)
38
83000042ECS
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (2 TONE BLACK HILLS GOLD/BLACK QUARTZ) (DOMESTIC)
38
83000105DH
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (VIVID BLACK) (HDI)
38
83000105DSW
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (2 TONE MYSTERIOUS RED SUNGLO/VELOCITY RED SUNGLO) (HDI)
38
83000105DWC
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (SUPERIOR BLUE) (HDI)
38
83000105DZP
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (2 TONE BILLET SILVER/VIVID BLACK) (HDI)
38
83000105ECS
TRUNK DOOR WITH 10102, 83778-11 AND 83783-11 (2 TONE BLACK HILLS GOLD/BLACK QUARTZ) (HDI)
