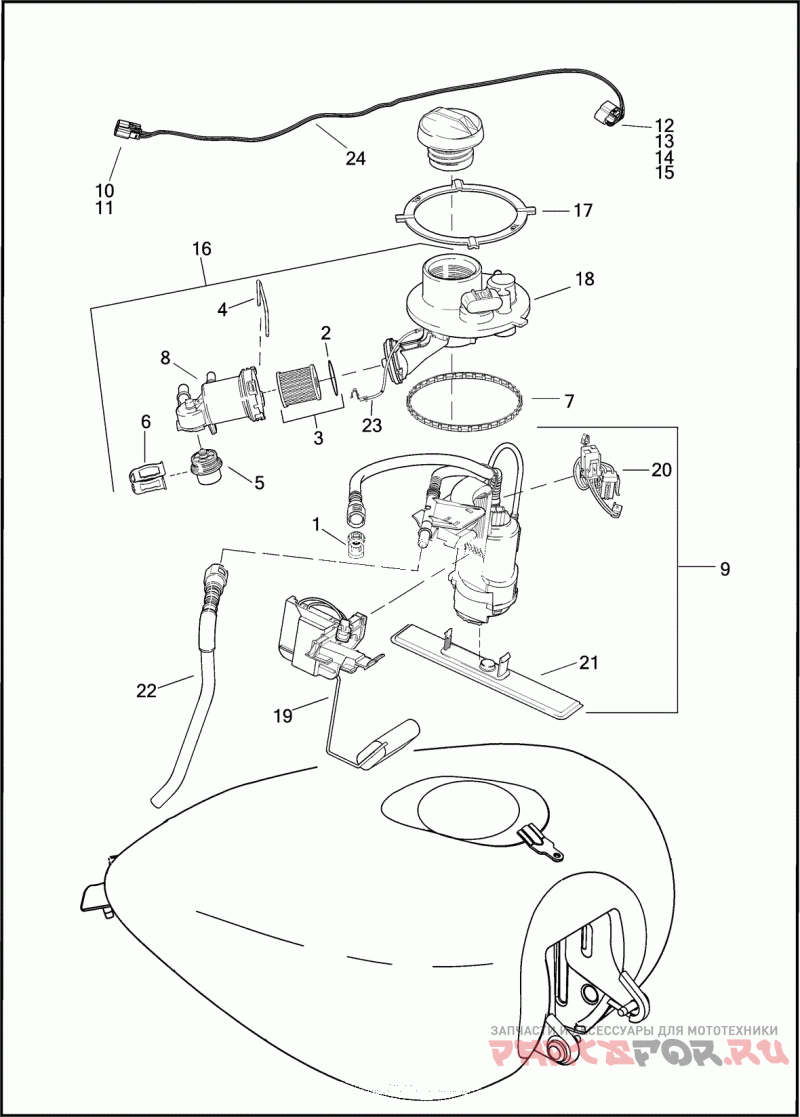

FUEL PUMP - FLHTCUTG

Harley Davidson FLHTCUTG 1MAD TRI GLIDE ULTRA (2017)

Harley Davidson
#oem кодцена
1
10395
Деталь RETAINER FUEL LINE, 5/16 (BLACK)
2
11686
Уплотнительное кольцо
3
61011-04A
Деталь FUEL FILTER KIT WITH 11686
4
61012-04A
Деталь CLIP FILTER RETAINER
5
61015-04A
Деталь FUEL REGULATOR ASSEMBLY KIT WITH O-RINGS, SPACER AND SCREEN
6
61213-04A
Деталь CLIP REGULATOR RETAINER
7
61402-08
Деталь GASKET TOP PLATE
8
62229-08B
Деталь FILTER SHELL
9
62908-08
Деталь PUMP ASSEMBLY FUEL, WITH 10395, 75229-08 AND 75254-04A
10
72168-07
Деталь TERMINAL SOCKET, 18-20 AWG
11
72444-07GY
Деталь HOUSING FOUR-WAY, SOCKET (GRAY)
12
72485-07
Деталь SOCKET HOUSING FOUR-WAY
13
72493-07
Деталь TERMINAL SOCKET 16-18 AWG
14
72494-07
Деталь WIRE SEAL 16-18 AWG
15
72557-07
Деталь SECONDARY LOCK FOUR-WAY SOCKET
16
75069-08C
Деталь TOP PLATE ASSEMBLY WITH 3, 4, 5, 6, 8, 18 AND 23
17
75089-08
Деталь RING FUEL TANK, CAM
18
75147-08B
Деталь TOP PLATE
19
75205-08A
Деталь FUEL LEVEL SENDER
20
75229-08
Деталь HARNESS FUEL PUMP MODULE
21
75254-04A
Деталь STRAINER FUEL PUMP INLET
22
75269-08
Деталь TRANSFER TUBE FUEL PUMP
23
75322-09
Деталь GROUND HARNESS
24
69200125
Деталь WIRE HARNESS CONSOLE, WITH 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 AND 72557-07
