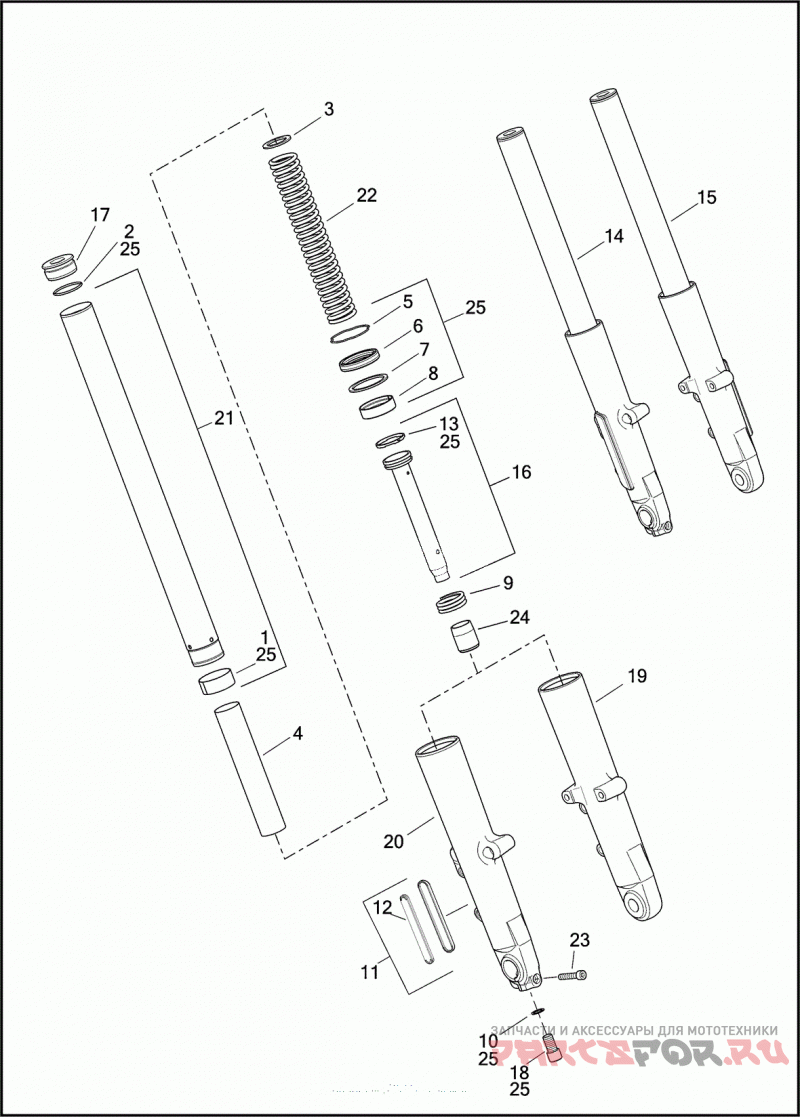

FORK, FRONT, LEFT AND RIGHT

Harley Davidson FLHTCUTG 1MAD TRI GLIDE ULTRA (2017)

Harley Davidson
#oem кодцена
1
46080-01
BUSHING SLIDER
2
46508-01
Уплотнительное кольцо
3
46509-01
WASHER 30 X 43 X 2.3
4
46510-07
COLLAR SPRING
5
46513-01
RING STOPPER
6
46514-01A
Сальник
7
46515-01
SPACER SEAL
8
46516-01
BUSHING GUIDE
9
46517-01
SPRING REBOUND
10
46615-06
PACKING SEAL
11
60253-07
BRACKET ASSEMBLY REFLECTOR, WITH 60254-07 (AMBER)
12
60254-07
REFLECTOR (AMBER)
13
22000031
Кольцо поршневое
14
45500089
FORK ASSEMBLY COMPLETE (RIGHT)
15
45500090
FORK ASSEMBLY COMPLETE (LEFT)
16
45500114
DAMPER TUBE WITH 22000031
17
45500117
BOLT FORK
18
45500118
SCREW M14 X 1.25 X 25 HEX SOCKET CAP (ZINC)
19
45500119
SLIDER FORK (LEFT)
20
45500121
SLIDER FORK (RIGHT)
21
45500123
FORK PIPE ASSEMBLY WITH 46080-01
22
45500124
SPRING FORK
23
45500132
SCREW M8 X 1.25 X 45 HEX SOCKET CAP (GRADE 8.8)
24
45500251
OIL LOCK PIECE
25
91700025A
FORK REBUILD KIT WITH 1, 2, 5, 6, 7, 8, 10, 13 AND 18
