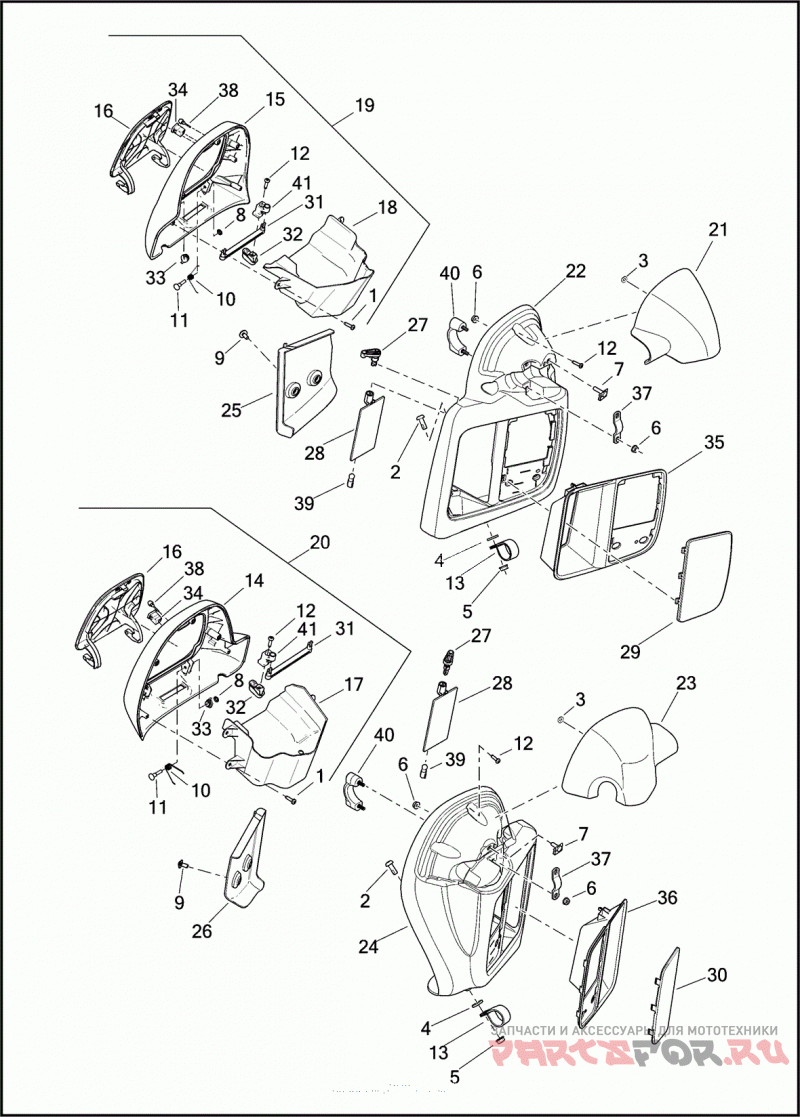

SCREW NO. 10-16 X 3/4 PAN HD.

SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)

WASHER 1/4 X 23/32 X 1/16

WASHER 11/32 X 7/8 X 1/8 RUBBER

NUT 5/16-18 UNC KEPS FLANGE

LOCKNUT 1/4-20 X 7/16 FLANGE

Зажим

Гайка

SCREW 1/4-20 X 39/64 TORX SEMS SOCKET BUTTON HD. , W/ LOCKPATCH

SPRING TORSION, DOOR

PIN DOOR HINGE

SCREW NO. 10-24 X 3/4 PAN HD. TORX, W/ LOCKPATCH (GRADE 8) (ZINC)

Зажим

FRAME GLOVE BOX (RIGHT)

FRAME GLOVE BOX (LEFT)

DOOR GLOVE BOX

TRAY GLOVE BOX (RIGHT)

TRAY GLOVE BOX (LEFT)

GLOVE BOX ASSEMBLY WITH 2995, 10100033, 11700005, 12000005, 12600049, 57100101, 57100102, 57100104, 57100164, 57100165, 57100166, 57100167, 57100188 AND 57100225 (LEFT)

GLOVE BOX ASSEMBLY WITH 2995, 10100033, 11700005, 12000005, 12600049, 57100098, 57100102, 57100103, 57100164, 57100165, 57100166, 57100167, 57100188 AND 57100225 (RIGHT)

CAP FAIRING LOWER (LEFT) (UNPAINTED)

FAIRING (LOWER) (LEFT) (UNPAINTED)

CAP FAIRING (LOWER) (RIGHT) (UNPAINTED)

FAIRING (LOWER) (RIGHT) (UNPAINTED)

COVER LOWER FAIRING (LEFT)

COVER LOWER FAIRING (RIGHT)

HINGE

DOOR VENT

PLATE (LOWER) (LEFT)

PLATE (LOWER) (RIGHT)

LINK DOOR VENT

KNOB DOOR VENT

DAMPER DOOR

LATCH DOOR

FASCIA ASSEMBLY (LOWER) (LEFT)

FASCIA ASSEMBLY (LOWER) (RIGHT)

RETAINER U-BOLT

BUMPER GLOVE BOX DOOR

PIN DOOR, VENT

CLAMP LOWER FAIRING

SLIDER DOOR, VENT
