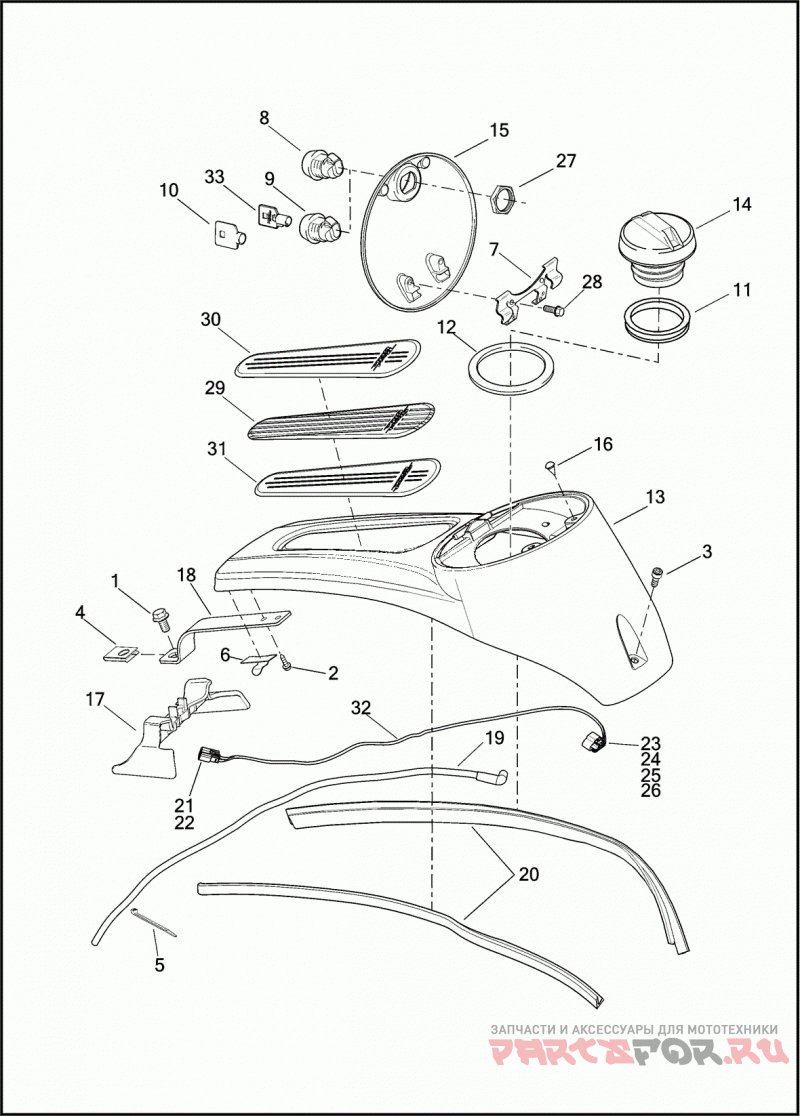

CONSOLE, FUEL TANK - FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS, FLTRU, FLTRX AND FLTRXS

Harley Davidson FLHTCU 1FCC ELECTRA GLIDE ULTRA CLASSIC (2017)

CONSOLE, FUEL TANK - FLHTCU, FLHTK, FLHTKL, FLHX, FLHXS, FLTRU, FLTRX AND FLTRXS

oem код

название

цена

3588

SCREW 1/4-20 X 1/2 HEX FLANGE HD.

4194

SCREW NO. 10-24 X 5/16 TORX PAN HD. (GRADE 5)

4856

SCREW NO. 10-24 X 1/2 SOCKET HEAD (STAINLESS)

NUT SPEED

CABLE STRAP

CLIP ADHESIVE BACKED

CLIP HINGE MOUNTING

PUSH BUTTON KIT FUEL TANK, WITH 84850-92 (DOMESTIC)

61109-85D

GASKET FILLER CAP

61112-08

чехол

61270-08

CONSOLE ASSEMBLY WITH HINGE PIN

61274-92

FUEL FILLER CAP VACUUM VENTED, WITH 61109-85D

61278-08A

DOOR KIT CONSOLE, WITH 10200442

61313-88

BUMPER COVER

62775-08

TRIM COVER FUEL TANK

67493-08

BRACKET CONSOLE MOUNT

69241-08

DRAIN HOSE CONSOLE

71294-08

MOLDING RUBBER

72168-07

TERMINAL SOCKET, 18-20 AWG

72444-07GY

HOUSING FOUR-WAY, SOCKET (GRAY)

72485-07

HOUSING FOUR-WAY SOCKET (BLACK)

72493-07

TERMINAL SOCKET, 16-18 AWG

72494-07

WIRE SEAL 16-18 AWG (YELLOW)

72557-07

SECONDARY LOCK FOUR-WAY SOCKET

84850-92

NUT 3/4-24 X 5/32

10200442

SCREW NO. 8-32 X 5/16 TRI-LOBE THREAD FORMING (ZINC)

69200125

WIRE HARNESS CONSOLE, WITH 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 AND 72557-07
