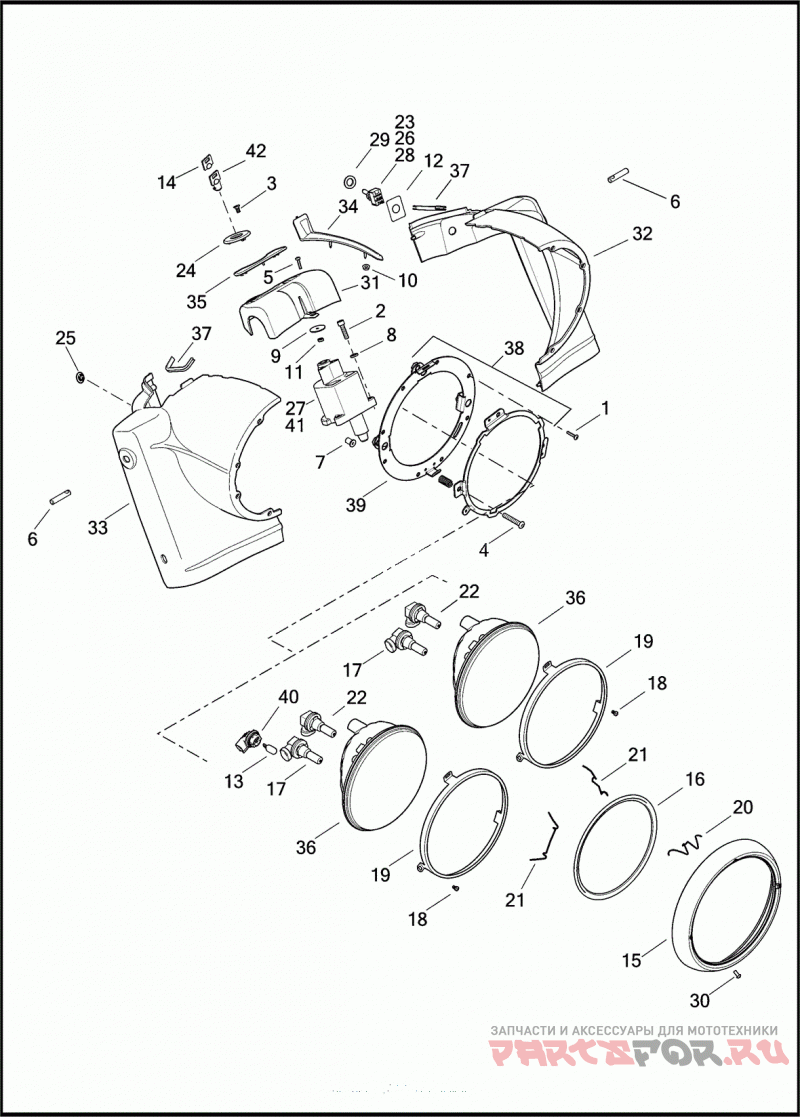

NACELLE AND HEADLAMP - FLHR AND FLHRC

Harley Davidson FLHR 1FBC ROAD KING (2017)

Harley Davidson
#oem кодцена
1
787
Винт
2
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
3
2933
SCREW NO. 10-24 X 1/2 FLAT HD.
4
3088
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (CHROME)
5
3225
BOLT NO. 6 X 5/8 LONG PHILLIPS PAN HD. (ZINC)
6
3265A
Шпилька
7
5210
WELL NUT
8
6150W
WASHER 3/16 X 3/8 X 1/16
9
6789
WASHER NO. 6 X 7/8 X .05
10
7888A
NUT NO. 6-32 FLANGE HD.
11
7889
NUT NO. 6-32 KEPS
12
15346-98A
LABEL FOG LAMP (LEFT)
13
53436-97
BULB POSITION LAMP (HDI)
14
61081-92
COVER KEY-HEAD (SET OF 2)
15
67712-83B
TRIM RING HEADLAMP
16
67716-60C
GASKET HEADLAMP DOOR
17
67717-01
BULB HIGH BEAM HALOGEN
18
67721-48
SCREW HEADLAMP RETAINER RING
19
67726-08
Стопорное кольцо
20
67778-60A
SPRING TRIM RING, HEADLAMP, TOP
21
67780-60A
SPRING TRIM RING, HEADLAMP, BOTTOM
22
68881-01
BULB LOW BEAM HALOGEN
23
70292-89
SOCKET HOUSING FOUR-WAY
24
71310-94
TRIM ASSEMBLY FORK LOCK
25
71455-11
HOLE PLUG (BLACK)
26
71522-08
SWITCH AUXILIARY LAMP AND ACCESSORIES, WITH 70292-89 AND 72038-71A (EXCEPT JAPAN)
26
71565-08
SWITCH ILLUMINATED, WITH 70292-89 AND 72038-71A (JAPAN)
27
71540-94B
FORK LOCK (SPECIFY KEY NUMBER)
28
72038-71A
TERMINAL SOCKET (EXCEPT JAPAN)
29
74408-08A
DRESS NUT (CHROME)
30
10200156
SCREW NO. 8-32 X 3/8 PHILLIPS ROUND HD. (STAINLESS STEEL)
31
55800091
COVER HANDLEBAR (CHROME)
32
61300095
NACELLE (LEFT) (CHROME)
33
61300096
NACELLE (RIGHT) (CHROME)
34
61400077
TRIM NACELLE (CHROME)
35
61400159
INSERT HANDLEBAR COVER
36
67700062
HEADLAMP ASSEMBLY DUAL HALOGEN, WITH 67717-01 AND 68881-01(DOMESTIC)
36
67700065
HEADLAMP ASSEMBLY DUAL HALOGEN, WITH 54346-97, 67717-01, 68881-01 AND 68000038 (HDI)
37
67700105
Планка
38
67700204
MOUNTING RING ASSEMBLY WITH 3088 AND 67700205
39
67700205
MOUNTING RING HEADLAMP
41
71400010A
LOCKSET COMPLETE, WITH KEYS, IGNITION SWITCH, FORK LOCK AND SADDLE BAG LOCK
