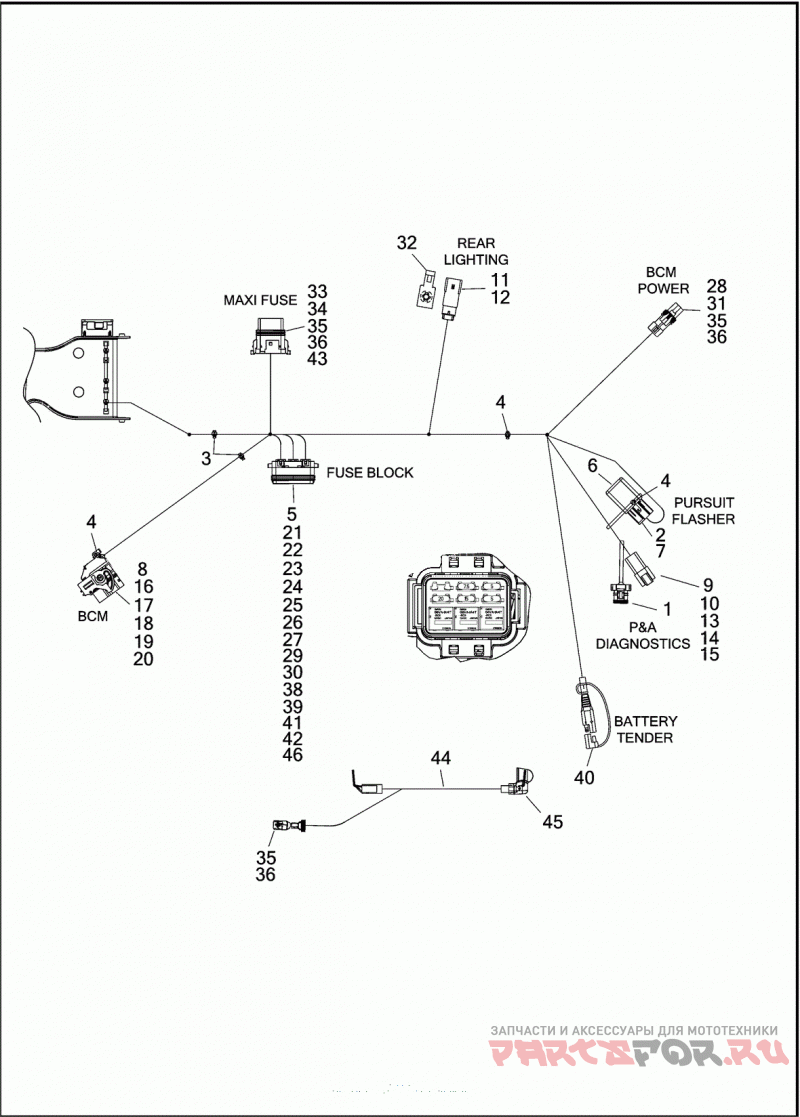

WIRING HARNESS, MAIN, ABS - FLHP (8 OF 8)

Harley Davidson FLHP 1FHC ROAD KING POLICE (2017)

Harley Davidson
#oem кодцена
69201129
MAIN WIRING HARNESS - ABS
1
6990
PLUG SIX-WAY PIN, WEATHER
2
9937
TERMINAL FEMALE SPADE, 14-18 AWG
3
10006
CABLE STRAP
4
10065
CABLE STRAP
5
31586-07
RELAY
6
68563-04A
RELAY/FLASHER
7
72046-79
HOUSING FIVE-WAY SOCKET
8
72081-11
HOUSING 48-WAY SOCKET
9
72106-94BK
HOUSING SIX-WAY (BLACK) (REPLACES GRAY CONNECTOR)
10
72146-94
SECONDARY LOCK SIX-WAY PIN
11
72169-07
TERMINAL PIN, 16-20 AWG
12
72188-07BK
HOUSING SIX-WAY PIN (BLACK)
13
72190-94
TERMINAL PIN, 16-18 AWG
14
72194-94
TERMINAL PIN, 20 AWG
15
72195-94
SEAL PIN
16
72209-11
COVER WIRE
17
72222-11
TERMINAL SOCKET, 18-20 AWG
18
72226-11
TERMINAL SOCKET, 14-16 AWG
19
72227-11
TERMINAL SOCKET, 18-20 AWG
20
72256-11
SEAL PIN
21
72296-95
TERMINAL SOCKET, SEALED
22
72298-95
CABLE SEAL
23
72299-95
PLUG CAVITY
24
72308-97
TERMINAL SOCKET, 12-14 AWG
25
72330-95
FUSE 15 A (BLUE)
26
72331-95
FUSE 5 A (TAN)
27
72345-02
FUSE 20 A (YELLOW)
28
72350-11
HOUSING ONE-WAY SOCKET
29
72356-95
TERMINAL SOCKET, 18-20 AWG
30
72412-97
SEAL CABLE, 12-14 AWG
31
72575-11
SECONDARY LOCK
32
73213-07
RETAINER ANCHORED
33
73301-04
HOUSING TWO-WAY PIN
34
73303-04
SECONDARY LOCK TWO-WAY SOCKET
35
73304-04
TERMINAL SOCKET, 10 AWG
36
73305-04
SEAL WIRE 10 AWG (BLUE)
37
11100115
CLOTH, HARNESS WRAP 50 M (NOT SHOWN)
38
69200194
HOUSING 24-WAY FUSE BLOCK
39
69200199
WIRE SEAL 18-20 AWG
40
69200212
HARNESS BATTERY TENDER
41
69200293
FUSE 7.5 A (BROWN)
42
69200312
SECONDARY LOCK 24-WAY FUSE BLOCK
43
69200336
MAIN FUSE 50 A (RED), NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS
44
69201130
WIRE HARNESS BATTERY POSITIVE TO STARTER, WITH 73304-04, 73305-04 AND 6901307
45
69201307
BOOT BATTERY POSITIVE
46
69201453
COVER FUSE BLOCK
