Воздушный фильтр для мотоциклов Harley Davidson XG750 4NBB STREET 750 (2016) (2016)

Москва и регионы России

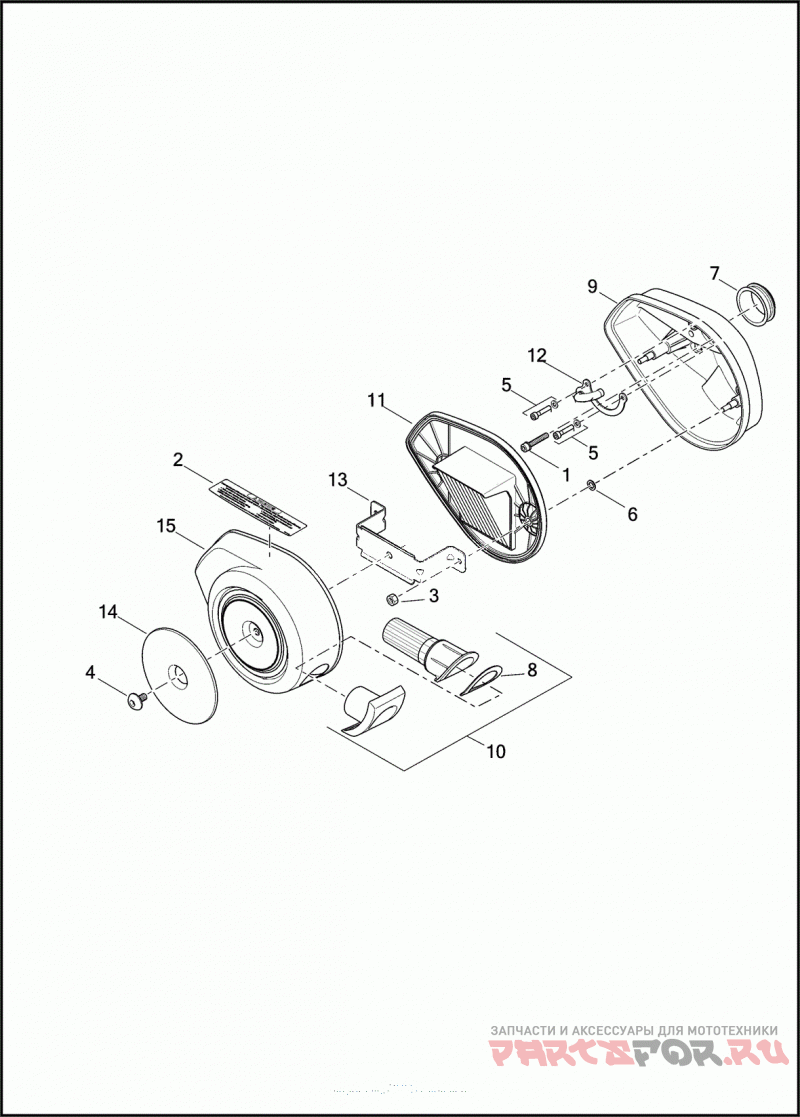

Воздушный фильтр

Harley Davidson XG750 4NBB STREET 750 (2016)

Воздушный фильтр

#

oem код

название

цена

1

SCREW M6 X 1.0 X 35 SOCKET HD.

SCREW M6 X 1.0 X 35 SOCKET HD.

2

LABEL (DOMESTIC)

LABEL (DOMESTIC)

3

Гайка

Гайка

4

SCREW M8 X 1.25MM X 15.5MM

SCREW M8 X 1.25MM X 15.5MM

5

SCREW M5 X 23 BOLT, W/ WASHER

SCREW M5 X 23 BOLT, W/ WASHER

6

Шайба

Шайба

7

SEAL THROTTLE BODY MANIFOLD

SEAL THROTTLE BODY MANIFOLD

8

Прокладка

Прокладка

9

BACKPLATE ASSEMBLY

BACKPLATE ASSEMBLY

10

INTAKE SNORKEL ASSEMBLY WITH 27200015

INTAKE SNORKEL ASSEMBLY WITH 27200015

11

HOUSING PLATE ASSEMBLY AIR FILTER

HOUSING PLATE ASSEMBLY AIR FILTER

12

HOSE ASSEMBLY AIR FILTER

HOSE ASSEMBLY AIR FILTER

13

BRACKET AIR FILTER

BRACKET AIR FILTER

14

TRIM AIR BOX COVER

TRIM AIR BOX COVER

15

COVER AIR BOX (GLOSS BLACK)

COVER AIR BOX (GLOSS BLACK)
