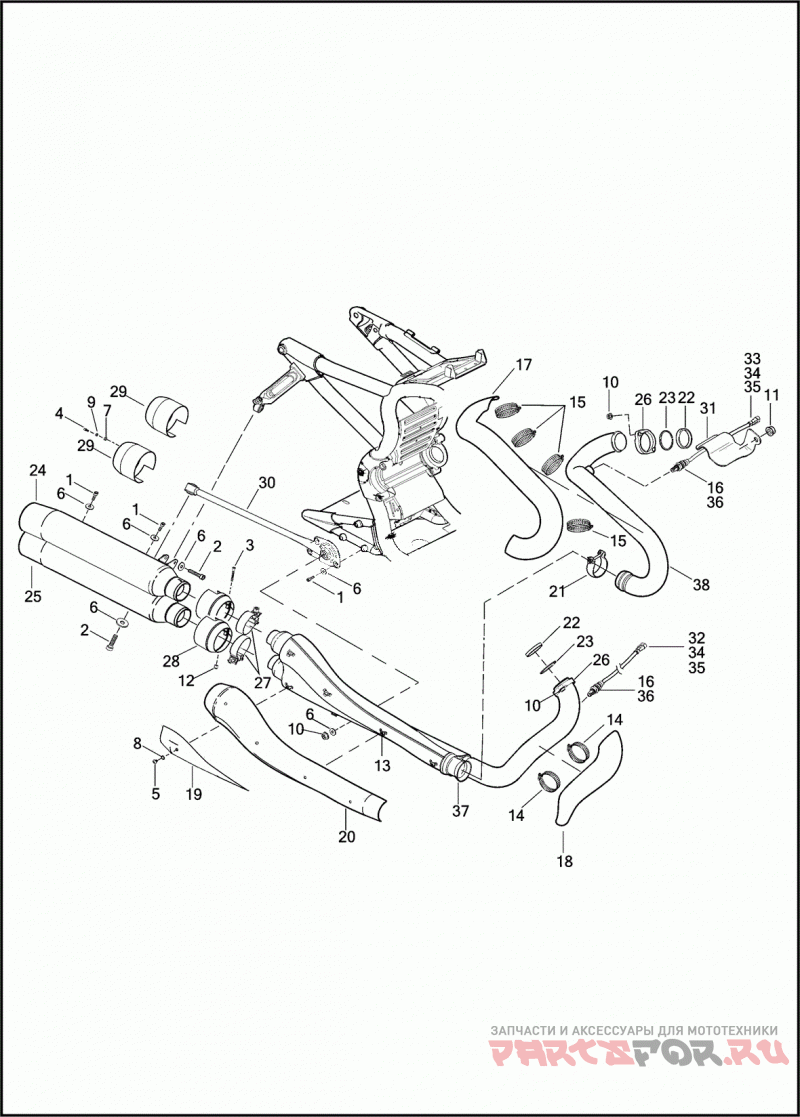

EXHAUST SYSTEM - VRSCDX

Harley Davidson VRSCDX 1HHH VRSCDX NIGHT ROD SPECIAL (2016)

Harley Davidson
#oem кодцена
1
3709M
SCREW M8 X 1.25 X 20 SOCKET HD.
2
4485M
SCREW M8 X 1.25 X 45 SOCKET HD.
3
4560M
SCREW M4 X .7 FILISTER HD.
4
4561M
SCREW M5 X .8 X 10 HEX SOCKET HD. CAP
5
4608MA
SCREW 6 X 1 X 8.0 TORX BUTTON HD. (T25 TORX)
6
6302
WASHER 5/16 X 11/16 X 19/32
7
6454
WASHER 5.3 X 9.9 X 1.0
8
6917M
WASHER M6
9
7081
LOCKWASHER M5 STAINLESS STEEL
10
7432M
NUT M8 X 1.25 FLANGE
11
7495
NUT M6 FLANGE
12
8006
NUT M4 X .7
13
8070MA
NUT M6 X 1 SQUARE
14
9954
Зажим
15
9955
Зажим
16
11936
Прокладка
17
64801-10
SHIELD EXHAUST ASSEMBLY (REAR) (BLACK)
18
64802-10
SHIELD EXHAUST ASSEMBLY (FRONT) (BLACK)
19
64803-10
SHIELD LOWER EXHAUST (BLACK)
20
64810-10
SHIELD UPPER EXHAUST (BLACK)
21
64832-09
Зажим
22
64971-09
Уплотнение
23
65045-01
Стопорное кольцо
24
65089-05A
MUFFLER TOP (DOMESTIC, CALIFORNIA, CANADA, HDI, AUSTRALIA, ENGLAND, H105, BRAZIL)
24
64817-07A
MUFFLER TOP (JAPAN)
25
65096-05A
MUFFLER BOTTOM (DOMESTIC, CALIFORNIA, CANADA, HDI, AUSTRALIA, ENGLAND, H105, BRAZIL)
25
64816-07A
MUFFLER BOTTOM (JAPAN)
26
65102-01
FLANGE
27
65108-01
Зажим
28
65341-10
ENDCAP MUFFLER INLET (BLACK)
29
65342-10
ENDCAP MUFFLER OUTLET (BLACK)
30
66777-07A
SUPPORT ASSEMBLY EXHAUST
31
70580-08
BRACKET OXYGEN SENSOR (REAR)
32
72177-07BK
SOCKET HOUSING FOUR-WAY (BLACK)
33
72444-07GY
HOUSING EIGHT-WAY (GRAY)
34
72344-10
TERMINAL SOCKET
35
73307-10
TERMINAL SOCKET
36
32700005
OXYGEN SENSOR FRONT WITH 11936, 72344-10, 72444-07GY AND 73307-10
36
32700006
OXYGEN SENSOR REAR WITH 11936, 72177-07BK, 72344-10 AND 73307-10
37
64900014
AUXILIARY VOLUME (DOMESTIC, CALIFORNIA, CANADA) (CHROME)
37
64900015A
AUXILIARY VOLUME (HDI, AUSTRALIA, ENGLAND, JAPAN, BRAZIL) (CHROME)
38
65600064
EXHAUST PIPE (REAR) (CHROME)
