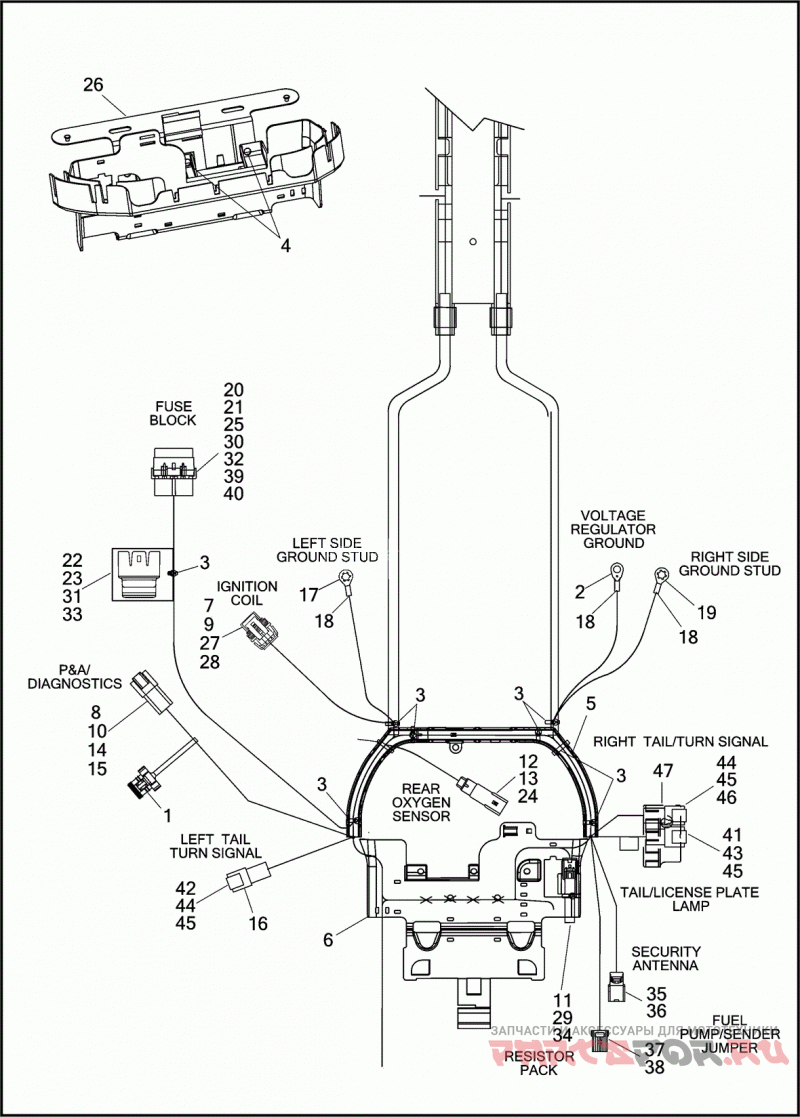

WIRING HARNESS, MAIN, ABS (3 OF 5)

Harley Davidson FXSE 1TG9 CVO PRO STREET BREAKOUT (2016)

Harley Davidson
#oem кодцена
69201358
WIRING HARNESS, MAIN
1
6990
PLUG WEATHER, SIX-WAY PIN
2
9819
TERMINAL RING RING, 12 AWG
3
10065
CABLE STRAP
4
11785
FASTENER PUSH-IN
5
70996-08
LOOM SHIELD WIRE HARNESS
6
71060-11A
WIRE SHIELD
7
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
8
72106-94BK
HOUSING SIX-WAY PIN (BLACK) (REPLACES GRAY CONNECTOR)
9
72135-06
SECONDARY LOCK FOUR-WAY SOCKET
10
72146-94
PIN LOCK SEC 6
11
72168-07
TERMINAL SOCKET, 18-20 AWG
12
72169-07
TERMINAL PIN, 16-20 AWG
13
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
14
72190-94
TERMINAL PIN, 16-18 AWG
15
72194-94
TERMINAL PIN, 20 AWG
16
72199-94
CONNECTOR ANCHOR
17
72242-94
TERMINAL RING, 10-12 AWG
18
72249-94
HEAT SHRINK TUBE .415 X 1 (BLACK)
19
72254-94
TERMINAL RING .25 STUD, 14-16 AWG
20
72298-95
WIRE SEAL 14-18 AWG (GREEN)
21
72308-97
TERMINAL SOCKET, 12-14 AWG
22
72314-01
MAIN FUSE 40 A
23
72330-95
FUSE 15 A (BLUE)
24
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
25
72356-95
TERMINAL SOCKET, 18-20 AWG
26
72369-08A
BRACKET FUSE BLOCK HOLDER (BLACK)
27
72484-08
TERMINAL SOCKET, 20 AWG
28
72486-08
WIRE SEAL 20 AWG (GREEN)
29
72514-07GY
HOUSING THREE-WAY SOCKET (GRAY)
30
72582-11
FUSE BLOCK
31
72586-11
COVER FUSE BLOCK
32
72587-11
SECONDARY LOCK
33
72595-11
SEAL FUSE BLOCK
34
72677-11
RESISTOR ASSEMBLY FUEL SENDER
35
72720-07
HOUSING TWO-WAY SOCKET (BLACK)
36
72721-07
TERMINAL SOCKET, 18-20 AWG
37
73154-96BK
HOUSING FOUR-WAY, SOCKET (BLACK)
38
73191-96
TERMINAL SOCKET, 16-20 AWG
39
73304-04
TERMINAL SOCKET, 10 AWG
40
73305-04
WIRE SEAL 10 AWG (BLUE)
41
74103-98BK
HOUSING THREE-WAY PIN, (BLACK)
42
74104-98BK
HOUSING FOUR-WAY PIN (BLACK)
43
74143-98
SECONDARY LOCK THREE-WAY PIN
44
74144-98
SECONDARY LOCK FOUR-WAY PIN
45
74190-98
TERMINAL PIN, 16-20 AWG
46
69200010
CONNECTOR FOUR-WAY PIN (GRAY)
47
69200012
BRACKET PIN HOUSING
