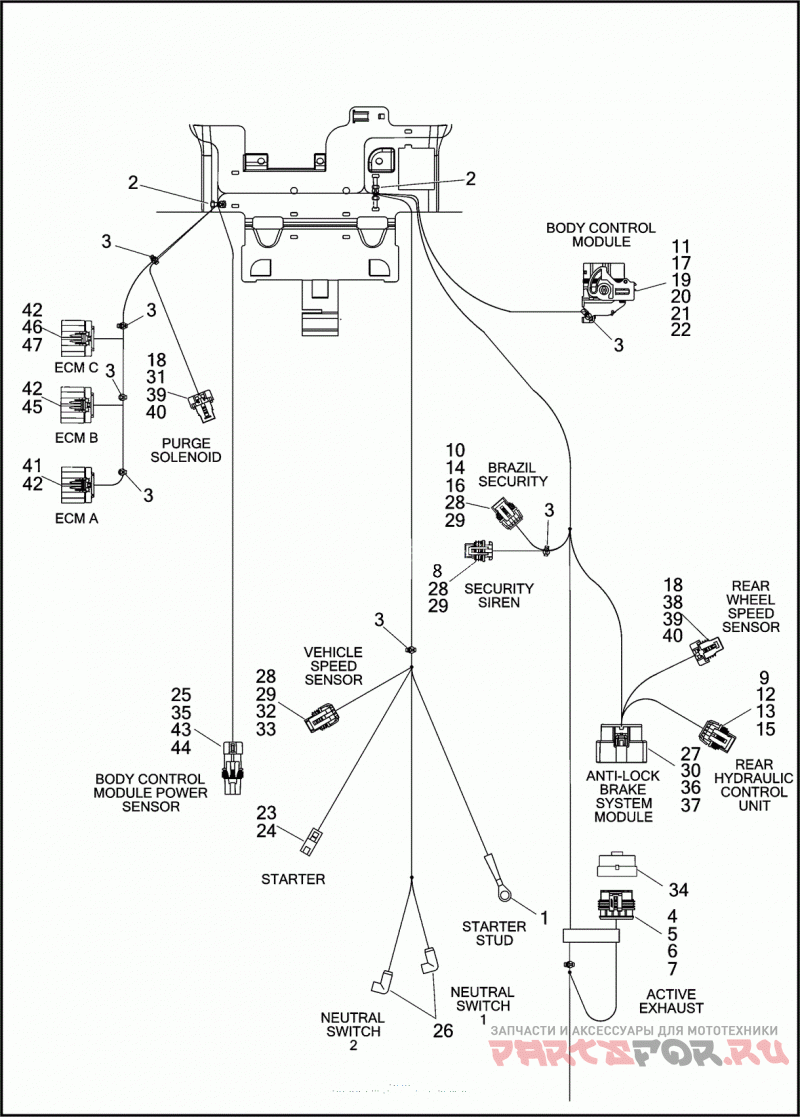

WIRING HARNESS, MAIN, ABS - FXSB (4 OF 5)

Harley Davidson FXSB 1BFV SOFTAIL BREAKOUT (2016)

Harley Davidson
#oem кодцена
69201082
WIRING HARNESS, MAIN
69201083
WIRING HARNESS, MAIN (BRAZIL)
1
9842
TERMINAL RING .31 10-12 AWG
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
72010-05
WIRE SEAL 22-26 AWG (GREEN)
5
72012-07
HOUSING FIVE-WAY SOCKET
6
72014-07
SEAL PIN
7
72024-08
TERMINAL SOCKET, 20-22 AWG
8
72064-06
HOUSING THREE-WAY SOCKET
9
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
10
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK) (BRAZIL)
11
72081-11
HOUSING 48-WAY SOCKET
12
72094-06
TERMINAL SOCKET, SOCKET 18 AWG
13
72096-06
WIRE SEAL 18 AWG (YELLOW)
14
72097-06
PLUG OVAL (ORANGE)
15
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
16
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY) (BRAZIL)
17
72209-11
COVER WIRE
18
72213-94
TERMINAL SOCKET, 16-20 AWG
19
72222-11
TERMINAL SOCKET 18-20 AWG
20
72226-11
TERMINAL SOCKET 14-16 AWG
21
72227-11
TERMINAL SOCKET, 18-20 AWG
22
72256-11
SEAL PIN .6MM, PLUG
23
72291-94
TERMINAL 14-16 AWG
24
72295-94
HOUSING STARTER CONNECTION
25
72350-11
HOUSING ONE-WAY
26
72405-98BK
PUSH ON 90 DEGREE CONNECTOR
27
72473-07
SEAL PIN
28
72484-08
TERMINAL SOCKET, 20 AWG
29
72486-08
WIRE SEAL 20 AWG (GREEN)
30
72500-07ABK
HOUSING 20-WAY SOCKET (BLACK)
31
72518-01
HOUSING SOCKET, TWO-WAY (RED)
32
72543-07BK
HOUSING THREE-WAY SOCKET (BLACK)
33
72544-07
SECONDARY LOCK THREE-WAY SOCKET
34
72553-07
DUST CAP FIVE-WAY
35
72575-11
SECONDARY LOCK
36
72581-11
TERMINAL SOCKET, 18-20 AWG (GOLD)
37
72593-11
TERMINAL SOCKET, 14-16 AWG (GOLD)
38
72606-08
HOUSING TWO-WAY SOCKET
39
72609-08
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
40
72610-08
SEAL CABLE, 18-20 AWG (WHITE)
41
72664-12A
HOUSING 18-WAY, SOCKET, KEY A (BLACK)
42
72666-12
TERMINAL SOCKET, 18-20 AWG (SILVER)
43
73304-04
TERMINAL .31 SOCKET, 10 AWG
44
73305-04
SEAL WIRE 10 AWG (BLUE)
45
69200267A
HOUSING 18-WAY, SOCKET, KEY B (GRAY)
46
69200268A
HOUSING 18-WAY, SOCKET, KEY C (BROWN)
47
69201168
TERMINAL SOCKET, 22 AWG (SILVER)
