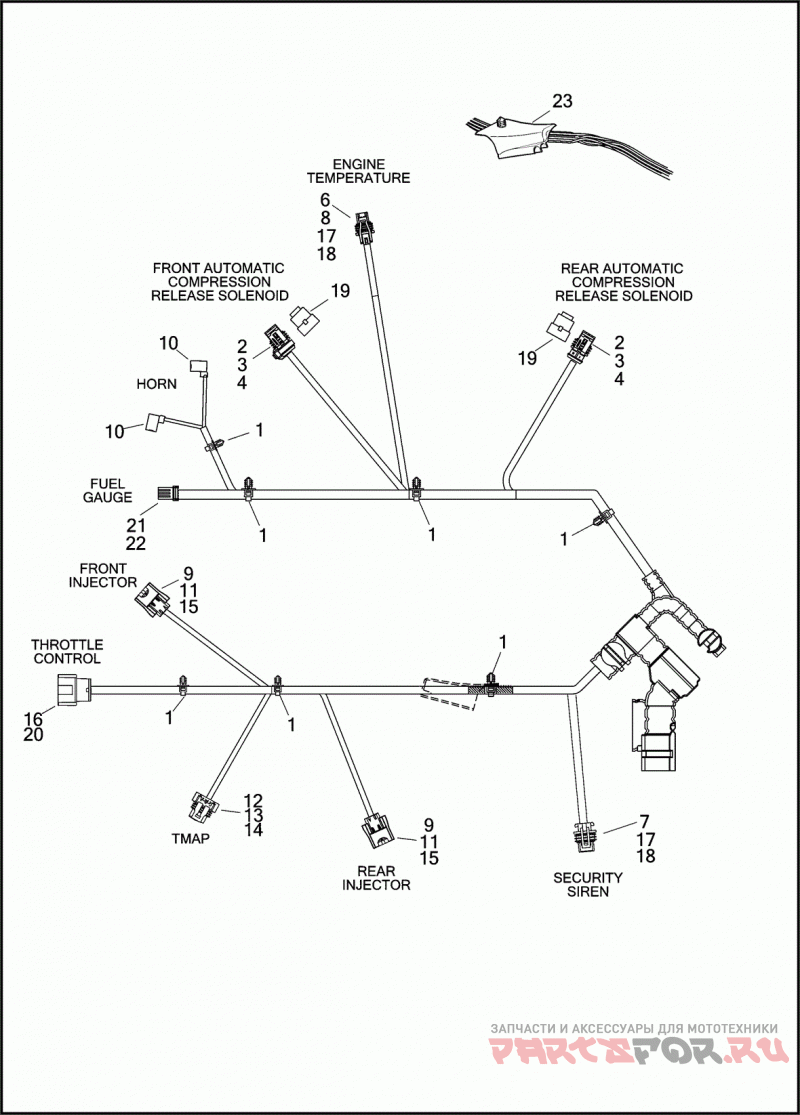

WIRING HARNESS, MAIN, ABS - FXDLS (5 OF 5)

Harley Davidson FXDLS 1GS8 DYNA LOW RIDER S (2016)

Harley Davidson
#oem кодцена
69201569A
WIRING HARNESS, MAIN
1
10177
CABLE STRAP ANCHORED TREE MOUNT
2
72007-05
HOUSING TWO-WAY SOCKET
3
72010-05
WIRE SEAL 22-26 AWG (GREEN)
4
72024-08
TERMINAL SOCKET, 20-22 AWG
6
72063-06
HOUSING TWO-WAY SOCKET
7
72064-06
HOUSING THREE-WAY SOCKET
8
72111-06
SECONDARY LOCK TWO-WAY SOCKET (GRAY)
9
72251-07
SECONDARY LOCK TWO-WAY SOCKET
10
72283-09
TERMINAL SOCKET, 14-16 AWG
11
72402-07
HOUSING TWO-WAY SOCKET (BLACK)
12
72406-07A
HOUSING FOUR-WAY SOCKET (BLACK)
13
72407-07
TERMINAL SOCKET, 16-20 AWG
14
72408-07
WIRE SEAL 16-20 AWG (BLUE)
15
72413-07
TERMINAL SOCKET, 18-20 AWG
16
72483-08BK
HOUSING SIX-WAY SOCKET (BLACK)
17
72484-08
TERMINAL SOCKET, 20 AWG
18
72486-08
WIRE SEAL 20 AWG (GREEN)
19
72533-06
DUST CAP TWO-WAY
20
72663-11
TERMINAL SOCKET, 18-20 AWG
21
72914-01BK
HOUSING FOUR-WAY SOCKET (BLACK)
22
72991-01
TERMINAL SOCKET, 18-22 AWG
23
41600028
CLIP ABS LINE
