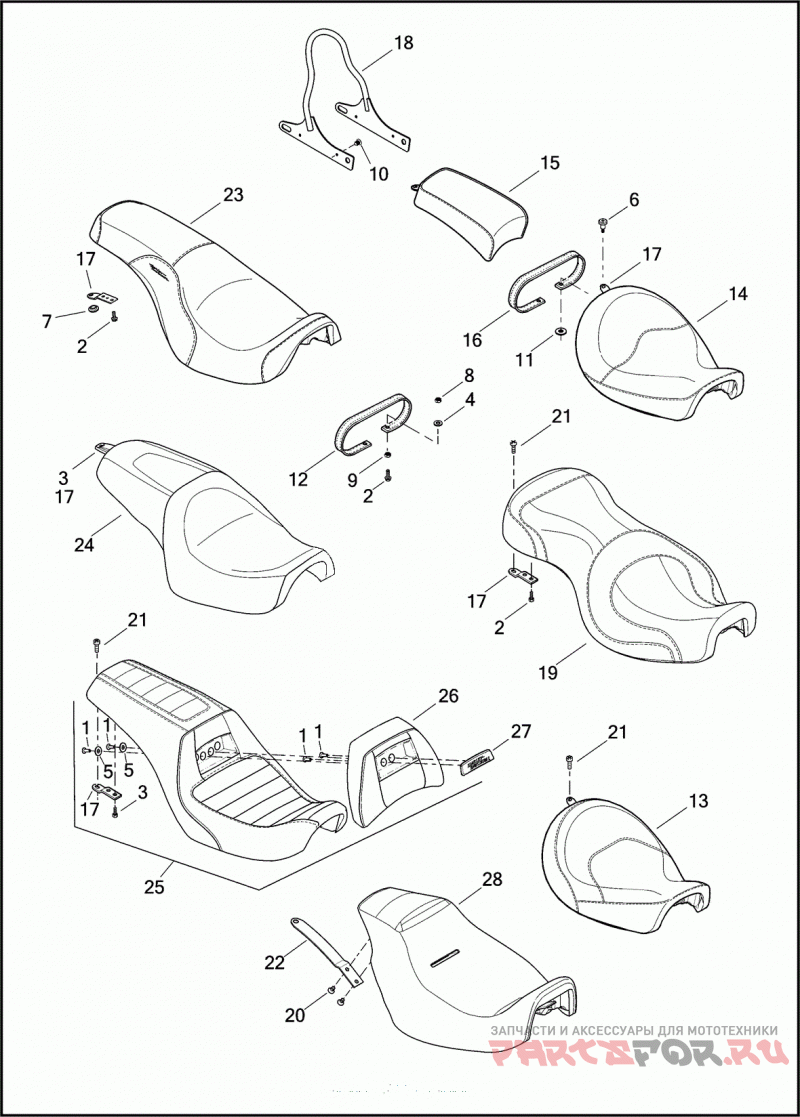

SEATS
Harley Davidson FXDL 1GN4 DYNA LOW RIDER (2016)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2420 SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2) | SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2) | |
3 | 3588 SCREW 1/4-20 X 1/2 HEX FLANGE HD. | SCREW 1/4-20 X 1/2 HEX FLANGE HD. | |
5 | 6223 WASHER 3/8 X 7/8 X 5/64 | WASHER 3/8 X 7/8 X 5/64 | |
12 | 51176-96C SEAT STRAP | SEAT STRAP | |
17 | 51652-97A BRACKET SEAT | BRACKET SEAT | |
21 | 10200221 SCREW 1/4-20 X 1/2 TORX TRUSS HD. (STAINLESS) | SCREW 1/4-20 X 1/2 TORX TRUSS HD. (STAINLESS) | |
25 | 52000136 SEAT ASSEMBLY WITH 2420, 3588, 6223, 51652-97A, 52000154 AND 52000155 | SEAT ASSEMBLY WITH 2420, 3588, 6223, 51652-97A, 52000154 AND 52000155 | |
26 | 52000154 SEAT LUMBAR PAD | SEAT LUMBAR PAD | |
27 | 52000155 NAMEPLATE SEAT | NAMEPLATE SEAT |
