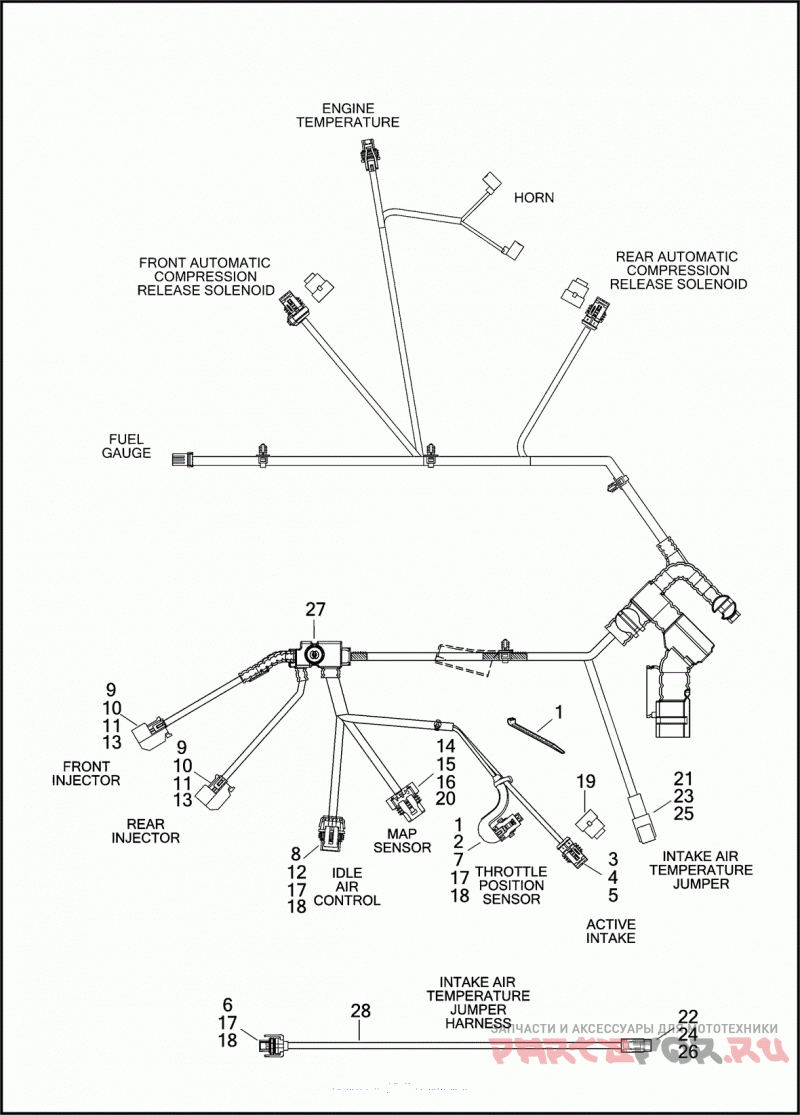

WIRING HARNESS, MAIN, NON-ABS (6 OF 7)

Harley Davidson FXDL 103 1GNM DYNA LOW RIDER (2016)

Harley Davidson
#oem кодцена
71072-12A
Деталь WIRING HARNESS, MAIN (CONTINUED)
1
10065
Деталь CABLE STRAP (103 HIGH OUTPUT) (CANADA, DOMESTIC)
2
70976-06
Деталь WIRE GUIDE TPS
3
72007-05
Деталь HOUSING TWO-WAY SOCKET
4
72010-05
Деталь WIRE SEAL 22-26 AWG (GREEN)
5
72024-08
Деталь TERMINAL SOCKET, 20-22 AWG
6
72062-06
Деталь HOUSING TWO-WAY SOCKET
7
72065-06A
Деталь HOUSING THREE-WAY SOCKET
8
72066-06A
Деталь HOUSING FOUR-WAY SOCKET (BLACK)
9
72098-06
Деталь HOUSING TWO-WAY SOCKET
10
72099-06
Деталь WIRE SEAL 16-18 AWG (BLUE)
11
72110-06
Деталь TERMINAL SOCKET 16-18 AWG
12
72135-06
Деталь SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
13
72145-06
Деталь SECONDARY LOCK TWO-WAY SOCKET (BLUE)
14
72213-94
Деталь TERMINAL SOCKET, 16-20 AWG
15
72230-98
Деталь HOUSING THREE-WAY SOCKET
16
72231-98
Деталь SECONDARY LOCK THREE-WAY
17
72283-09
Деталь TERMINAL SOCKET, 14-16 AWG
18
72486-08
Деталь WIRE SEAL 20 AWG (GREEN)
19
72533-06
Деталь DUST CAP TWO-WAY
20
72610-08
Деталь SEAL CABLE, 18-20 AWG (WHITE)
21
74102-05GY
Деталь HOUSING TWO-WAY PIN (GRAY)
22
74112-05GY
Деталь HOUSING TWO-WAY SOCKET (GRAY)
23
74190-98
Деталь TERMINAL PIN, 16-20 AWG
24
74191-98
Деталь TERMINAL SOCKET
25
74142-98
Деталь SECONDARY LOCK TWO-WAY PIN
26
74152-98
Деталь LOCK SOCKET, 2-WAY
27
12500001
Деталь CABLE STRAP
28
69200444
Деталь HARNESS JUMPER, IAT
