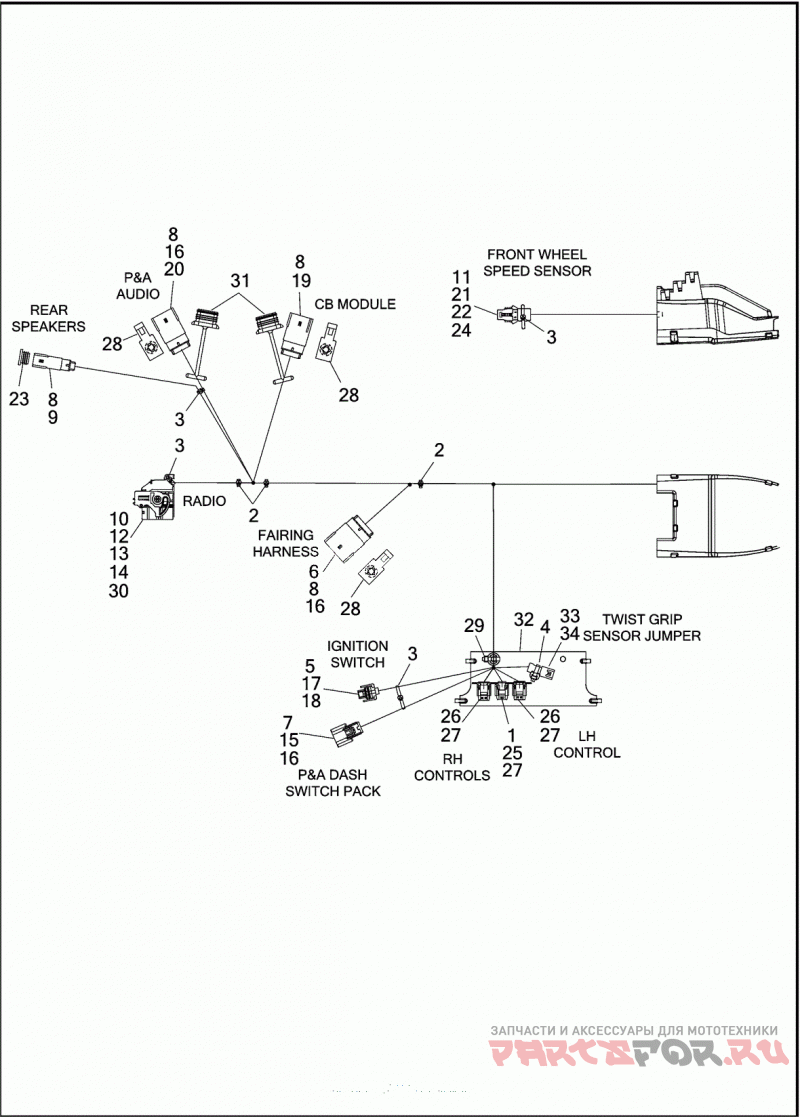

WIRING HARNESS, MAIN, ABS (FAIRING MODELS)-FLTRX AND FLTRXS (2 OF 8)

Harley Davidson FLTRXS 1KTM ROAD GLIDE SPECIAL (2016)

Harley Davidson
#oem кодцена
69201322A
WIRE HARNESS,MAIN W/ ABS
1
5118
SEAL PIN
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
10177
CABLE STRAP ANCHORED
5
72062-06
HOUSING TWO-WAY SOCKET
6
72167-07BK
HOUSING 16-WAY PIN (BLACK)
7
72168-07
TERMINAL SOCKET, 18-20 AWG
8
72169-07
TERMINAL PIN, 16-20 AWG
9
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
10
72209-11
COVER WIRE
11
72213-94
TERMINAL SOCKET, 16-20 AWG
12
72222-11
TERMINAL SOCKET, 18-20 AWG
13
72226-11
TERMINAL SOCKET, 14-16 AWG
14
72256-11
SEAL PIN
15
72414-07BK
HOUSING SIX-WAY SOCKET
16
72473-07
SEAL PIN
17
72484-08
TERMINAL SOCKET, 20 AWG
18
72486-08
WIRE SEAL 20 AWG (GREEN)
19
72488-07BK
HOUSING 12-WAY PIN (BLACK)
20
72490-07GY
HOUSING 12-WAY PIN (GRAY)
21
72606-08
HOUSING TWO-WAY SOCKET
22
72610-08
SEAL 18-20 AWG (WHITE)
23
72632-10
WEATHER PLUG FOUR-WAY PIN
24
72639-10
SECONDARY LOCK TWO-WAY SOCKET
25
72905-11
HOUSING TWO-WAY PIN (BLACK)
26
72907-11
HOUSING FOUR-WAY PIN (BLACK)
27
72909-11
TERMINAL PIN, 20-22 AWG
28
73213-07
RETAINER ANCHORED
29
12500002
CABLE STRAP
30
69200193
HOUSING 48-WAY SOCKET
31
69200205
WEATHER PLUG 12-WAY PIN
32
69200700
CADDY
33
69201163
HOUSING SIX-WAY PIN (BLACK)
34
69201164
TERMINAL PIN, 22 AWG
