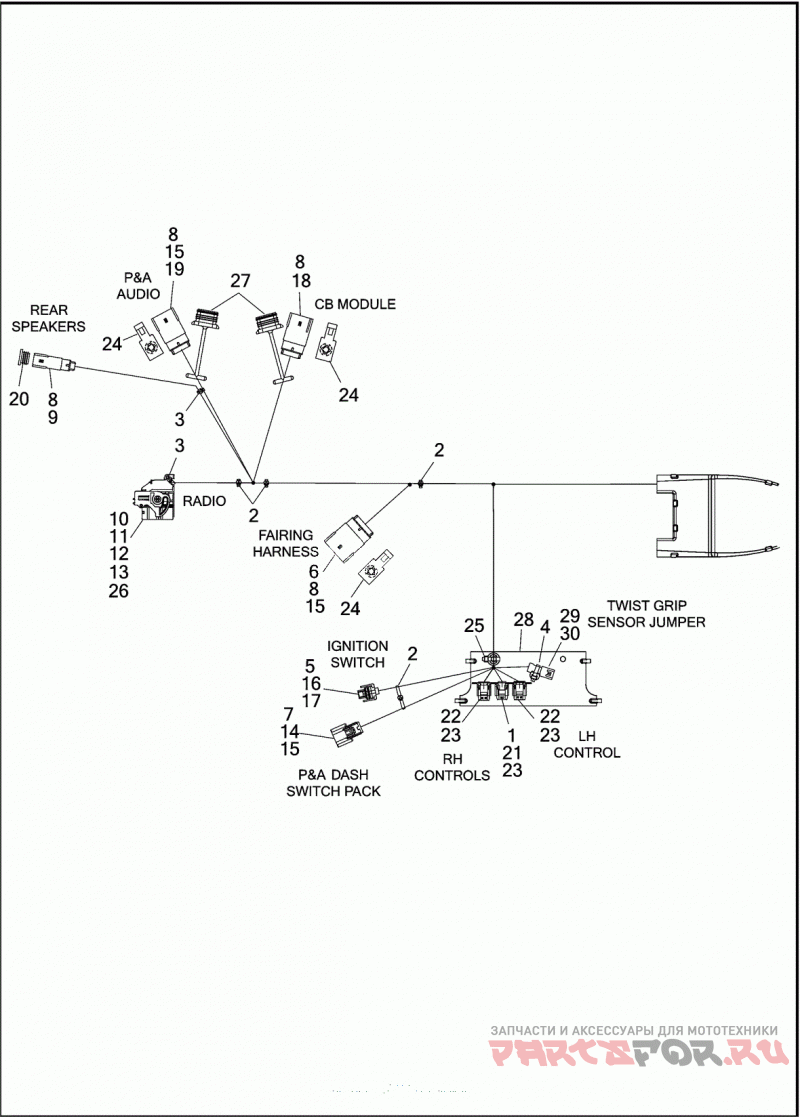

WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX (2 OF 8)

Harley Davidson FLTRX 1KHM ROAD GLIDE (2016)

Harley Davidson
#oem кодцена
69201321A
WIRE HARNESS,MAIN
1
5118
SEAL PIN
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
10177
CABLE STRAP ANCHORED
5
72062-06
HOUSING TWO-WAY SOCKET
6
72167-07BK
HOUSING 16-WAY PIN (BLACK)
7
72168-07
TERMINAL SOCKET, 18-20 AWG
8
72169-07
TERMINAL PIN, 16-20 AWG
9
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
10
72209-11
COVER WIRE
11
72222-11
TERMINAL SOCKET, 18-20 AWG
12
72226-11
TERMINAL SOCKET, 14-16 AWG
13
72256-11
SEAL PIN
14
72414-07BK
HOUSING SIX-WAY SOCKET
15
72473-07
SEAL PIN
16
72484-08
TERMINAL SOCKET, 20 AWG
17
72486-08
WIRE SEAL 20 AWG (GREEN)
18
72488-07BK
HOUSING 12-WAY PIN (BLACK)
19
72490-07GY
HOUSING 12-WAY PIN (GRAY)
20
72632-10
WEATHER PLUG FOUR-WAY PIN
21
72905-11
HOUSING TWO-WAY PIN (BLACK)
22
72907-11
HOUSING FOUR-WAY PIN (BLACK)
23
72909-11
TERMINAL PIN, 20-22 AWG
24
73213-07
RETAINER ANCHORED
25
12500002
CABLE STRAP
26
69200193
HOUSING 48-WAY SOCKET
27
69200205
WEATHER PLUG 12-WAY PIN
28
69200700
CADDY
29
69201163
HOUSING SIX-WAY PIN (BLACK)
30
69201164
TERMINAL PIN, 22 AWG
