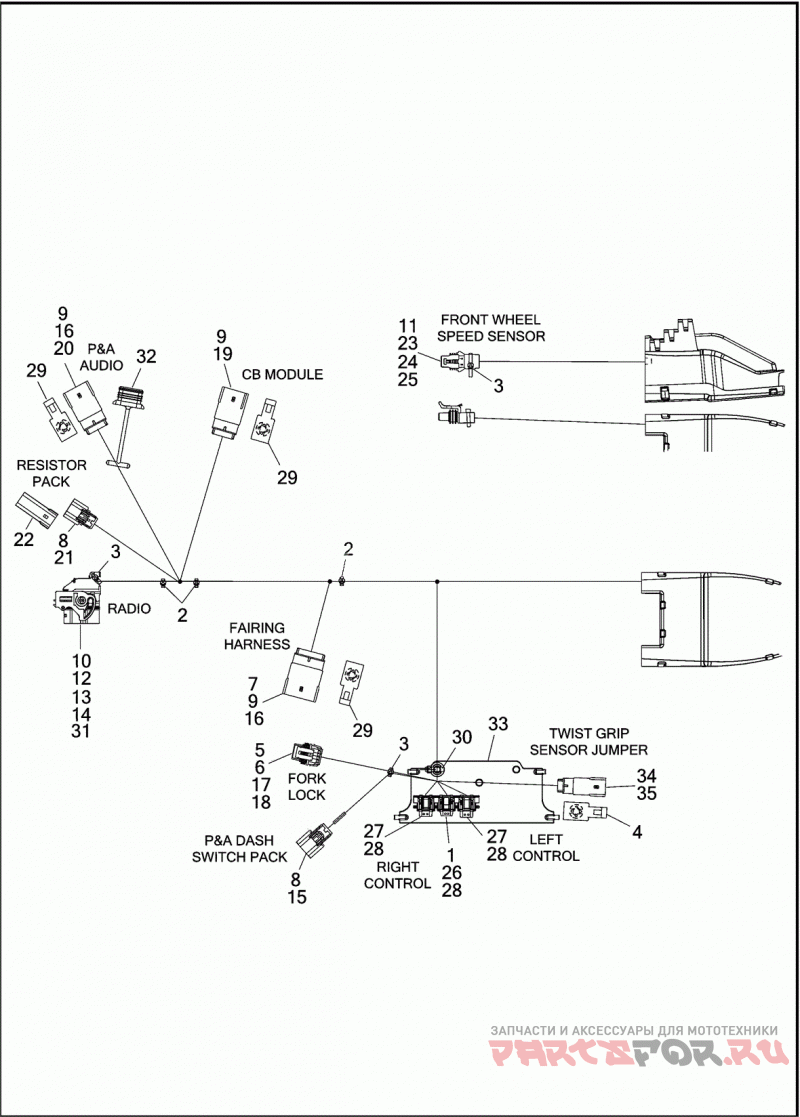

WIRING HARNESS, MAIN (2 OF 8)

Harley Davidson FLTRUSE 1TAN CVO ROAD GLIDE ULTRA (2016)

Harley Davidson
#oem кодцена
69201292A
MAIN WIRE HARNESS,W/ABS FLTRUSE
1
5118
SEAL PIN
2
10006
CABLE STRAP
3
10065
CABLE STRAP
4
10177
CABLE STRAP TREE MOUNT
5
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
6
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
7
72167-07BK
HOUSING 16-WAY PIN (BLACK)
8
72168-07
TERMINAL SOCKET, 18-20 AWG
9
72169-07
TERMINAL PIN, 16-20 AWG
10
72209-11
COVER WIRE DRESS
11
72213-94
TERMINAL SOCKET, 16-20 AWG
12
72222-11
TERMINAL SOCKET, 18-20 AWG
13
72226-11
TERMINAL SOCKET, 14-16 AWG
14
72256-11
SEAL PIN
15
72414-07BK
HOUSING 6-WAY SOCKET (BLACK)
16
72473-07
SEAL PIN
17
72484-08
TERMINAL SOCKET, 20 AWG
18
72486-08
WIRE SEAL 20 AWG (GREEN)
19
72488-07BK
HOUSING 12-WAY PIN (BLACK)
20
72490-07GY
HOUSING 12-WAY PIN (GRAY)
21
72512-07BK
HOUSING THREE-WAY SOCKET (BLACK)
22
72545-08
RESISTOR ASSEMBLY FUEL SENDER
23
72606-08
HOUSING TWO-WAY SOCKET (BLACK)
24
72610-08
SEAL 18-20 AWG (WHITE)
25
72639-10
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
26
72905-11
HOUSING TWO-WAY PIN (BLACK)
27
72907-11
HOUSING FOUR-WAY PIN (BLACK)
28
72909-11
TERMINAL PIN, 20-22 AWG
29
73213-07
RETAINER ANCHORED
30
12500002
CABLE STRAP
31
69200193
HOUSING 48-WAY SOCKET (BLACK)
32
69200205
WEATHER PLUG 12-WAY PIN
33
69200700
CADDY
34
69201163
HOUSING SIX-WAY PIN (BLACK)
35
69201164
TERMINAL PIN, 22 AWG
