Задний фонарь

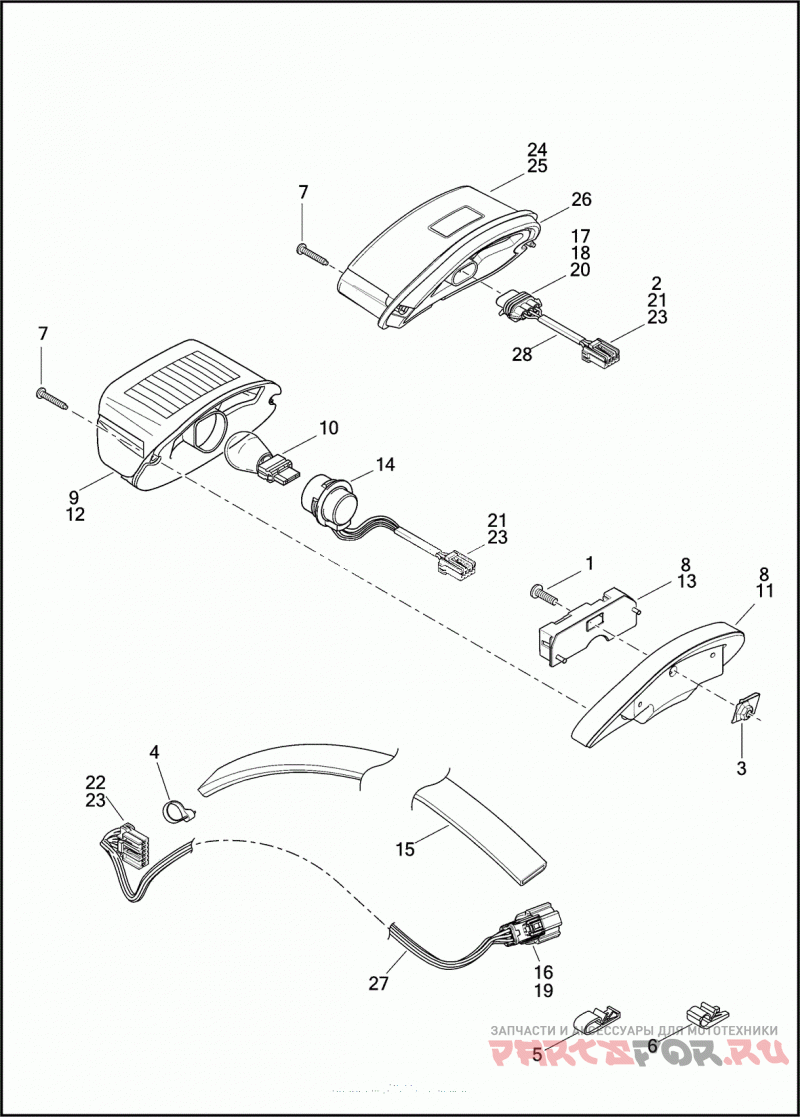

Harley Davidson FLTRUSE 1TAN CVO ROAD GLIDE ULTRA (2016)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
2
5118
SEAL PIN
3
7964
J-NUT
4
10006
CABLE STRAP
5
10183
CLIP T-STUD
6
10184
CLIP T-STUD
7
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
8
68066-99A
TAIL LAMP BASE ASSEMBLY WITH 68296-99A AND 68830-99A
9
68142-04
LAMP ASSEMBLY TAIL LAMP, WITH 68558-03 AND 69187-03A (HDI)
10
68167-04
BULB TAIL LAMP, WEDGE MOUNT (HDI)
11
68296-99A
TAIL LIGHT BASE (CHROME)
12
68558-03
LENS TAIL LAMP, WITH 68026-99 (HDI)
13
68830-99A
CIRCUIT BOARD AND COVER
14
69187-03A
BULB SOCKET ASSEMBLY TAIL LAMP, WITH 68167-04, 73154-96BK, AND 73191-96 (HDI)
15
70522-06B
CONDUIT SELF-ADHESIVE
16
72168-07
TERMINAL SOCKET, 18-20 AWG
17
72213-94
TERMINAL SOCKET, 16-20 AWG
18
72230-98
HOUSING THREE-WAY SOCKET (BLACK)
19
72414-07BK
HOUSING SIX-WAY SOCKET (BLACK)
20
72610-08
WIRE SEAL 18-20 AWG (WHITE)
21
73154-96BK
HOUSING FOUR-WAY SOCKET (BLACK)
22
73156-96BK
HOUSING SIX-WAY SOCKET (BLACK)
23
73191-96
TERMINAL SOCKET, 16-20 AWG
24
67800205
LAMP ASSEMBLY WITH 68026-99, 67800421 AND 69200599 (DOMESTIC, CANADA)
25
67800421
LENS (DOMESTIC, CANADA)
26
67800428
GASKET (DOMESTIC, CANADA)
27
69200128
HARNESS REAR LAMPS, WITH 10006, 70522-06B, 73156-96BK, 73191-96, 72168-07 AND 72414-07BK
28
69200599
JUMPER HARNESS, WITH 2, 17, 18, 20, 21 AND 23
