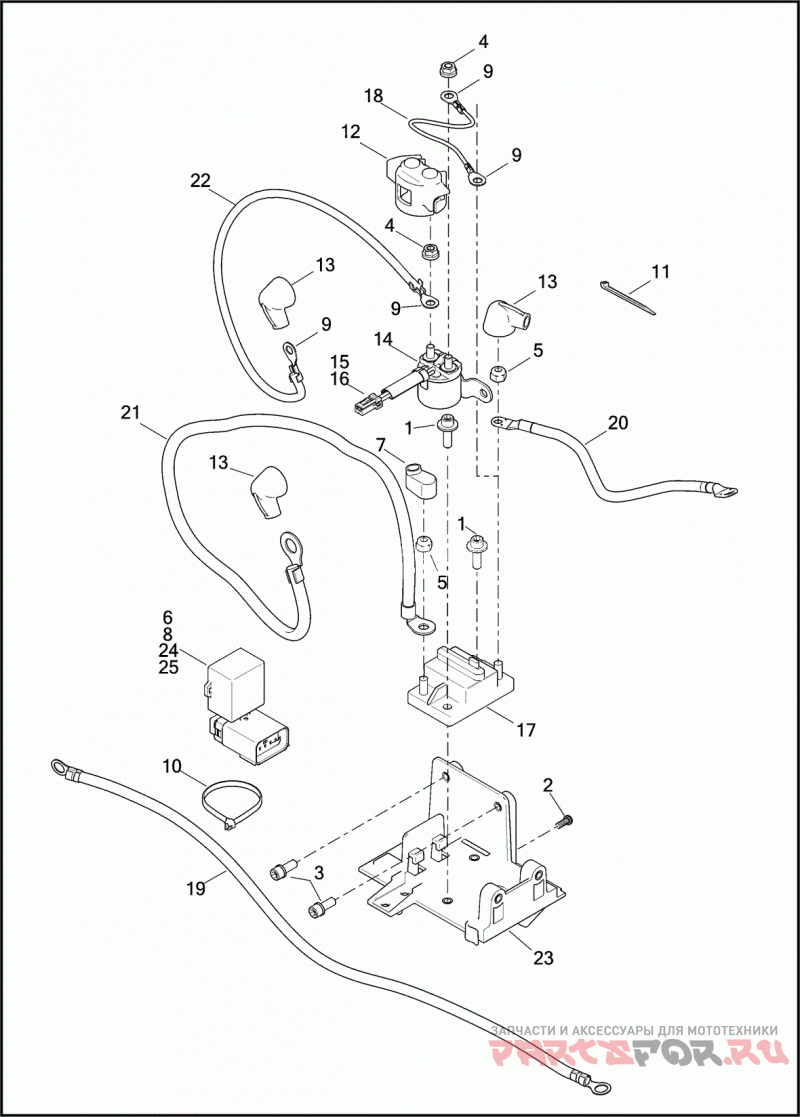

REVERSE CONTROL MODULE

Harley Davidson FLRT 1MCM FREEWHEELER (2016)

Harley Davidson
#oem кодцена
1
882
SCREW 1/4-20 X 7/8 KNURLED HD., W/WASHER (GRADE 8)
2
1062
SCREW 1/4-20 X 5/8 TORX HD. (GRADE 8)
3
4705
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH
4
7358
NUT M6 X 1 FLANGE
5
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
6
8339
SEAL PIN
7
8348
BOOT RUBBER
8
8370
TERMINAL MALE, 18-20 AWG
9
9825
TERMINAL RING 14-18 AWG
10
10006
CABLE STRAP
11
10039
CABLE STRAP
12
70018-07
BOOT SOLENOID COVER
13
70578-89
BOOT RUBBER
14
71474-07
SOLENOID STARTER, REVERSE CONTROL MODULE, WITH 73152-96BK AND 73191-96
15
73152-96BK
SOCKET HOUSING TWO-WAY, (BLACK)
16
73191-96
TERMINAL SOCKET, 16-20 AWG
17
83869-09
CIRCUIT BREAKER 150A
18
83876-09
JUMPER 14 AWG, WITH 9825
19
83898-09A
JUMPER REVERSE MOTOR GROUND, 6 AWG
20
69200407
CABLE STARTER POSITIVE TO CIRCUIT BREAKER, WITH 70578-89
21
69200408
CABLE CIRCUIT BREAKER TO REVERSE MOTOR, WITH 8348 AND 70578-89
22
69200409
CABLE REVERSE CONTROL SOLENOID TO REVERSE MOTOR, WITH 9825 AND 70578-89
23
69201422
CADDY ELECTRIC REVERSE
24
69200421
MODULE REVERSE, WITH 8339, 8370 AND 69200462
25
69200462
HOUSING EIGHT-WAY PIN
