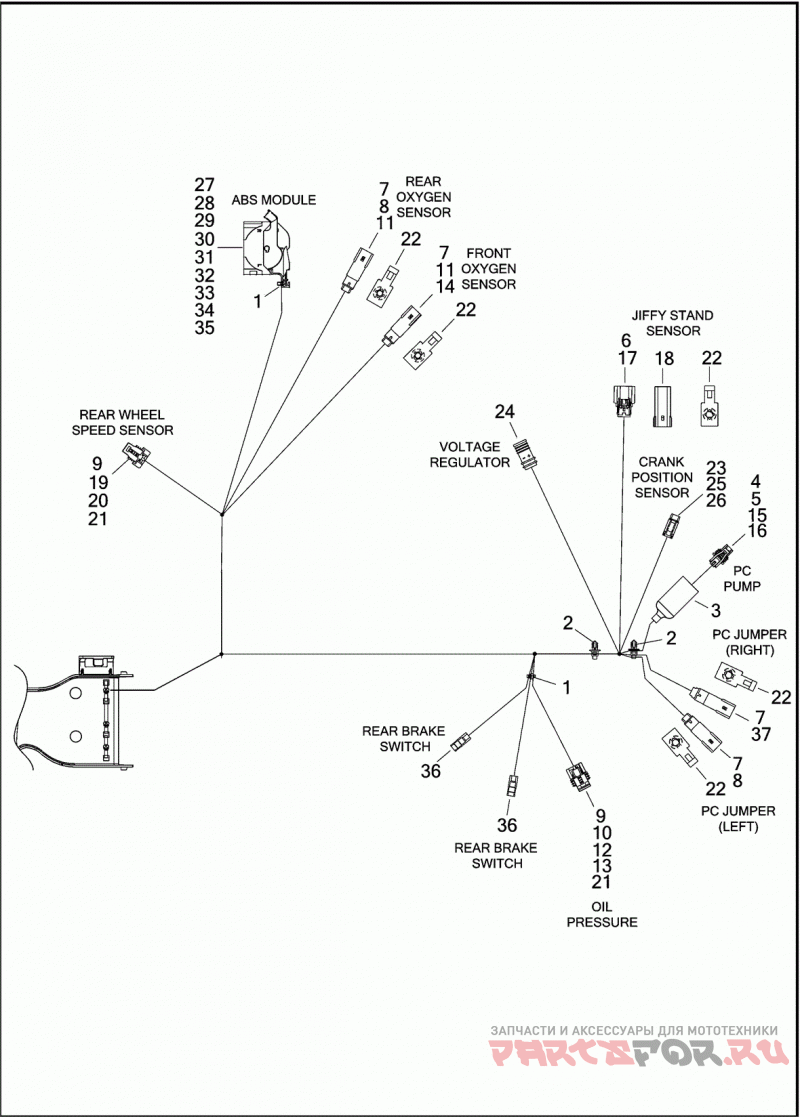

WIRING HARNESS, MAIN (7 OF 8)

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2016)

Harley Davidson
#oem кодцена
69201288A
MAIN WIRE HARNESS,ABS,FLHXSE
1
10065
CABLE STRAP
2
10177
CABLE STRAP ANCHORED
3
70598-99
чехол
4
72063-06
HOUSING TWO-WAY SOCKET (BLACK)
5
72111-06
SECONDARY LOCK TWO-WAY SOCKET (GRAY)
6
72168-07
TERMINAL SOCKET, 18-20 AWG
7
72169-07
TERMINAL PIN, 16-20 AWG
8
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
9
72213-94
TERMINAL SOCKET, 16-20 AWG
10
72232-96
SEAL PLUG
11
72343-10
TERMINAL PIN, 16-20 AWG
12
72400-99
HOUSING FOUR-WAY SOCKET (BLACK)
13
72403-99
SECONDARY LOCK FOUR-WAY SOCKET (BLACK)
14
72415-07GY
HOUSING FOUR-WAY PIN (GRAY)
15
72484-08
TERMINAL SOCKET, 20 AWG
16
72486-08
WIRE SEAL 20 AWG (GREEN)
17
72512-07BK
HOUSING THREE-WAY SOCKET (BLACK)
18
72519-09BK
DUST CAP THREE-WAY SOCKET (BLACK)
19
72606-08
HOUSING TWO-WAY SOCKET (BLACK)
20
72609-08
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
21
72610-08
WIRE SEAL 18-20 AWG (WHITE)
22
73213-07
RETAINER ANCHORED
23
74112-98BK
HOUSING TWO-WAY SOCKET (BLACK)
24
74120-08
DC LEAD ASSEMBLY
25
74152-98
SECONDARY LOCK TWO-WAY SOCKET (ORANGE)
26
74191-98
TERMINAL SOCKET, 16-20 AWG
27
69200183
HOUSING 26-WAY SOCKET
28
69200184
COVER 26-WAY SOCKET
29
69200185
TERMINAL SOCKET, 20 AWG
30
69200186
TERMINAL SOCKET, 14-16 AWG
31
69200187
TERMINAL SOCKET, 12 AWG
32
69200188
WIRE SEAL 20 AWG (GRAY)
33
69200189
WIRE SEAL 14-16 AWG (BROWN)
34
69200190
WIRE SEAL 12 AWG (BLUE)
35
69200191
SEAL PIN
36
69200238
TERMINAL INSULATED
37
69200272
HOUSING TWO-WAY PIN (BLACK)
