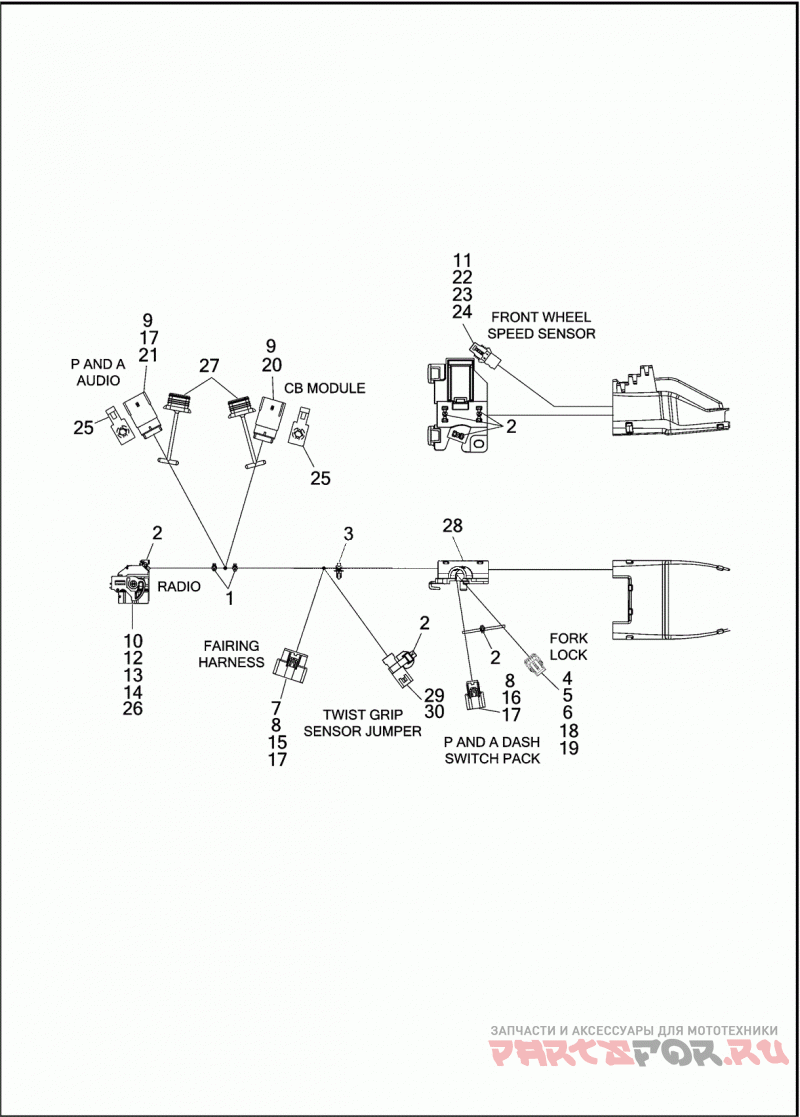

WIRING HARNESS, MAIN (2 OF 8)

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2016)

Harley Davidson
#oem кодцена
69201288A
MAIN WIRE HARNESS,ABS,FLHXSE
1
10006
CABLE STRAP
2
10065
CABLE STRAP
3
10177
CABLE STRAP ANCHORED
4
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
5
72097-06
SEAL PIN
6
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
7
72166-07BK
HOUSING 16-WAY SOCKET (BLACK)
8
72168-07
TERMINAL SOCKET, 18-20 AWG
9
72169-07
TERMINAL PIN, 16-20 AWG
10
72209-11
COVER WIRE DRESS
11
72213-94
TERMINAL SOCKET, 16-20 AWG
12
72222-11
TERMINAL SOCKET, 18-20 AWG
13
72226-11
TERMINAL SOCKET, 14-16 AWG
14
72256-11
SEAL PIN
15
72272-07
TERMINAL SOCKET, 14-16 AWG
16
72414-07BK
HOUSING SIX-WAY SOCKET (BLACK)
17
72473-07
SEAL PIN
18
72484-08
TERMINAL SOCKET, 20 AWG
19
72486-08
WIRE SEAL 20 AWG (GREEN)
20
72488-07BK
HOUSING 12-WAY PIN (BLACK)
21
72490-07GY
HOUSING 12-WAY PIN (GRAY)
22
72606-08
HOUSING TWO-WAY SOCKET (BLACK)
23
72609-08
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
24
72610-08
WIRE SEAL 18-20 AWG (WHITE)
25
73213-07
RETAINER ANCHORED
26
69200193
HOUSING 48-WAY SOCKET (BLACK)
27
69200205
WEATHER PLUG 12-WAY PIN
28
69200215
CADDY RIGHT STEER HEAD
29
69201163
HOUSING SIX-WAY PIN (BLACK)
30
69201164
TERMINAL PIN, 22 AWG
