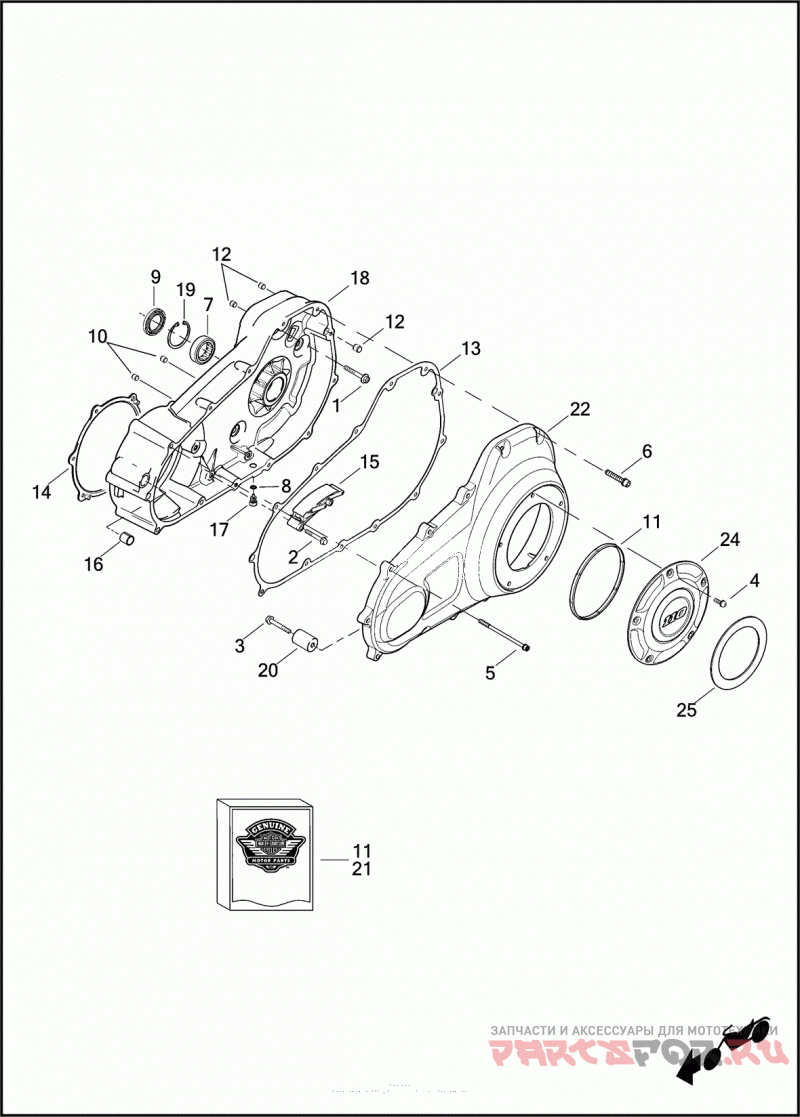

PRIMARY HOUSING

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2016)

Harley Davidson
#oem кодцена
1
786A
BOLT 5/16-18 X 2-1/4 HEX HD. (GRADE 5)
2
791A
SCREW 3/8-18 X 2-1/4 HEX FLANGE HD. (GRADE 5)
3
791A
SCREW 3/8-18 X 2-1/4 HEX FLANGE HD. (GRADE 5)
4
1062
SCREW 1/4-20 X 5/8 TORX HD. (GRADE 8)
5
1780
Винт
6
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
7
9231
Подшипник
8
11105
Уплотнительное кольцо
9
12052A
Уплотнение
10
16583-00A
DOWEL BUSHING
11
17369-06
GASKET SERVICE KIT 1000 MI (1600 KM), 5000 MI (8000 KM), 10,000 MI (16,000 KM), WITH 11105 AND SEAL CLUTCH COVER
12
24754-75A
DOWEL BUSHING STARTER
13
34901-07
GASKET PRIMARY COVER
14
34948-08
GASKET PRIMARY HOUSING TO CASE
15
39929-06B
CHAIN TENSIONER ASSEMBLY
16
42642-00A
Втулка
17
60328-98B
PLUG MAGNETIC DRAIN WITH 11105
18
60432-07A
INNER PRIMARY HOUSING WITH 9231, 12052A, 16583-00A, 42642-00A, 60328-98B AND 60678-85 (BLACK)
18
60850-08A
INNER PRIMARY HOUSING WITH 9231, 12052A, 16583-00A, 42642-00A, 60328-98B AND 60678-85 (GRAY GRANITE)
19
60678-85
Стопорное кольцо
20
60818-07
SLEEVE DAMPENER (JAPAN)
21
25700226
GASKET KIT INNER PRIMARY
22
25700438
COVER PRIMARY (BLACK)
22
25700385
COVER PRIMARY (CHROME)
24
25700553
COVER ASSEMBLY CLUTCH, WITH 25800053 (CHROME)
25
25800053
INSERT CLUTCH COVER
