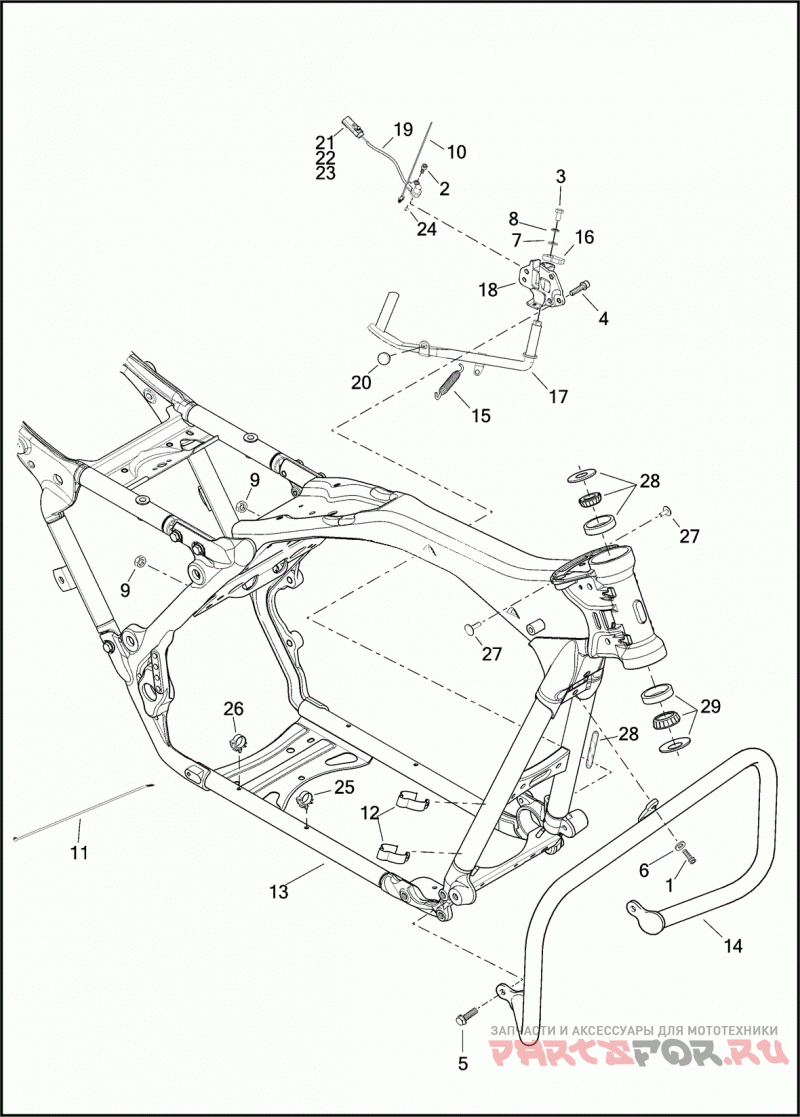

FRAME AND JIFFY STAND

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2016)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
4
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
5
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
6
6116
WASHER 5/16 X 16/16 X 1/8
7
6702
WASHER 5/16 X 11/16 X 1/16
8
7041
LOCKWASHER 5/16
9
7495
NUT M6 FLANGE
10
10177
CABLE STRAP ANCHORED, JIFFY STAND (ENGLAND, HDI)
11
10039
CABLE STRAP
12
10264
CLIP CLUTCH LINE
13
47900-14BHP
FRAME MAIN, WITH BEARING CUPS (ALSO ORDER 45700009)
14
49184-09A
ENGINE GUARD WITH 2708A, 6116 AND LABEL (CHROME)
14
49050-09A
ENGINE GUARD WITH 2708A, 6116 AND LABEL (BLACK)
15
49725-07A
SPRING JIFFY STAND
16
50015-74A
LEG STOP
17
50075-07A
LEG JIFFY STAND
18
50096-09
BRACKET JIFFY STAND
19
50126-08A
SENSOR JIFFY STAND, WITH 72169-07, 72511-07BK AND 73213-07 (ENGLAND, HDI)
20
50245-07
BUMPER JIFFY STAND
21
72169-07
TERMINAL PIN, 16-20 AWG (ENGLAND, HDI)
22
72511-07BK
HOUSING THREE-WAY PIN (BLACK) (ENGLAND, HDI)
23
73213-07
RETAINER ANCHORED (ENGLAND, HDI)
24
90520-07
HOLE PLUG JIFFY STAND (EXCEPT ENGLAND, HDI)
25
10800024
CLIP CONDUIT, ROSEBUD
26
10800025
CLIP CONDUIT, ROSEBUD
27
12600067
FASTENER PLASTIC
28
14000827
CLEAR OVERLAY VIN LABEL (JAPAN)
29
45700009
BEARING KIT STEERING HEAD, WITH BEARING CUPS, BEARING CONES AND DIRT GUARDS
