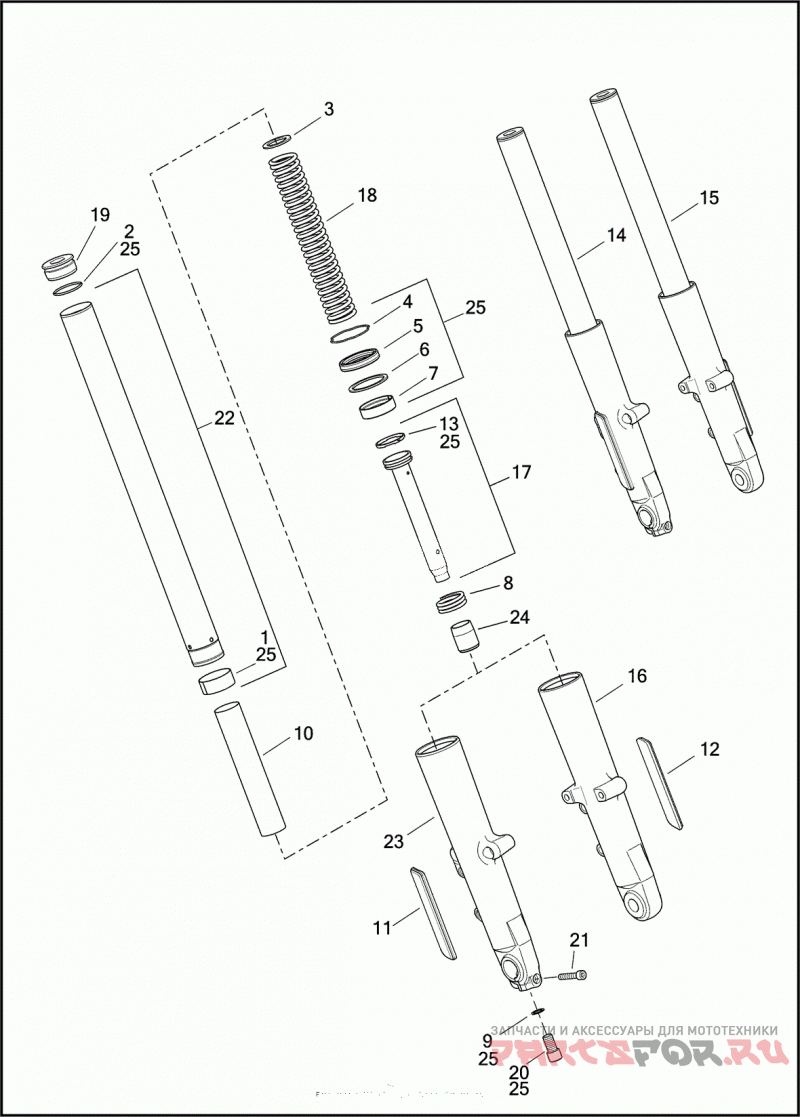

FORK, FRONT

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2016)

Harley Davidson
#oem кодцена
1
46080-01
BUSHING SLIDER
2
46508-01
Уплотнительное кольцо
3
46509-01
WASHER 30 X 43 X 2.3
4
46513-01
RING STOPPER
5
46514-01A
Сальник
6
46515-01
SPACER SEAL
7
46516-01
BUSHING GUIDE
8
46517-01
SPRING REBOUND
9
46615-06
PACKING SEAL
10
46510-07
COLLAR SPRING
11
59481-00
REFLECTOR (RIGHT) (AMBER)
12
59482-00
REFLECTOR (LEFT) (AMBER)
13
22000031
Кольцо поршневое
14
45400043
FORK ASSEMBLY COMPLETE (RIGHT)
15
45400044
FORK ASSEMBLY COMPLETE (LEFT)
16
45500174
SLIDER FORK (LEFT)
17
45500114
DAMPER TUBE WITH 22000031
18
45500116
SPRING FORK
19
45500117
BOLT FORK
20
45500118
SCREW M14 X 1.25 X 25 HEX SOCKET CAP (ZINC)
21
45500132
SCREW M8 X 1.25 X 45 HEX SOCKET CAP (GRADE 8.8)
22
45500113
FORK PIPE ASSEMBLY WITH 46080-01
23
45500173
SLIDER FORK (RIGHT)
24
45500251
OIL LOCK PIECE
25
91700025A
FORK REBUILD KIT WITH 1, 2, 4, 5, 6, 7, 9, 13 AND 20
