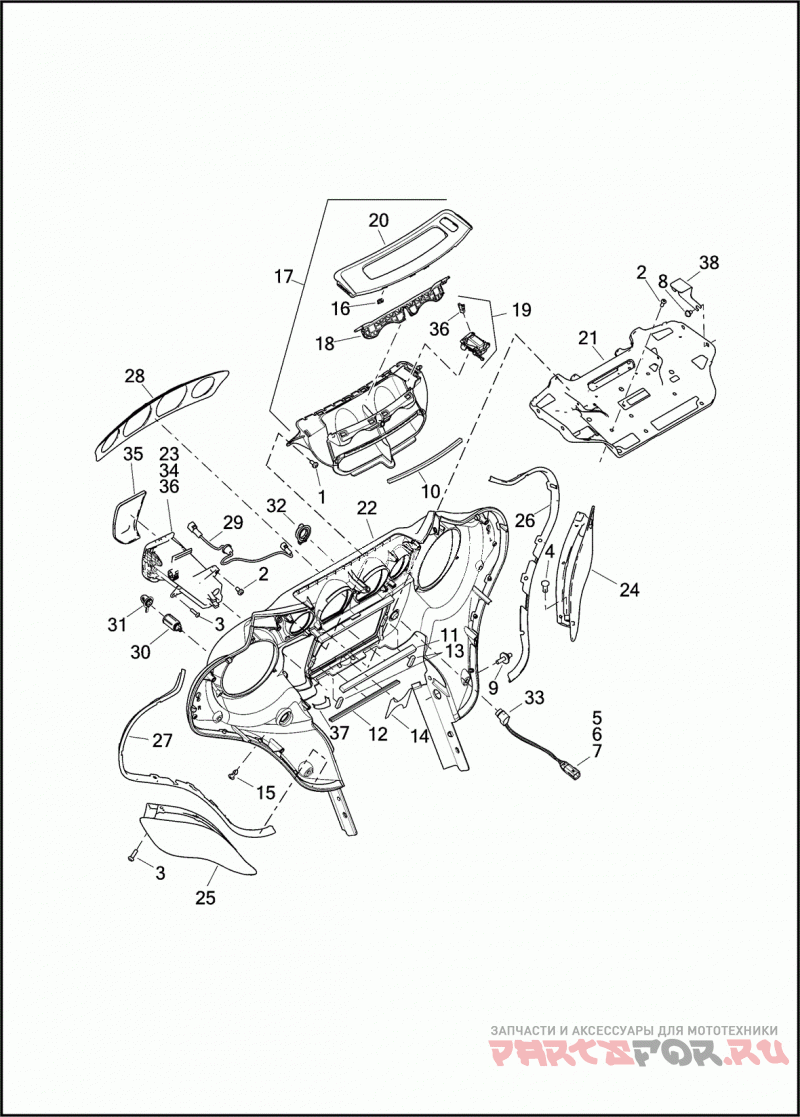

FAIRING, INNER

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2016)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
2478
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
3
2563
SCREW NO. 10-24 X 5/8 TORX BUTTON HD.
4
57638-08
SNAP HINGE AIR DEFLECTOR
5
72169-07
TERMINAL PIN, 16-20 AWG
6
72188-07BK
HOUSING SIX-WAY PIN (BLACK)
7
73213-07
RETAINER ANCHORED
8
10200141
SCREW 1/4-20 X 1/2 HEX SOCKET BUTTON HD. (ZINC)
9
10900005
STUD DOUBLE SIDED
10
11100038
FOAM TAPE
11
11100050
FOAM TAPE
12
11100051
FOAM TAPE
13
11100057
FOAM TAPE
14
11100105
Подушка изолирующая
15
12100034
Заглушка
16
12200064
CLIP PANEL
17
29200003
AIR DUCT INNER FAIRING, WITH 10, 16, 18, 19, 20 AND 36
18
29200034
DOOR TOP DUCT
19
29200035
BUTTON ASSEMBLY TOP DUCT, WITH 76000127
20
29200039
BEZEL AIR DUCT,INNER FAIRING, WITH 12200064
21
57000186
BRACKET SUPPORT, INNER FAIRING
22
57000417EAZ
INNER FAIRING ASSEMBLY WITH 11, 12, 13, 14, 26, 27, 28, 32, 33 AND 37 (BLACK LICORICE)
22
57000417EBC
INNER FAIRING ASSEMBLY WITH 11, 12, 13, 14, 26, 27, 28, 32, 33 AND 37 (ATOMIC RED)
22
57000417DXK
INNER FAIRING ASSEMBLY WITH 11, 12, 13, 14, 26, 27, 28, 32, 33 AND 37 (CARBON DUST)
23
57000299
FOAM INSERT MEDIA COMPARTMENT
24
57200012
AIR DEFLECTOR WITH 57638-08 (LEFT)
25
57200017
AIR DEFLECTOR WITH 57638-08 (RIGHT)
26
61400063
TRIM INNER FAIRING (LEFT)
27
61400064
TRIM INNER FAIRING (RIGHT)
28
61400253
Планка
29
69200031
WIRE HARNESS USB JUMPER
30
69200170
POWER OUTLET FAIRING, WITH 69200171
31
69200171
CAP POWER OUTLET
32
69200237
WEATHER CAP
33
69201025
WIRE HARNESS AUDIO, WITH 5, 6, 7
34
76000107
MEDIA COMPARTMENT ASSEMBLY WITH 57000299, 69200031 AND 76000127
35
76000561EAZ
DOOR MEDIA COMPARTMENT, OUTER (BLACK LICORICE)
35
76000561EBC
DOOR MEDIA COMPARTMENT, OUTER (ATOMIC RED)
35
76000561DXK
DOOR MEDIA COMPARTMENT, OUTER (CARBON DUST)
36
76000127
Защёлка
37
76000234
GASKET MEDIA STORAGE
38
76000504
BRACKET XM ANTENNA
