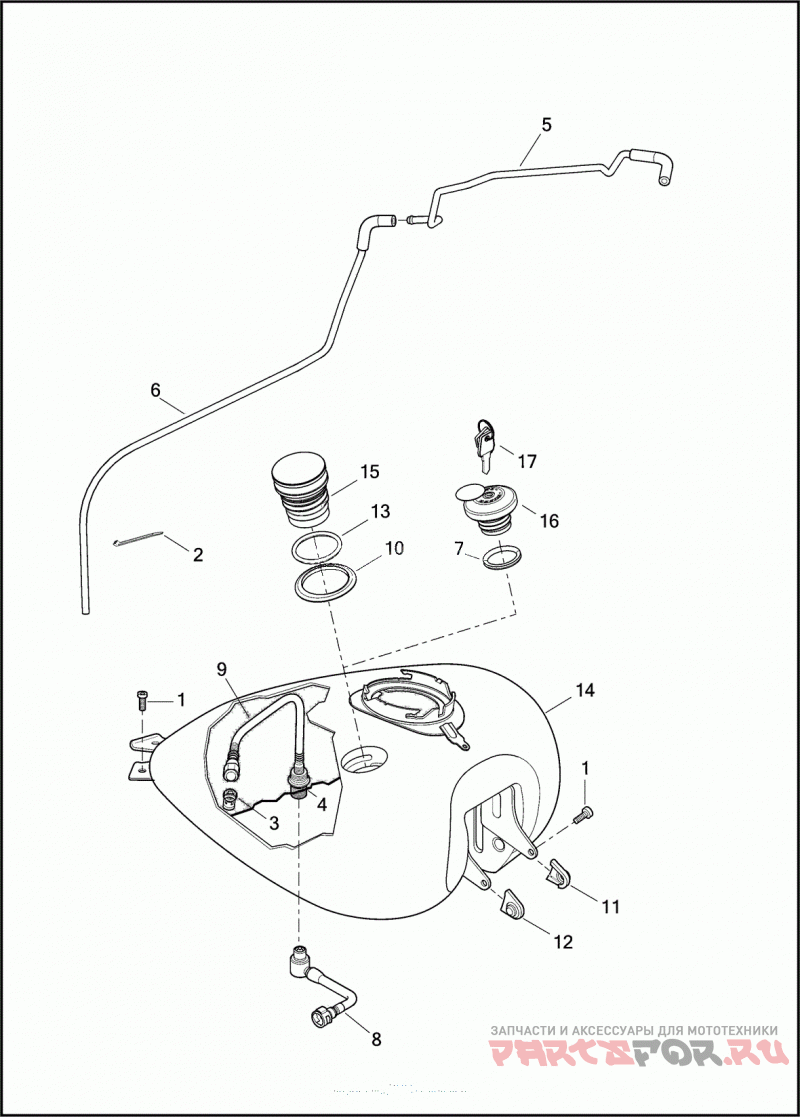

Топливный бак

Harley Davidson FLHXSE 1PXN CVO STREET GLIDE (2016)

Harley Davidson
#oem кодцена
1
3634
SCREW 5/16-18 X 1.0 SELF-TAPPING
2
10039
CABLE STRAP
3
10396
RETAINER FUEL LINE 3/8 (NATURAL)
4
11323A
Уплотнительное кольцо
5
27291-09A
EVAP LINE EVAPORATIVE LINE, TANK
6
27440-09A
TUBE EVAPORATIVE LINE (EXCEPT CALIFORNIA)
7
61109-85D
GASKET (ASIA-PACIFIC)
8
61208-10
FUEL LINE TANK TO INTAKE
9
62228-08C
CHECK VALVE ASSEMBLY WITH 10396
10
63028-06
TRIM RING (CHROME)
10
75015-08
TRIM RING (BLACK)
11
70901-09
BOOT TANK BRACKET (LEFT)
12
70999-09
BOOT TANK BRACKET (RIGHT)
13
11900004
O-RING FILLER CAP
14
61000168EBF
FUEL TANK (WHITE AMETHYST AND BLACK LICORICE FLAMES)
14
61000168EBI
FUEL TANK (BLACK LICORICE AND MIDNIGHT COBALT FLAMES)
14
61000168EBH
FUEL TANK (ATOMIC RED AND CANDY APPLE FLAMES)
14
61000255EBR
FUEL TANK (CARBON CRYSTAL)
15
61100052
FUEL CAP ASSEMBLY FLUSH MOUNT, WITH 11900004 (CHROME)
15
63136-10A
FUEL CAP ASSEMBLY FLUSH MOUNT, WITH 11900004 (BLACK)
16
61100055
FUEL CAP ASSEMBLY FLUSH MOUNT, WITH 61109-85D AND 90300093 (ASIA-PACIFIC)
17
90300093
KEY LOCKING FUEL CAP (SET OF 2) (SPECIFY KEY NUMBER) (ASIA-PACIFIC)
