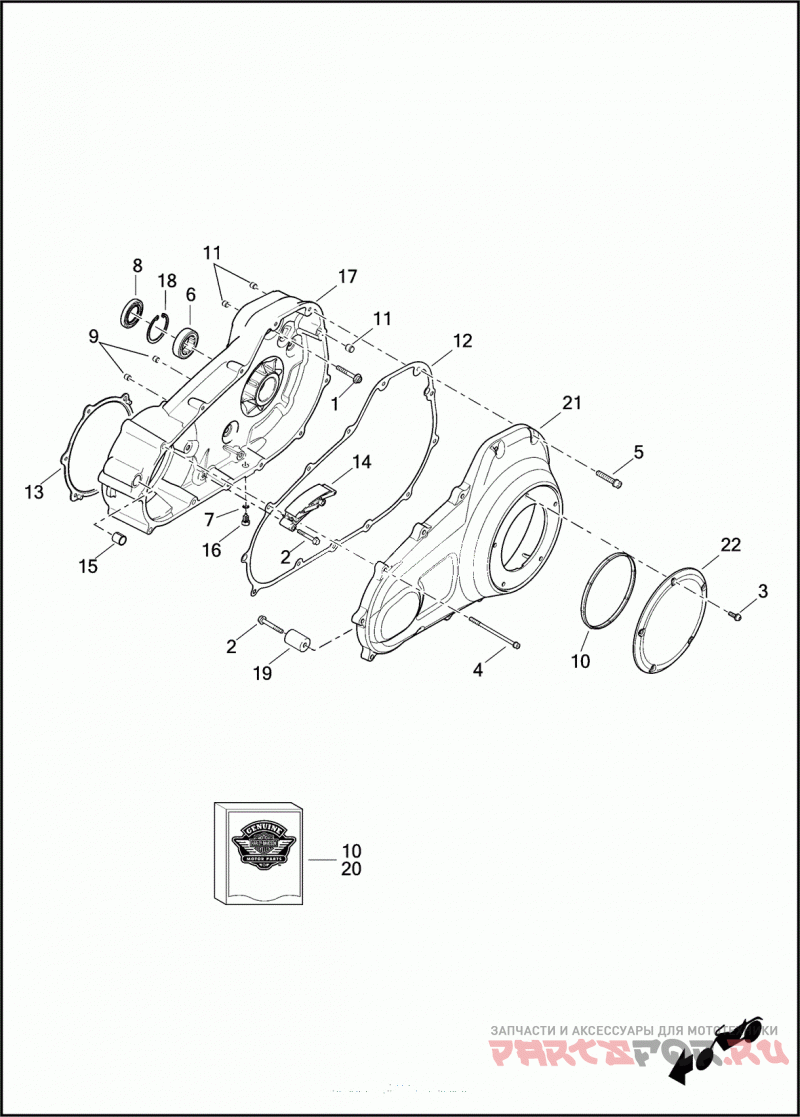

PRIMARY HOUSING

Harley Davidson FLHXS 1KRM STREET GLIDE SPECIAL (2016)

Harley Davidson
#oem кодцена
1
786A
BOLT 5/16-18 X 2-1/4 HEX HD. (GRADE 5)
2
791A
SCREW 3/8-18 X 2-1/4 HEX FLANGE HD. (GRADE 5)
3
1062
SCREW 1/4-20 X 5/8 TORX HD. (GRADE 8)
4
1780
Винт
5
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
6
9231
Подшипник
7
11105
Уплотнительное кольцо
8
12052A
Уплотнение
9
16583-00A
BUSHING DOWEL
10
17369-06
GASKET SERVICE KIT 1000 MI (1600 KM), 5000 MI (8000 KM), 10,000 MI (16,000 KM), WITH 11105 AND CLUTCH COVER SEAL
11
24754-75A
DOWEL BUSHING
12
34901-07
GASKET PRIMARY COVER
13
34934-06
GASKET PRIMARY HOUSING TO CASE
14
39929-06B
CHAIN TENSIONER ASSEMBLY
15
42642-00A
Втулка
16
60328-98B
PLUG MAGNETIC DRAIN, WITH 11105
17
60432-07A
INNER PRIMARY HOUSING WITH 9231, 12052A, 16583-00A, 42642-00A, 60328-98B AND 60678-85 (BLACK)
18
60678-85
Стопорное кольцо
19
60818-07
SLEEVE DAMPENER (JAPAN)
20
25700226
GASKET KIT INNER PRIMARY
21
25700385
COVER PRIMARY (CHROME)
22
25700388
COVER CLUTCH (CHROME)
