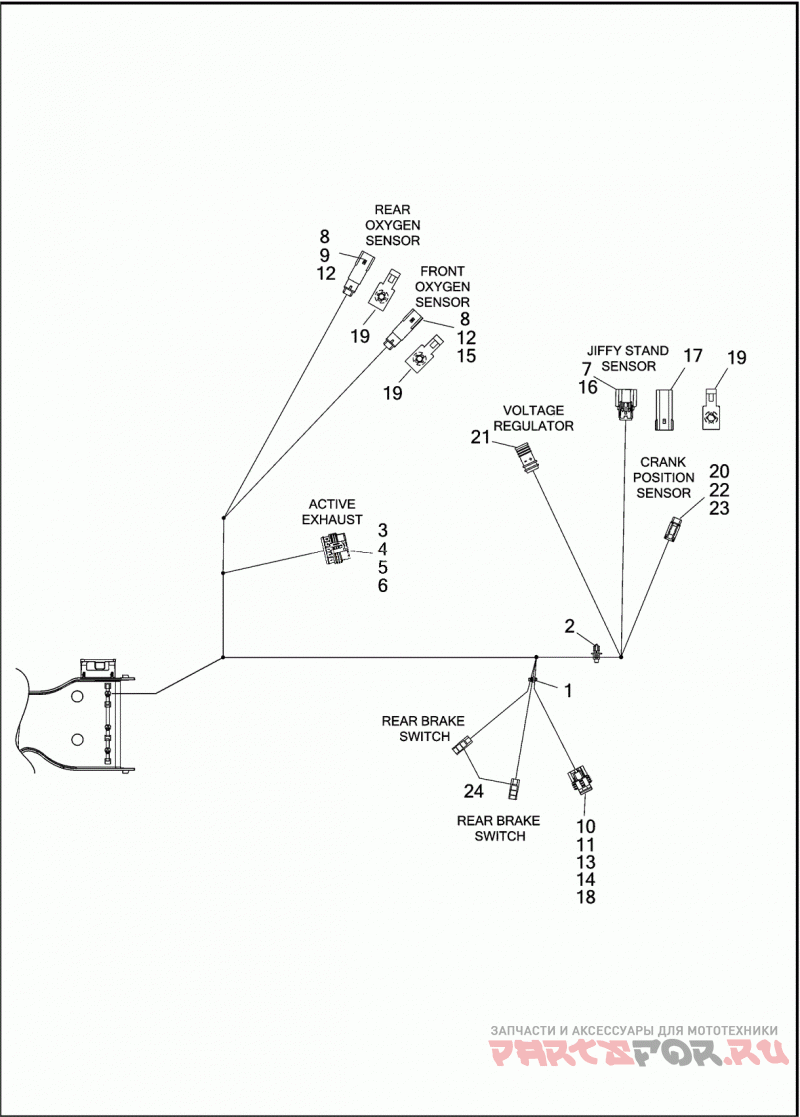

WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (7 OF 8)

Harley Davidson FLHX 1KBM STREET GLIDE (2016)

Harley Davidson
#oem кодцена
69201316A
MAIN WIRE HARNESS,FLHX
1
10065
CABLE STRAP
2
10177
CABLE STRAP ANCHORED
3
72010-05
WIRE SEAL 22-26 AWG (GREEN)
4
72012-07
HOUSING FIVE-WAY SOCKET
5
72014-07
SEAL PIN
6
72024-08
TERMINAL SOCKET, 20-22 AWG
7
72168-07
TERMINAL SOCKET, 18-20 AWG
8
72169-07
TERMINAL PIN, 16-20 AWG
9
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
10
72213-94
TERMINAL SOCKET, 16-20 AWG
11
72232-96
SEAL PLUG
12
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
13
72400-99
CONNECTOR FOUR-WAY
14
72403-99
SECONDARY LOCK FOUR-WAY
15
72415-07GY
HOUSING FOUR-WAY PIN (GRAY)
16
72512-07BK
HOUSING THREE-WAY SOCKET (BLACK)
17
72519-09BK
DUST CAP THREE-WAY SOCKET (BLACK)
18
72610-08
SEAL 18-20 AWG (WHITE)
19
73213-07
RETAINER ANCHORED
20
74112-98BK
HOUSING TWO-WAY SOCKET (BLACK)
21
74120-08
DC LEAD ASSEMBLY
22
74152-98
SECONDARY LOCK TWO-WAY SOCKET
23
74191-98
TERMINAL SOCKET
24
69200238
TERMINAL 20 AWG (BLACK)
