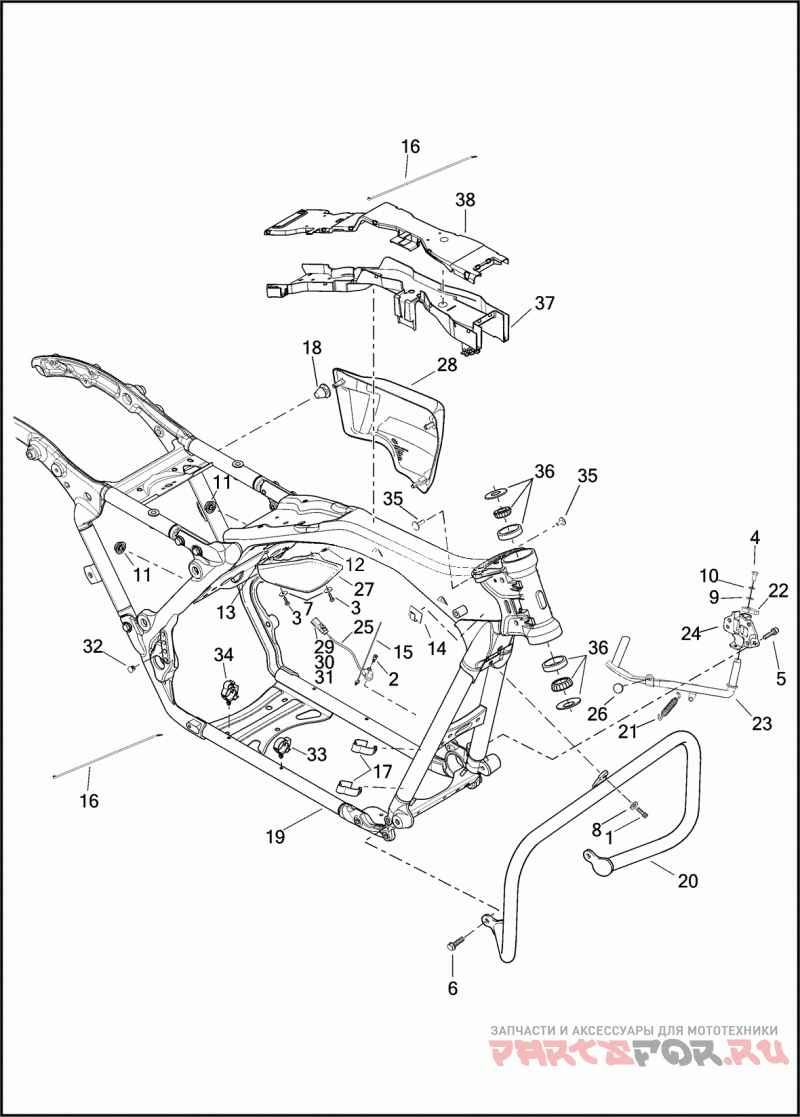

FRAME AND JIFFY STAND

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2016)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
6
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
7
6036
WASHER 17/64 X 1 X 1/16
8
6116
WASHER 5/16 X 16/16 X 1/8
9
6702
WASHER 5/16 X 11/16 X 1/16
10
7041
LOCKWASHER 5/16
11
7495
NUT M6 FLANGE
12
8108
SPEEDNUT 1/4-20
13
8194
NUT SPECIAL
14
10102
CLIP ADHESIVE BACKED
15
10177
CABLE STRAP ANCHORED, JIFFY STAND
16
10039
CABLE STRAP
17
10264
CLIP CLUTCH LINE
18
11650
GROMMET SIDE COVER
19
47900-14BHP
FRAME MAIN, WITH BEARING CUPS (ALSO ORDER 45700009)
20
49184-09A
ENGINE GUARD WITH 2708A, 6116 AND 14148-86
21
49725-07A
SPRING JIFFY STAND
22
50015-74A
LEG STOP
23
50075-07A
LEG JIFFY STAND
24
50096-09
BRACKET JIFFY STAND LEG
25
50126-08A
SENSOR JIFFY STAND, WITH 72169-07, 72511-07BK AND 73213-07
26
50245-07
BUMPER JIFFY STAND LEG
27
58167-09A
DEFLECTOR AIR (RIGHT)
27
58169-09
DEFLECTOR AIR (LEFT)
28
66048-09A
SIDE COVER (RIGHT) (UNPAINTED)
28
66250-09
SIDE COVER (LEFT) (UNPAINTED)
29
72169-07
TERMINAL PIN, 16-20 AWG
30
72511-07BK
HOUSING PIN, THREE-WAY (BLACK)
31
73213-07
RETAINER ANCHORED
32
90493-83
PLUG (BLACK)
33
10800024
CLIP CONDUIT, ANCHORED
34
10800025
CLIP CONDUIT, ANCHORED
35
12600067
FASTENER PLASTIC
36
45700009
BEARING KIT STEERING HEAD, WITH BEARING CUPS, BEARING CONES AND DIRT GUARDS
37
69200202A
WIRE TROUGH
38
69200203A
COVER WIRE TROUGH, WITH 15368-01A AND 69201459
