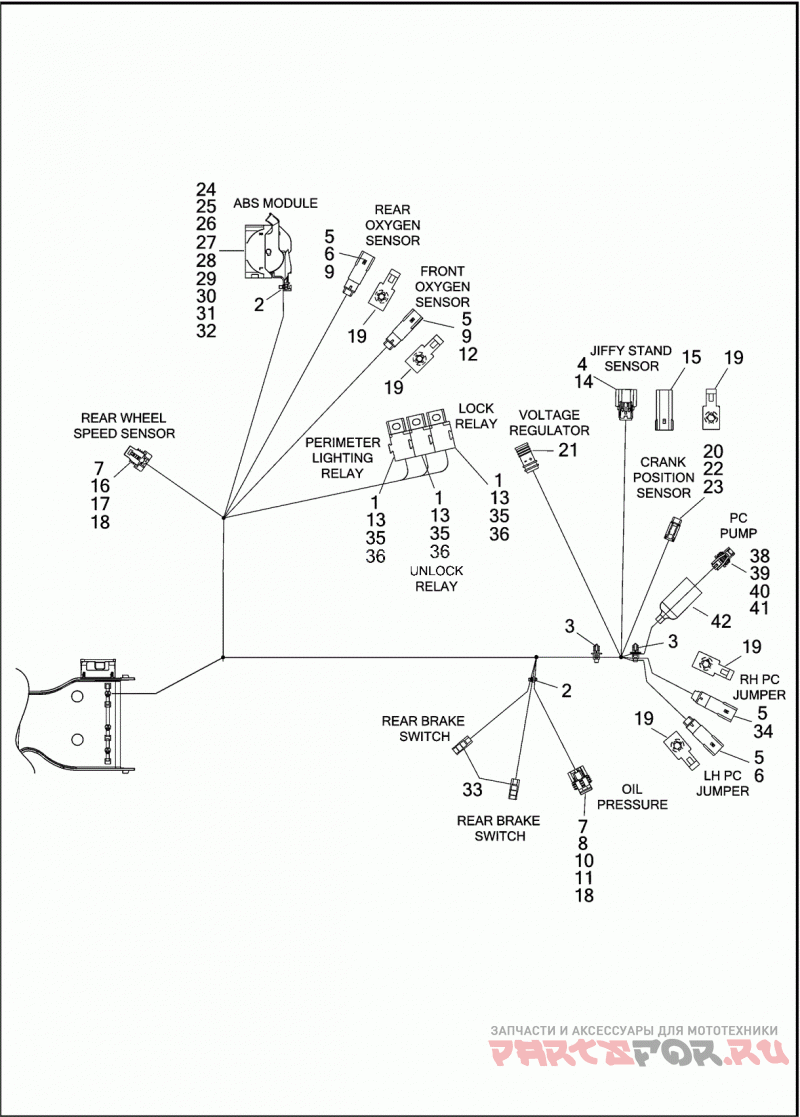

WIRING HARNESS, MAIN (7 OF 8)

Harley Davidson FLHTKSE 1TEN CVO LIMITED (2016)

Harley Davidson
#oem кодцена
69201186A
MAIN WIRING HARNESS,FLHTKSE W/ABS
1
9937
TERMINAL FEMALE SPADE, 14-18 AWG
2
10065
CABLE STRAP
3
10177
CABLE STRAP TREE MOUNT
4
72168-07
TERMINAL SOCKET, 18-20 AWG
5
72169-07
TERMINAL PIN, 16-20 AWG
6
72175-07BK
HOUSING 4-WAY PIN (BLACK)
7
72213-94
TERMINAL SOCKET, FEMALE, 16-20 AWG
8
72232-96
SEAL PLUG
9
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
10
72400-99
CONNECTOR 4-WAY
11
72403-99
SECONDARY LOCK 4-WAY
12
72415-07GY
HOUSING 4-WAY PIN (GRAY)
13
72427-00
TERMINAL FAST-ON, 16-20 AWG
14
72512-07BK
HOUSING 3-WAY SOCKET (BLACK)
15
72519-09BK
DUST CAP 3-WAY SOCKET (BLACK)
16
72606-08
HOUSING 2-WAY SOCKET
17
72609-08
SECONDARY LOCK 2-WAY SOCKET (BLACK)
18
72610-08
SEAL 18-20 AWG (WHITE)
19
73213-07
RETAINER X-MAS TREE CLIP
20
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
21
74120-08
DC LEAD ASSEMBLY
22
74152-98
SECONDARY LOCK 2-WAY SOCKET
23
74191-98
TERMINAL SOCKET
24
69200183
HOUSING 26-WAY SOCKET
25
69200184
COVER 26-WAY SOCKET
26
69200185
TERMINAL SOCKET, 20 AWG
27
69200186
TERMINAL SOCKET, 14-16 AWG
28
69200187
TERMINAL SOCKET, 12 AWG
29
69200188
WIRE SEAL 20 AWG
30
69200189
WIRE SEAL 14-16 AWG
31
69200190
WIRE SEAL 12 AWG
32
69200191
SEAL PIN
33
69200238
TERMINAL 20 AWG (BLACK)
34
69200272
HOUSING 2-WAY PIN
35
69200600
FUSE BLOCK 5-WAY RELAY SOCKET
36
71400100
RELAY 5-WAY RELAY SOCKET
37
11100115
CLOTH HARNESS WRAP, 50M (NOT SHOWN)
38
72486-08
WIRE SEAL 20 AWG (GREEN)
39
72484-08
TERMINAL SOCKET, 20 AWG
40
72111-06
SECONDARY LOCK TWO-WAY SOCKET
41
72063-06
HOUSING TWO-WAY SOCKET (BLACK)
42
70598-99
чехол
