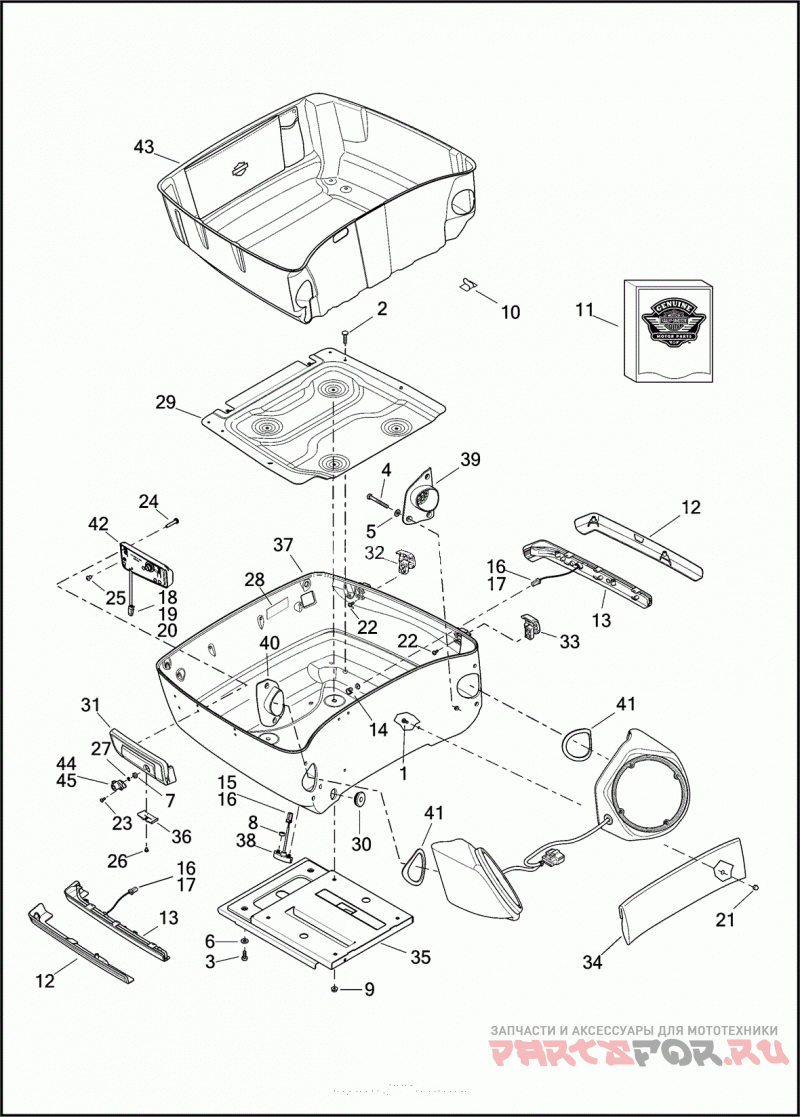

TOUR-PAK (BOTTOM)

Harley Davidson FLHTKSE 1TEN CVO LIMITED (2016)

Harley Davidson
#oem кодцена
1
2724
SCREW NO. 10-16 X 1/2 (GRADE 2) (CHROME)
2
2968
SCREW NO. 8-32 X 3/4 TORX PAN HD.
3
3767B
BOLT 1/4-20 X 5/8 HEX HD. (GRADE 5)
4
3910
SCREW 1/2-20 X 2-1/4 HEX HD. FULL THREAD (GRADE 5) (ZINC)
5
6703
WASHER 1/4 X 5/8 X 1/16
6
6703
WASHER 1/4 X 5/8 X 1/16
7
7586
JAMNUT 9/32-28 X 1/4
8
7676
NUT 1/4-28 X 7/32 X 7/16 (GRADE 2)
9
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
10
10102
Зажим
11
53629-10
LINER TOUR-PAK
12
53734-06
TRIM BOTTOM (LEFT) (CHROME) (HDI)
12
53735-06
TRIM BOTTOM (RIGHT) (CHROME) (HDI)
13
54353-09
LIGHT BOTTOM, SIDEMARKER, WITH 73152-96BK AND 73191-96 (RIGHT) (DOMESTIC)
13
54355-09
LIGHT BOTTOM, SIDEMARKER, WITH 73152-96BK AND 73191-96 (LEFT) (DOMESTIC)
14
57978-00
GROMMET (DOMESTIC)
15
72560-07
TERMINAL SOCKET, 22 AWG
16
73152-96BK
HOUSING TWO-WAY SOCKET (BLACK) (DOMESTIC)
17
73191-96
TERMINAL SOCKET, 16-20 AWG (DOMESTIC)
18
74112-98BK
HOUSING TWO-WAY SOCKET (BLACK)
19
74152-98
SECONDARY LOCK TWO-WAY SOCKET (ORANGE)
20
74191-98
TERMINAL SOCKET, 16-20 AWG
21
90844-80
ACORN NUT NO. 10 X 3/8 FLANGE (GRADE 2)
22
10200061
SCREW NO. 8-32 X 1/2 TORX SEMS PAN HD. (ZINC)
23
10200062
SCREW NO. 8-32 X 3/8 TORX PAN HD. (ZINC)
24
10200064
SCREW NO. 8-32 X 1 TORX PAN HD. (ZINC)
25
10200220
SCREW NO. 8-16 X 1/2 TORX PAN HD. T-20 (ZINC)
26
10200225
Винт
27
10300047
Шайба
28
11100089
VELCRO PAD
29
53000091
PLATE TOUR-PAK REINFORCING
30
53000132
Уплотнитель резиновый
31
53000138
HASP ASSEMBLY BOTTOM
32
53000139
HINGE ASSEMBLY (REAR)
33
53000140
HINGE ASSEMBLY (FRONT)
34
53000308
COVER TOUR-PAK WIRING
35
53000311
ADAPTER PLATE TOUR-PAK (ASIA-PACIFIC)
36
53000312
COVER LATCH LOCK
37
53000346
BOTTOM TOUR-PAK (PRIME)
37
53000418EAS
BOTTOM TOUR-PAK (CARBON DUST AND ELECTRIC RED PEARL)
37
53000418EAT
BOTTOM TOUR-PAK (CHARCOAL SLATE AND PALLADIUM SILVER)
37
53000418EAU
BOTTOM TOUR-PAK (PALLADIUM SILVER AND PHANTOM BLUE)
38
68000066
LIGHT WITH 73152-96BK, 72560-07
39
76000172
MOUNTING BRACKET SPEAKER (LEFT)
40
76000173
MOUNTING BRACKET SPEAKER (RIGHT)
41
76000174
GASKET SPEAKER POD
42
91800039
ACTUATOR ASSEMBLY WITH 10200220
43
93300049
LINER MOLDED, WITH POUCH
44
90300113A
LOCKSET COMPLETE, WITH KEY AND FOB ASSEMBLY, FORK LOCK, TOUR-PAK AND SADDLEBAG LOCK (EXCEPT JAPAN)
44
90300114A
LOCKSET COMPLETE, WITH KEY AND FOB ASSEMBLY, FORK LOCK, TOUR-PAK AND SADDLEBAG LOCK (JAPAN)
45
90300081
CAM LOCK WITH 10300047
