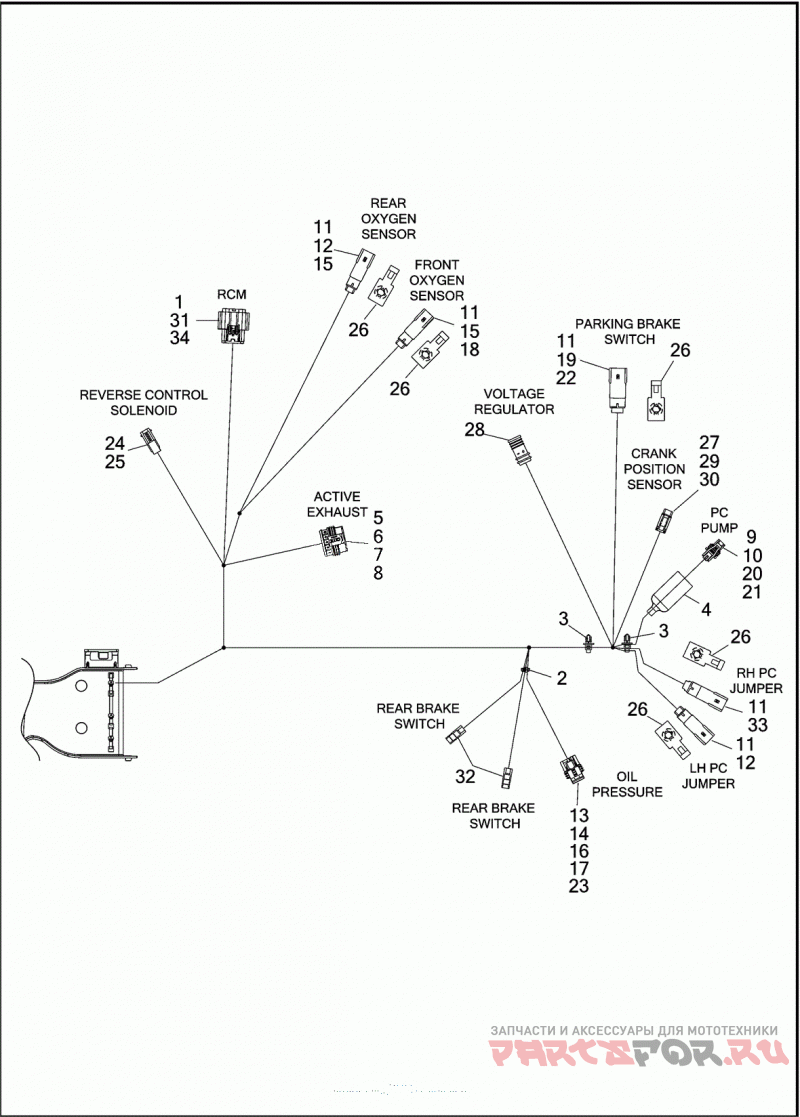

WIRING HARNESS, MAIN - FLHTCUTG (7 OF 8)

Harley Davidson FLHTCUTG 1MAL TRI GLIDE ULTRA CLASSIC (2016)

Harley Davidson
#oem кодцена
69201436A
MAIN WIRE HARNESS,FLHTCUTG
1
8339
SEAL PIN
2
10065
CABLE STRAP
3
10177
CABLE STRAP ANCHORED
4
70598-99
BOOT ENGINE TEMPERATURE SENSOR
5
72010-05
WIRE SEAL 22-26 AWG (GREEN)
6
72012-07
HOUSING FIVE-WAY SOCKET
7
72014-07
SEAL PIN
8
72024-08
TERMINAL SOCKET, 20-22 AWG
9
72063-06
HOUSING TWO-WAY SOCKET
10
72111-06
SECONDARY LOCK TWO-WAY SOCKET (GRAY)
11
72169-07
TERMINAL PIN, 16-20 AWG
12
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
13
72213-94
TERMINAL SOCKET, 16-20 AWG
14
72232-96
SEAL PLUG
15
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
16
72400-99
CONNECTOR FOUR-WAY
17
72403-99
SECONDARY LOCK FOUR-WAY
18
72415-07GY
HOUSING FOUR-WAY PIN (GRAY)
19
72473-07
SEAL PIN
20
72484-08
TERMINAL SOCKET, 20 AWG
21
72486-08
WIRE SEAL 20 AWG (GREEN)
22
72511-07BK
HOUSING THREE-WAY PIN (BLACK)
23
72610-08
SEAL 18-20 AWG (WHITE)
24
73102-96BK
HOUSING TWO-WAY PIN
25
73190-96
TERMINAL PIN, 16-20 AWG
26
73213-07
RETAINER ANCHORED
27
74112-98BK
HOUSING TWO-WAY SOCKET (BLACK)
28
74120-08
DC LEAD ASSEMBLY
29
74152-98
SECONDARY LOCK TWO-WAY SOCKET
30
74191-98
TERMINAL SOCKET
31
83944-09
TERMINAL SOCKET, 18-20 AWG
32
69200238
TERMINAL 20 AWG (BLACK)
33
69200272
HOUSING TWO-WAY PIN
34
69200461
HOUSING EIGHT-WAY SOCKET
