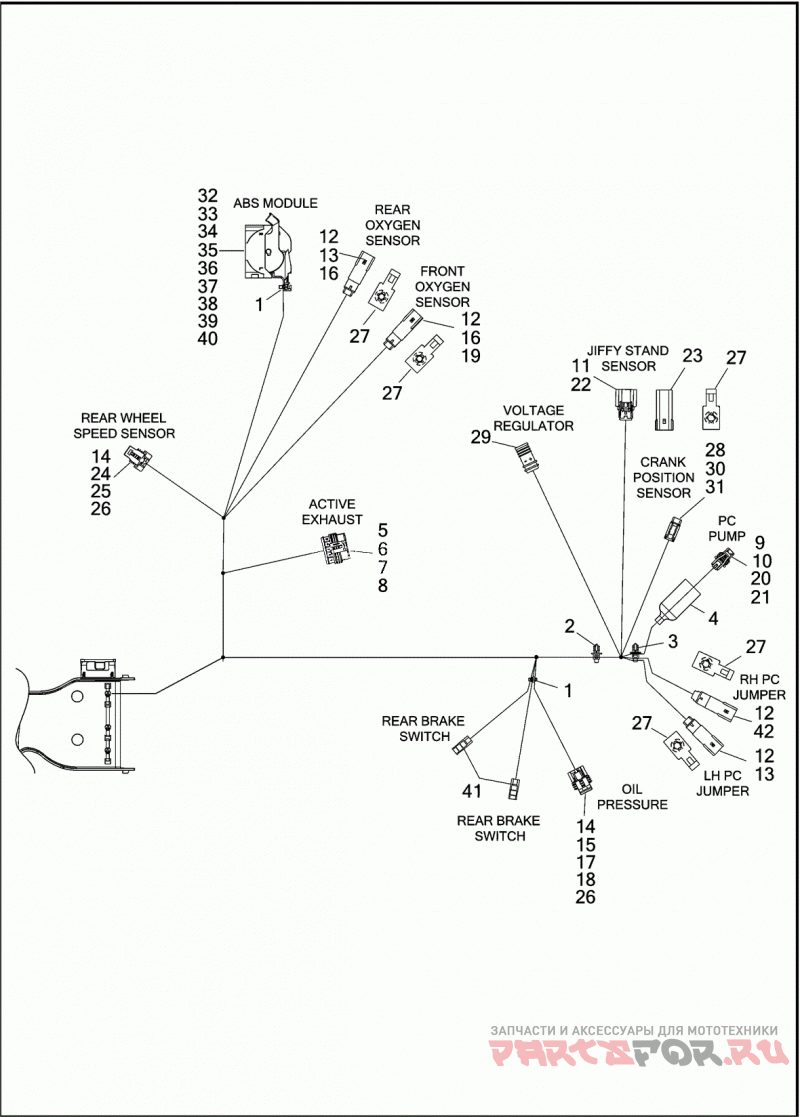

WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU, FLHTCUL TC, FLHTK AND FLHTKL (7 OF 8)

Harley Davidson FLHTCUL 1KDM ULTRA CLASSIC LOW (2016)

Harley Davidson
#oem кодцена
69201318A
MAIN WIRE HARNESS,W/ABS,FLHTCU
1
10065
CABLE STRAP
2
10177
CABLE STRAP ANCHORED
5
72010-05
WIRE SEAL 22-26 AWG (GREEN)
6
72012-07
HOUSING FIVE-WAY SOCKET
7
72014-07
SEAL PIN
8
72024-08
TERMINAL SOCKET, 20-22 AWG
11
72168-07
TERMINAL SOCKET, 18-20 AWG
12
72169-07
TERMINAL PIN, 16-20 AWG
13
72175-07BK
HOUSING FOUR-WAY PIN (BLACK)
14
72213-94
TERMINAL SOCKET, 16-20 AWG
15
72232-96
SEAL PLUG
16
72343-10
TERMINAL PIN, 16-20 AWG (GOLD)
17
72400-99
CONNECTOR FOUR-WAY
18
72403-99
SECONDARY LOCK FOUR-WAY
19
72415-07GY
HOUSING FOUR-WAY PIN (GRAY)
22
72512-07BK
HOUSING THREE-WAY SOCKET (BLACK)
23
72519-09BK
DUST CAP THREE-WAY SOCKET (BLACK)
24
72606-08
HOUSING TWO-WAY SOCKET
25
72609-08
SECONDARY LOCK TWO-WAY SOCKET (BLACK)
26
72610-08
SEAL 18-20 AWG (WHITE)
27
73213-07
RETAINER ANCHORED
28
74112-98BK
HOUSING TWO-WAY SOCKET (BLACK)
29
74120-08
DC LEAD ASSEMBLY
30
74152-98
SECONDARY LOCK TWO-WAY SOCKET
31
74191-98
TERMINAL SOCKET
32
69200183
HOUSING 26-WAY SOCKET
33
69200184
COVER WIRE
34
69200185
TERMINAL SOCKET, 20 AWG
35
69200186
TERMINAL SOCKET, 14-16 AWG
36
69200187
TERMINAL SOCKET, 12 AWG
37
69200188
WIRE SEAL 20 AWG
38
69200189
WIRE SEAL 14-16 AWG
39
69200190
WIRE SEAL 12 AWG
40
69200191
SEAL PIN
41
69200238
TERMINAL 20 AWG (BLACK)
43
11100115
CLOTH, HARNESS WRAP 50 M (NOT SHOWN)
