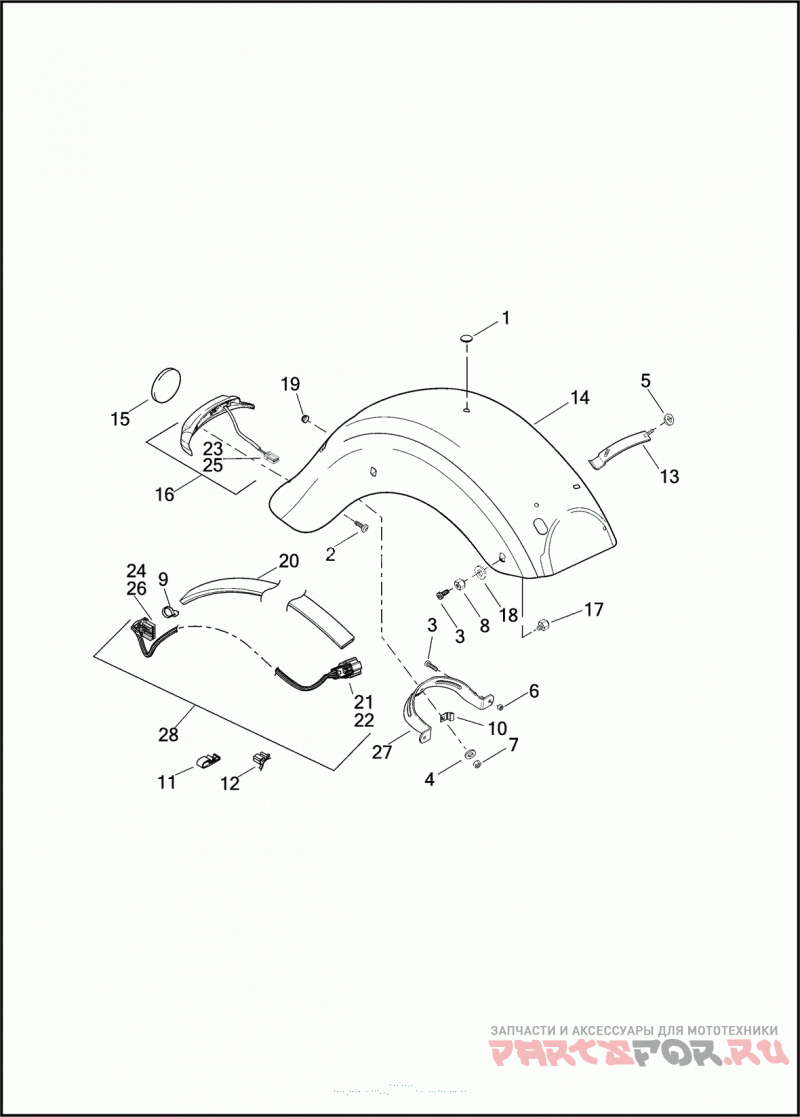

FENDERS, REAR

Harley Davidson FLHP 1FHM ROAD KING POLICE (2016)

Harley Davidson
#oem кодцена
1
761
Заглушка
2
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
3
3684
SCREW 5/16-18 X 1 TORX PAN HD.
4
6703
WASHER 1/4 X 5/8 X 1/16
5
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
6
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
7
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
8
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
9
10006
CABLE STRAP
10
10053
CLAMP (DOMESTIC)
11
10183
CLIP T-STUD (DOMESTIC)
12
10184
CLIP T-STUD
13
59174-99
STUD PLATE
14
59579-09
FENDER REAR (PRIME) (DOMESTIC)
14
58702-09
FENDER REAR (PRIME) (HDI)
15
59581-05
BUMPER REAR FENDER (BLACK) (HDI)
16
59672-09A
LAMP ASSEMBLY FENDER TIP, WITH 73153-96BK AND 73191-96 (DOMESTIC)
17
59786-01
FENDER MOUNTING BOSS INNER
18
59788-01
FENDER MOUNTING WASHER
19
67266-94
BUSHING NYLON, TURN SIGNAL
20
70522-06B
CONDUIT SELF-ADHESIVE
21
72168-07
TERMINAL SOCKET, 18-20 AWG
22
72414-07BK
HOUSING SIX-WAY SOCKET (BLACK)
23
73153-96BK
SOCKET HOUSING THREE-WAY (DOMESTIC) (BLACK)
24
73156-96BK
SOCKET HOUSING SIX-WAY (BLACK)
25
73191-96
TERMINAL SOCKET, 16-20 AWG (DOMESTIC)
26
73191-96
TERMINAL SOCKET, 16-20 AWG
27
91140-09
BRACKET SADDLEBAG TO FENDER SUPPORT
28
69200128
HARNESS REAR LAMPS, WITH 10006, 70522-06B, 72168-07, 72414-07BK, 73156-96BK AND 73191-96
