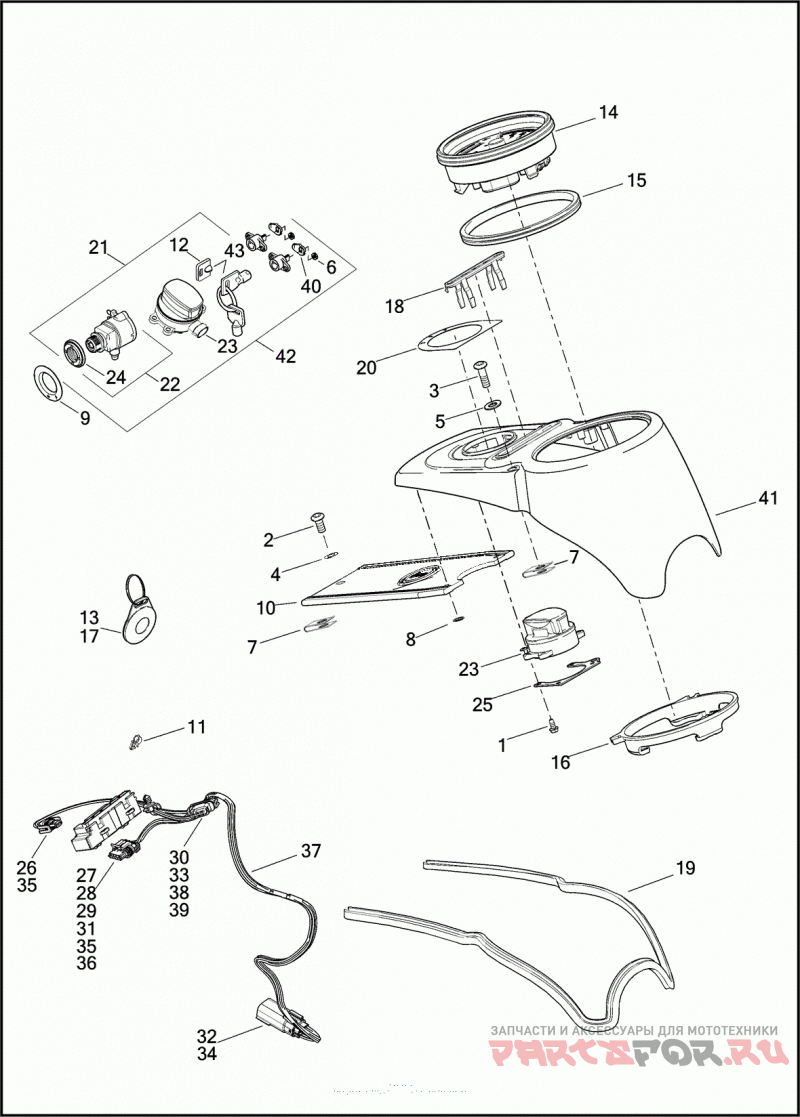

INSTRUMENTS - FLD AND FXDF

Harley Davidson FLD 103 1GZM DYNA SWITCHBACK (2016)

Harley Davidson
#oem кодцена
1
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
2
3540
SCREW 5/16-18 X 5/8 SOCKET BUTTON HD.
3
4654
SCREW BUTTON HEX SOCKET
4
6702
WASHER 5/16 X 11/16 X 1/16
5
6798
WASHER 5/16 X 1/2 X 1/32
6
7586
JAMNUT 9/32-28 X 1/4
7
8173
SPEED NUT
8
8135B
Гайка
9
14130-06B
DECAL FORK LOCK
10
61300038
TRIM LEATHER
11
56073-83
RETAINER WIRE HARNESS
12
61081-92
COVER KEY
13
66373-06
BATTERY 3V CR2032
14
67096-12A
SPEEDOMETER MPH
14
67204-12
SPEEDOMETER KM/H (HDI, ASIA-PACIFIC, AUSTRALIA, BRAZIL, CANADA, INDIA, JAPAN)
14
67242-12
SPEEDOMETER MPH/KM/H (ENGLAND)
15
67190-89
SEAL SPEEDOMETER
16
67341-04B
Зажим
17
68926-07
REMOTE CONTROL FOB WITH 66373-06
18
69538-04A
BEZEL INDICATOR
19
71279-04A
TRIM INSTRUMENT PANEL
20
71304-04
NAME PLATE IGNITION SWITCH
22
71475-06B
FORK LOCK KIT (SPECIFY KEY NUMBER)
23
71517-11
IGNITION SWITCH (SPECIFY KEY NUMBER)
24
71555-06
NUT IGNITION SWITCH FACE
26
72062-06
HOUSING TWO-WAY SOCKET
27
72066-06A
HOUSING FOUR-WAY SOCKET (BLACK)
28
72094-06
TERMINAL 18 AWG SOCKET
29
72096-06
WIRE SEAL 18-20 AWG (YELLOW)
30
72130-04
HOUSING 12-WAY SOCKET (BLACK)
31
72135-06
SECONDARY LOCK FOUR-WAY SOCKET (GRAY)
32
72169-07
TERMINAL PIN, 16-20 AWG
33
72189-04
SEAL PIN
34
72478-07BK
HOUSING SEVEN-WAY PIN (BLACK)
35
72484-08
TERMINAL SOCKET, 20 AWG
36
72486-08
Провода Печать
37
72667-12
INSTRUMENT HARNESS
38
74196-04
TERMINAL SOCKET, 20 AWG
39
74197-04
SECONDARY LOCK 12-WAY SOCKET
40
90682-93
SADDLEBAG CAM
41
70900053
INSTRUMENT CONSOLE WITH 71279-04A (CHROME)
42
90300020
LOCK SET WITH 90300043 KEYS, IGNITION SWITCH, SADDLEBAG LOCKS AND FORK LOCK
