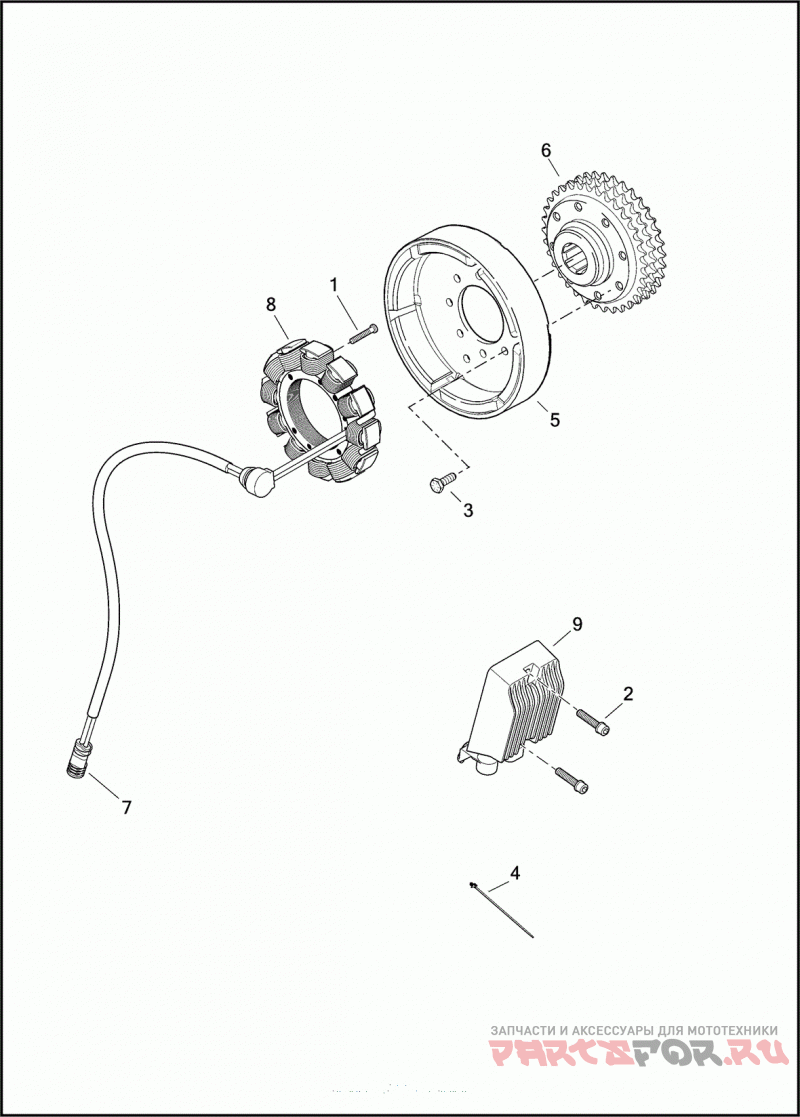

ALTERNATOR & REGULATOR
Harley Davidson XL883L 4CR2 SUPERLOW (2015)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3029 SCREW NO. 10-24 X 1 TORX HD., W/ADHESIVE | SCREW NO. 10-24 X 1 TORX HD., W/ADHESIVE | |
2 | 4740A SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8) | SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8) | |
3 | 4751 SCREW 1/4-20 X 3/4 HEX HD., W/LOCKPATCH (GRADE 8) (ZINC) | SCREW 1/4-20 X 3/4 HEX HD., W/LOCKPATCH (GRADE 8) (ZINC) | |
4 | 10177 Ремень | Ремень | |
5 | 32493-02B ROTOR SPROCKET ASSEMBLY W/ 4751 & 40241-02A | ROTOR SPROCKET ASSEMBLY W/ 4751 & 40241-02A | |
6 | 40241-02A SPROCKET 34T | SPROCKET 34T | |
7 | 72195-94 SEAL PIN, 4-WAY | SEAL PIN, 4-WAY | |
8 | 29900068 KIT,CHRG,STATOR | KIT,CHRG,STATOR | |
9 | 74700012 Регулятор | Регулятор |
