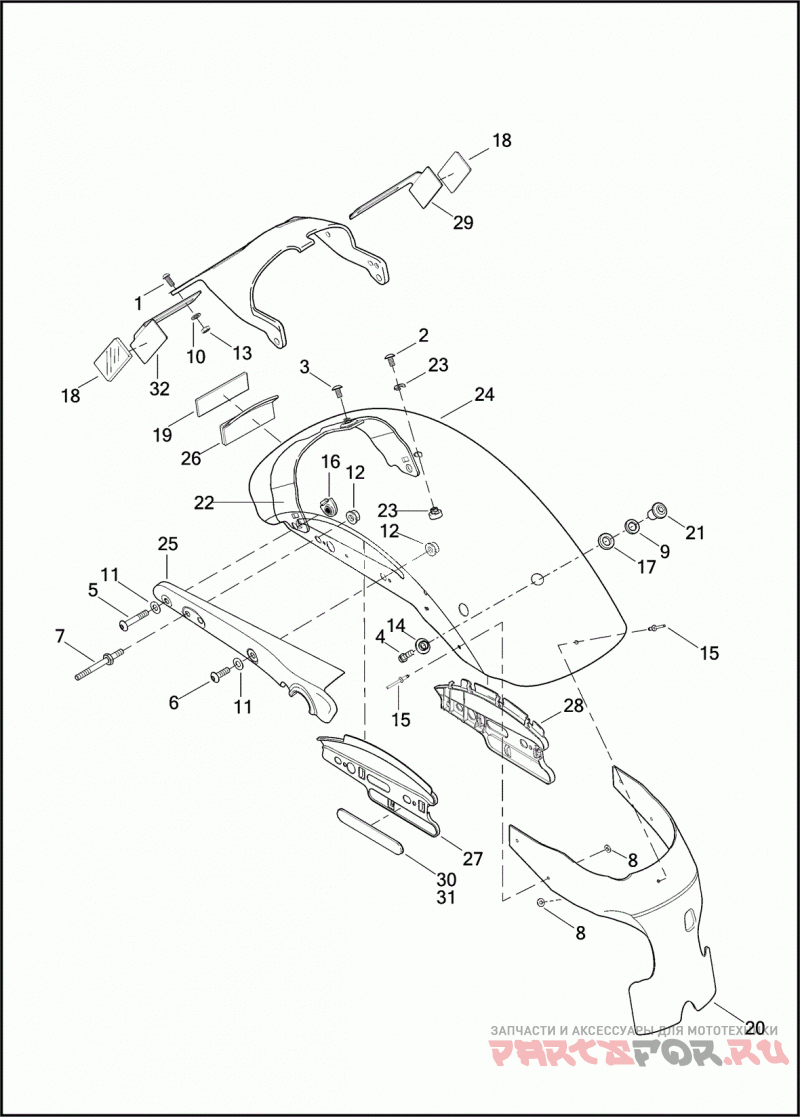

FENDERS, REAR - 883N/1200V/X (ALL EXCEPT CANADA)

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2015)

Harley Davidson
#oem кодцена
1
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
2
2952A
SCREW 1/4-20 X 1/2 SEMS TRUSS HD.
3
3085
SCREW 1/4-20 X 1/2 W/WASHER
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
4778
SCREW 5/16-18 X 1-3/8 TORX BUTTON HD.
6
4779
SCREW 5/16-18 X 1-3/4 TORX BUTTON HD.
7
5531
Винт
8
6029
WASHER 5/32 X 3/8 X 1/32
9
6702
WASHER 5/16 X 11/16 X 1/16
10
6703
WASHER 1/4 X 5/8 X 1/16
11
6798
WASHER 5/16 X 1/2 X 1/32
12
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
13
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
14
7882
TEE SPACER
15
8692
заклёпка
16
10323
CLIP THREADED
17
11474
Уплотнитель резиновый
18
59256-84A
REFLECTOR (AMBER) (HDI)
19
59359-06
REFLECTOR (RED)
20
59502-04B
REAR FENDER EXTENSION
21
59723-04
SEAT POST
22
59727-07
FENDER SUPPORT
23
59768-97
FENDER SEAT NUT KIT
24
59865-10
FENDER REAR (PRIME)
25
60203-06
COVER REAR FENDER SUPPORT - RIGHT (VIVID BLACK)
25
60204-06
COVER REAR FENDER SUPPORT - LEFT (VIVID BLACK) (NOT SHOWN)
26
68724-07
MOUNTING BLOCK W/ TAPE
27
68704-07
BRACKET REFLECTOR MOUNT RIGHT
28
68857-07
BRACKET REFLECTOR MOUNT LEFT (HDI)
29
68966-08
BRACKET REFLECTOR, LEFT (HDI)
30
69490-07
REFLECTOR (RED)
31
69498-08
COVER SIDE REFLECTOR (HDI)
32
68992-08
BRACKET REFLECTOR, RIGHT (HDI)
