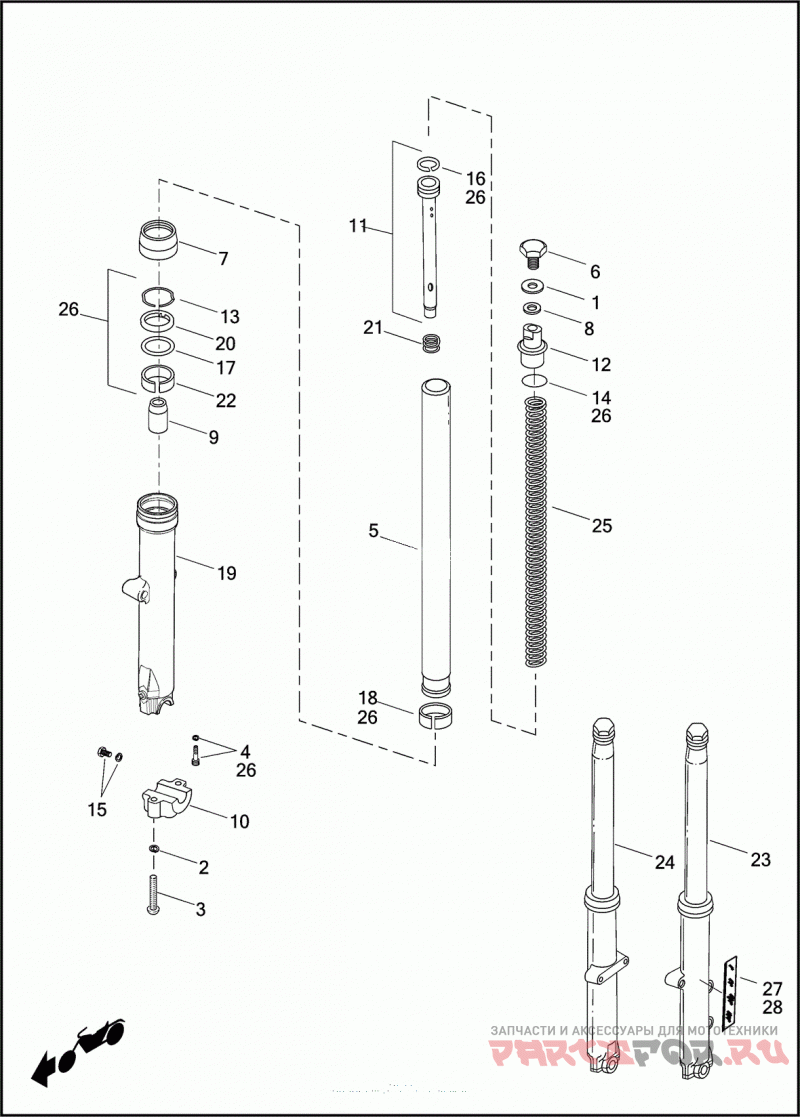

FORK, FRONT - FXST

Harley Davidson FXST 1BVV SOFTAIL STANDARD (2015)

Harley Davidson
#oem кодцена
1
5710
WASHER 63/64 X 1-1/2 X 5/64
2
7062
LOCKWASHER M8.4 X 13 X 1.2
3
4042
SCREW M8 X 1.25 X 35 HEX BUTTON HD.
4
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
5
45417-00
SLIDER TUBE W/ 45866-84
6
45419-80
CAP SLIDER TUBE
7
45420-80
CASE COVER
8
45733-48
OIL SEAL FORK TUBE PLUG
9
45803-97
OIL LOCK STOP
10
45835-00
AXLE CAP RIGHT SLIDER
11
45836-07
DAMPER TUBE W/ 45859-77A
12
45838-77
PLUG FORK TUBE
13
45842-77A
Стопорное кольцо
14
45845-77
Уплотнительное кольцо
15
45858-77
DRAIN SCREW W/ WASHER
16
45859-77A
DAMPER TUBE RING
17
45865-84
SLIDER WASHER
18
45866-84
BUSHING SLIDER
19
45873-07A
SLIDER ASSEMBLY LEFT
19
45874-08A
SLIDER ASSEMBLY RIGHT
20
45875-84A
Сальник
21
45933-86
SPRING REBOUND
22
45940-84
SLIDER BUSHING
23
46004-07A
FORK SLIDER & TUBE ASSEMBLY LEFT
24
46006-08A
FORK SLIDER & TUBE ASSEMBLY RIGHT
25
46048-00
Пружина
26
49377-09A
FORK REBUILD KIT
27
60253-07
BRACKET ASSEMBLY REFLECTOR
28
60254-07
REFLECTOR AMBER
