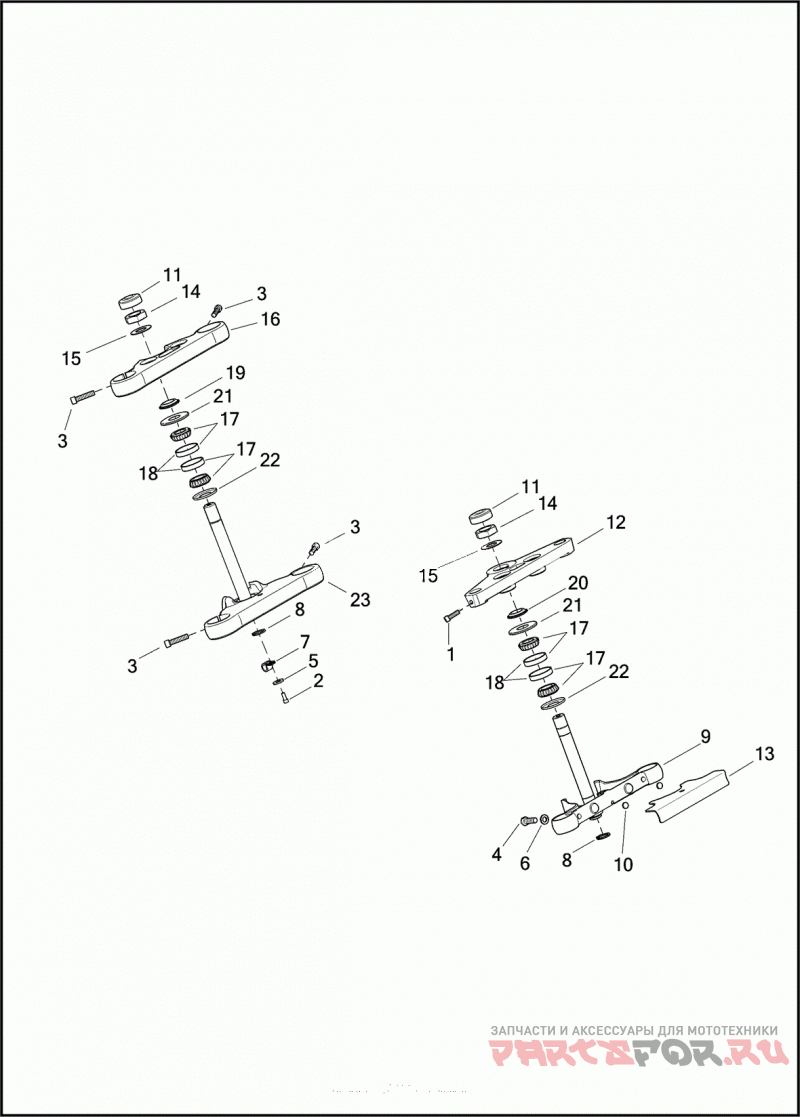

FORK BRACKETS, FRONT - FXSB & FXST

Harley Davidson FXSB 1BF5 SOFTAIL BREAKOUT (2015)

FORK BRACKETS, FRONT - FXSB & FXST

#

oem код

название

цена

2

SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)

SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)

3

SCREW 3/8-16 X 1-5/8 SOCKET HD.

SCREW 3/8-16 X 1-5/8 SOCKET HD.

5

WASHER 1/4 X 5/8 X 1/16

WASHER 1/4 X 5/8 X 1/16

7

Зажим

Зажим

8

RETAINING RING FORK STEM

RETAINING RING FORK STEM

11

CAP FORK STEM

CAP FORK STEM

14

NUT 1-24 X 1.5 X 0.47

NUT 1-24 X 1.5 X 0.47

15

WASHER 1-1/32 X 2.0 X 1/16

WASHER 1-1/32 X 2.0 X 1/16

16

BRACKET UPPER

BRACKET UPPER

17

ROLLER BEARING W/ CUP

ROLLER BEARING W/ CUP

18

BEARING CUP

BEARING CUP

19

Гайка

Гайка

21

DUST SHIELD BEARING, UPPER

DUST SHIELD BEARING, UPPER

22

DUST SHIELD BEARING, LOWER

DUST SHIELD BEARING, LOWER

23

BRACKET ASSEMBLY W/ 45611-86 & 48365-48A

BRACKET ASSEMBLY W/ 45611-86 & 48365-48A
