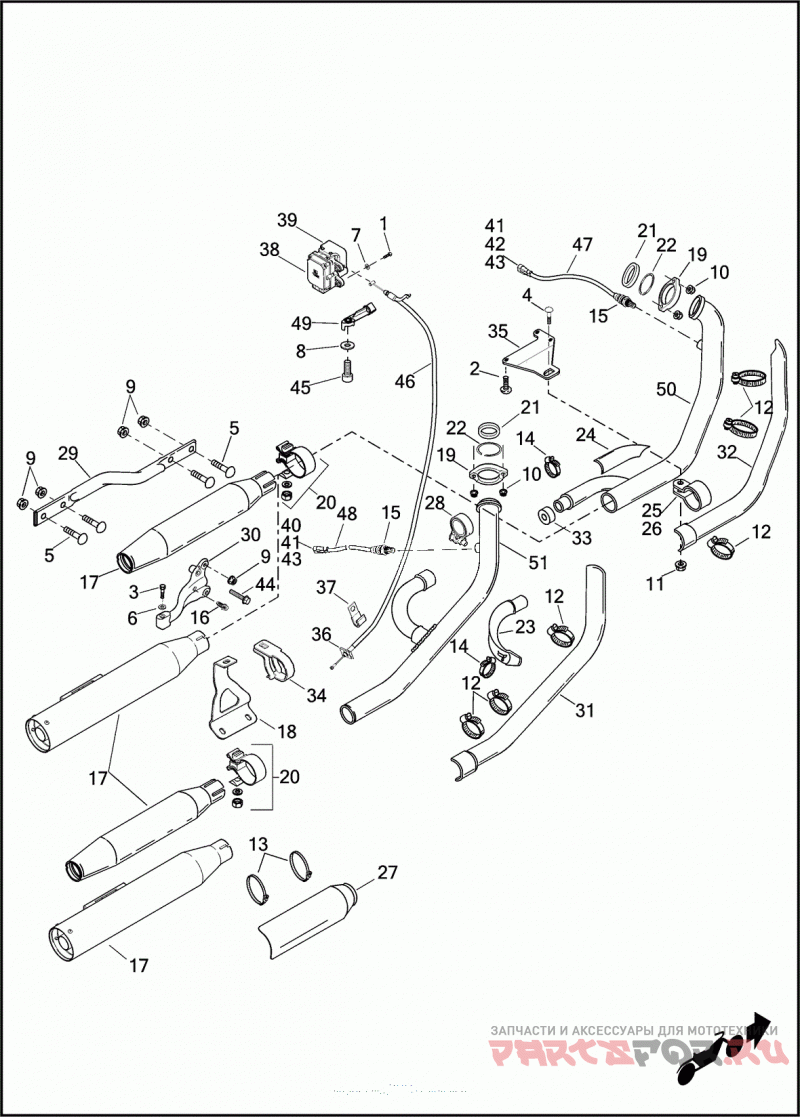

EXHAUST SYSTEM - FXDB, FXDBP & FXDBB

Harley Davidson FXDBB 1VC4 DYNA STREET BOB (H-D1) (2015)

Harley Davidson
#oem кодцена
3
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
4
5414
BOLT 3/8-16 X 7/8 CARRIAGE (GRADE 5)
5
5445W
BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)
6
6701
WASHER 3/8 X 13/16 X 1/16
9
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
10
7593
NUT 5/16-24 FLANGE
11
7601
LOCKNUT 3/8-16 FLANGE
12
9955
Зажим
13
10074
Зажим
14
10119
Зажим
15
11936
GASKET OXYGEN SENSOR
17
65868-07
MUFFLER ASSEMBLY (FRONT AND REAR) (ASIA-PACIFIC, JAPAN, BRAZIL)
19
65184-02
FLANGE PIPE
20
65296-95A
CLAMP W/NUT AND WASHER
21
65324-83B
GASKET EXHAUST
22
65325-83A
RETAINING RING EXHAUST GASKET
23
65376-95A
SHIELD CROSSOVER - REAR (BLACK)
24
65379-95
SHIELD CROSSOVER - FRONT (BLACK)
25
65440-06
CLAMP BRACKET UPPER PIPE
26
65441-06
CLAMP BRACKET LOWER PIPE
27
65463-00
SHIELD MUFFLER
28
65521-10
KIT-CLAMP INTERCONNECT, W/ 65830-10
29
65674-95
SUPPORT MUFFLER
30
65696-08B
BRACKET REAR EXHAUST
31
65701-06A
SHIELD REAR EXHAUST (CHROME)
32
65746-06
SHIELD FRONT EXHAUST (CHROME)
32
65966-06
SHIELD FRONT EXHAUST (CHROME) (FORWARD CONTROL)
33
65830-10
GASKET INTERCONNECT
40
72177-07BK
HOUSING 4-WAY SOCKET (BLACK)
41
72344-10
TERMINAL SOCKET #22 AWG (GOLD)
42
72444-07GY
HOUSING 4-WAY SOCKET (GRAY)
43
73307-10
TERMINAL SOCKET #22 AWG
44
10200016
SCREW 5/16-18 X 2 HEX FLANGE HD.
47
32700005
OXYGEN SENSOR FRONT, W/ 11936, 72344-10, 72444-07GY & 73307-10
48
32700006
OXYGEN SENSOR REAR, W/ 11936, 72177-07BK, 72344-10 & 73307-10
50
65600007
EXHAUST PIPE FRONT
51
65600008
EXHAUST PIPE REAR (ASIA-PACIFIC, JAPAN)
